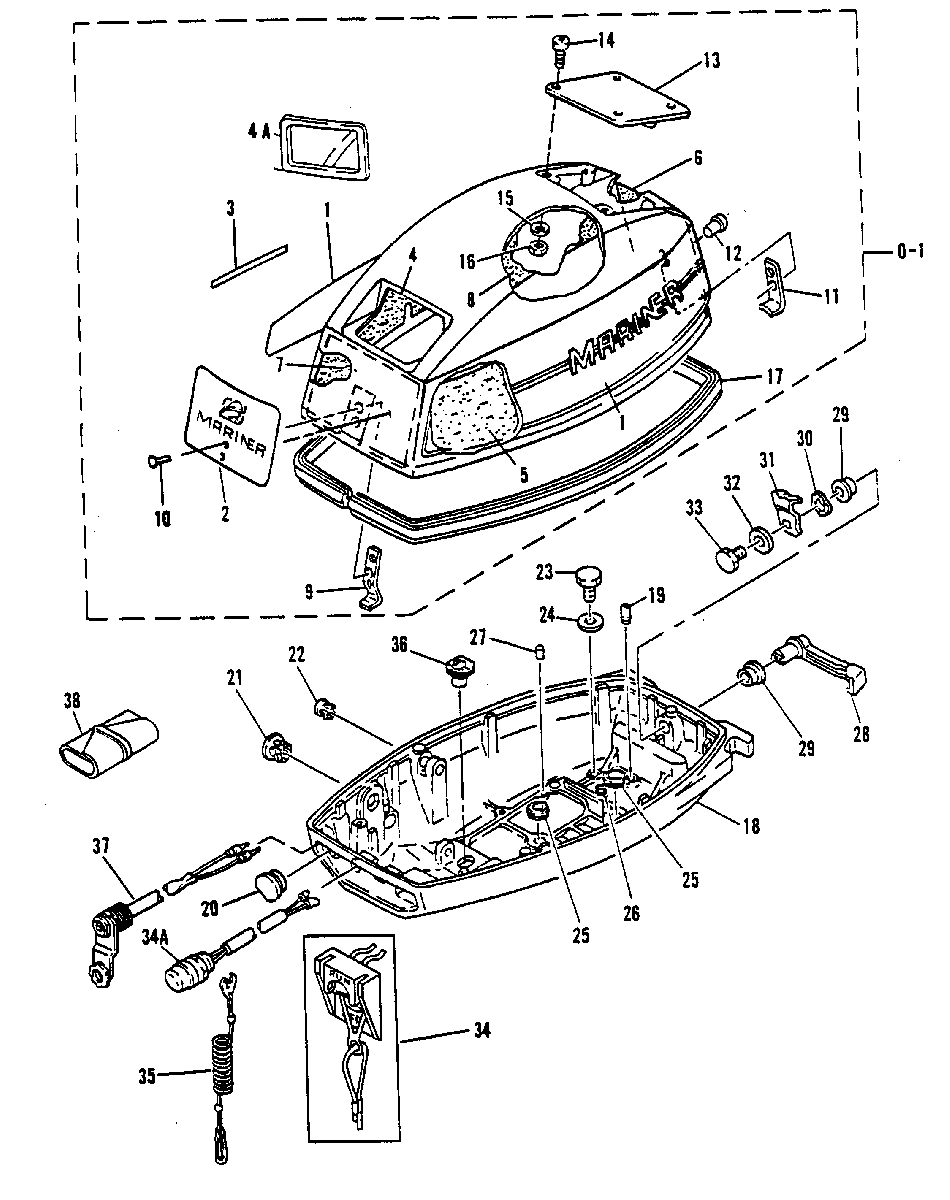

COWLING для Mariner - 9.9C 682-552316 AND UP
-
№АртикулНазвание
-
0-12168-9344M TOP COWLING ASSEMBLYTOP COWLING ASSEMBLY
-
137-11926M SIDE DECAL SETSIDE DECAL SET
-
237-11928M FRONT EMBLEMFRONT EMBLEM
-
337-81202M SHIFT DECALSHIFT DECAL
-
4A83982M SEAL (OLD DESIGN COWL)SEAL (OLD DESIGN COWL)
-
4/583125M SIDE SOUND BLANKET DESIGN ISIDE SOUND BLANKET DESIGN I
-
684321M BACK SOUND BLANKET DESIGN IBACK SOUND BLANKET DESIGN I
-
7/884323M FRONT/TOP SOUND BLANKET DESIGN IFRONT/TOP SOUND BLANKET DESIGN I
-
994538M HOOKHOOK
-
1017-83140M RIVETRIVET
-
1183985M HOOKHOOK
-
1217-814489M RIVETRIVET
-
1394539M AIR DUCT MOLDING DESIGN IIAIR DUCT MOLDING DESIGN II
-
1410-94540M SCREW DESIGN IISCREW DESIGN II
-
1512-17658M WASHER DESIGN IIWASHER DESIGN II
-
1611-94541M NUT DESIGN IINUT DESIGN II
-
1783983M SEALSEAL
-
182168-9346M BOTTOM COWLBOTTOM COWL
-
1922-94716M FITTINGFITTING
-
2025-83988M GROMMET (MANUAL)GROMMET (MANUAL)
-
2125-18927M GROMMET (MANUAL)GROMMET (MANUAL)
-
2225-83990M GROMMETGROMMET
-
2310-84058M BOLTBOLT
-
2412-82214M WASHERWASHER
-
2525-96595M SEALSEAL
-
2625-94542M SEALSEAL
-
2717-82364M DOWEL PINDOWEL PIN
-
2883991M LEVERLEVER
-
2923-81949M BUSHINGBUSHING
-
3013-81869M WAVE WASHERWAVE WASHER
-
3195463M CLAMP (SEE NOTE #1)CLAMP (SEE NOTE #1)
-
3183992M CLAMP (SEE NOTE #2)CLAMP (SEE NOTE #2)
-
3212-81794M WASHERWASHER
-
3310-84088M BOLTBOLT
-
3487-14222M LANYARD IGNITION SWITCH (DESIGN II)LANYARD IGNITION SWITCH (DESIGN II)
-
34A87-93102M STOP SWITCH (1 RING/1 MALE TERMINAL)STOP SWITCH (1 RING/1 MALE TERMINAL)
-
34A87-91622M STOP SWITCH (2 MALE TERMINALS) (SEE NOTE #3)STOP SWITCH (2 MALE TERMINALS) (SEE NOTE #3)
-
3597756M STOPPERSTOPPER
-
3625-96596M GROMMETGROMMET
-
3784-99051M EXTENSIONEXTENSION
-
3891-803581 TOOL KITTOOL KIT
