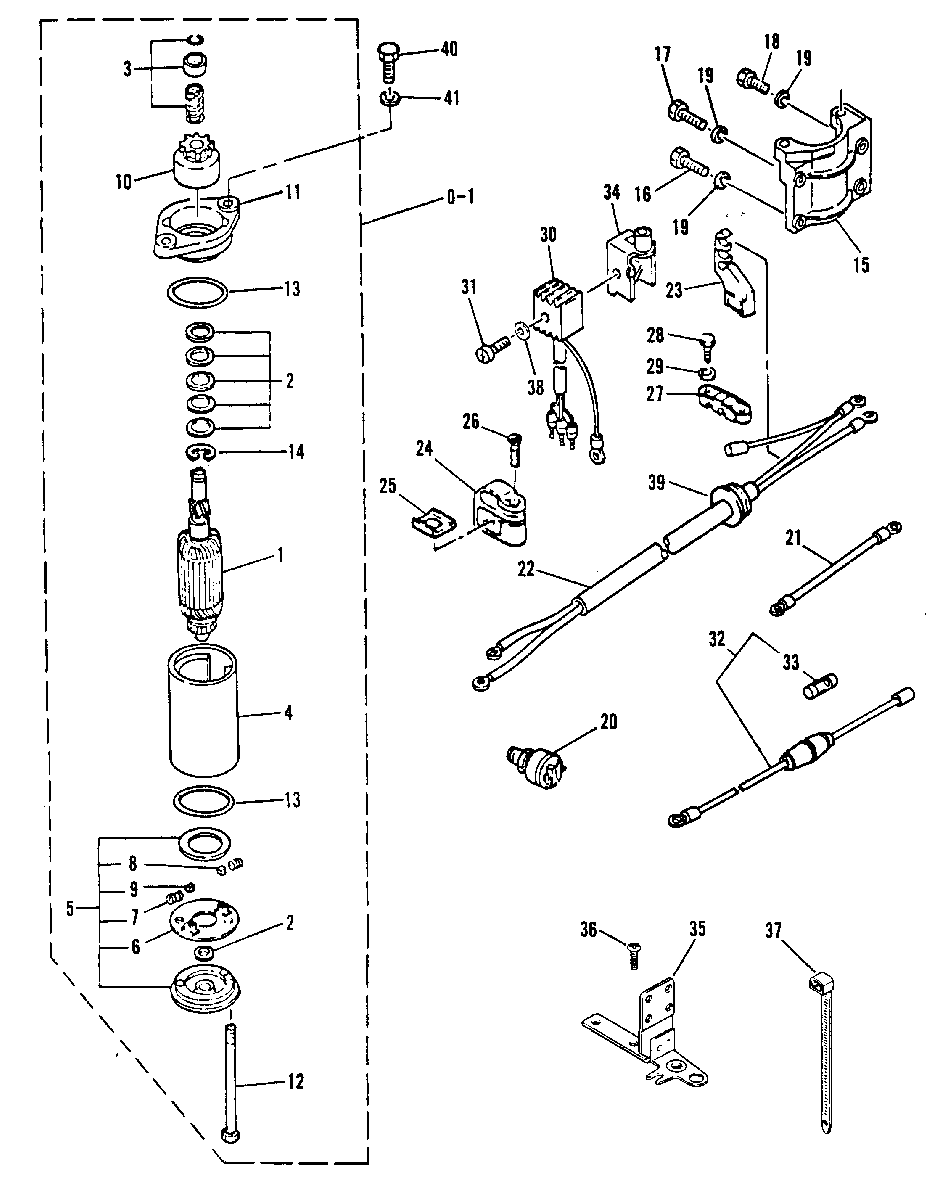

ELECTRIC START для Mariner - 9.9C 682-552316 AND UP
-
№АртикулНазвание
-
0-150-98982M STARTER MOTORSTARTER MOTOR
-
184330M ARMATUREARMATURE
-
212-84331M WASHER KITWASHER KIT
-
384332M PINION STOPPER SETPINION STOPPER SET
-
498983M FIELD (682-81800-11/OR -12 ONLY)FIELD (682-81800-11/OR -12 ONLY)
-
4NLA FIELD (ALL OTHERS)FIELD (ALL OTHERS)
-
584334M COVER ASSEMBLYCOVER ASSEMBLY
-
684335M BRUSH HOLDERBRUSH HOLDER
-
724-84336M SPRINGSPRING
-
884337M BRUSH (+)BRUSH (+)
-
984338M BRUSH (-)BRUSH (-)
-
1043-84339M PINION GEARPINION GEAR
-
1184340M COVERCOVER
-
1210-84341M THRU BOLTTHRU BOLT
-
1325-14258M O-RING NEW DESIGNO-RING NEW DESIGN
-
1453-14752M SNAP RING NEW DESIGNSNAP RING NEW DESIGN
-
1514215M BRACKET (SEE NOTE #3)BRACKET (SEE NOTE #3)
-
1584095M BRACKET (SEE NOTE #4)BRACKET (SEE NOTE #4)
-
1610-84058M BOLTBOLT
-
1710-83285M BOLTBOLT
-
1810-82405M BOLT (SEE NOTE #3)BOLT (SEE NOTE #3)
-
1810-84058M BOLT (SEE NOTE #4)BOLT (SEE NOTE #4)
-
1912-82214M WASHERWASHER
-
2087-84096M STARTER SWITCHSTARTER SWITCH
-
2184-98985M LEAD WIRELEAD WIRE
-
2284-18932M HARNESS (SEE NOTE #1)HARNESS (SEE NOTE #1)
-
2284-18932M HARNESS (SEE NOTE #2)HARNESS (SEE NOTE #2)
-
2398987M RETAINERRETAINER
-
2499062M RETAINERRETAINER
-
2584708M PLATEPLATE
-
2610-84709M SCREWSCREW
-
2754-41876M CLAMPCLAMP
-
2810-826957M BOLTBOLT
-
2912-82214M WASHERWASHER
-
308M0091976 RECTIFIERRECTIFIER
-
3110-83108M SCREWSCREW
-
3298988M FUSE HOLDERFUSE HOLDER
-
3388-81522M FUSE (12V-20A)FUSE (12V-20A)
-
34811998M BRACKET (SEE NOTE #1)BRACKET (SEE NOTE #1)
-
3484091M BRACKET (SEE NOTE #2)BRACKET (SEE NOTE #2)
-
3594798M BRACKETBRACKET
-
3610-14232M SCREWSCREW
-
3725-82060M STA-STRAPSTA-STRAP
-
3812-82211M WASHERWASHER
-
3925-84092M GROMMETGROMMET
-
4010-84342M BOLTBOLT
-
4112-82217M WASHERWASHER
