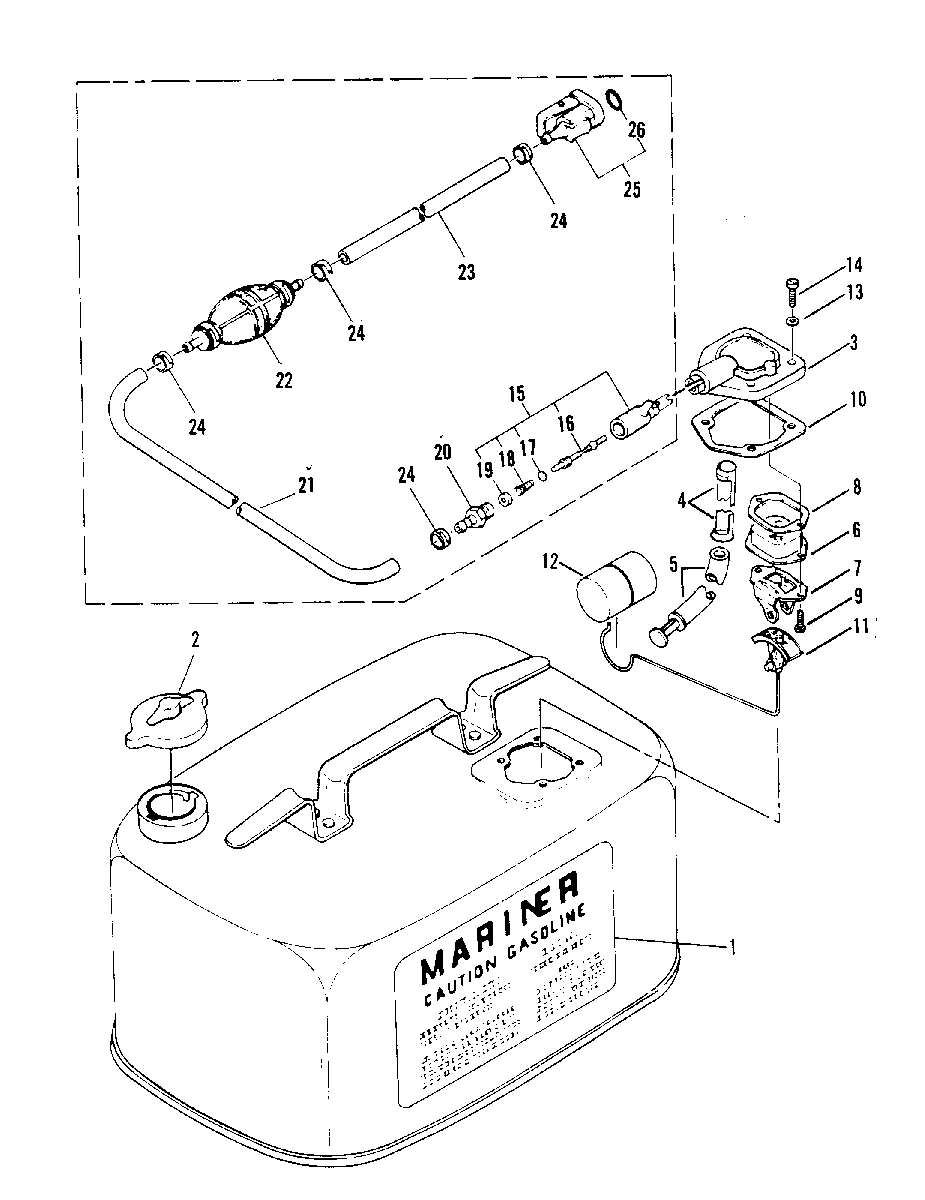

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - 9.9C 682-552316 AND UP
-
№АртикулНазвание
-
137-82984M DECAL, SIDEDECAL, SIDE
-
236-18962M FUEL TANK CAPFUEL TANK CAP
-
383618M FUEL METER ASSEMBLYFUEL METER ASSEMBLY
-
454-83764M CLAMPCLAMP
-
532-94727M HOSEHOSE
-
6NLA LENS (SERVICE BULLETIN 84-1)LENS (SERVICE BULLETIN 84-1)
-
780268M BRACKETBRACKET
-
827-17540M GASKETGASKET
-
910-83523M SCREWSCREW
-
1027-81320M GASKETGASKET
-
1181318M INDICATORINDICATOR
-
1281319M FLOATFLOAT
-
1312-95501M WASHERWASHER
-
1410-82496M SCREWSCREW
-
-32-877681Q8 FUEL LINE ASSY. (5/16" - 8MM - I.D. HOSE)FUEL LINE ASSY. (5/16" - 8MM - I.D. HOSE)
-
1530185Q3 BAYONET BODY ASSEMBLYBAYONET BODY ASSEMBLY
-
1630185Q3 STEMSTEM
-
1725-16524 O-RINGO-RING
-
1824-30189 SPRINGSPRING
-
1930188 CAP WASHERCAP WASHER
-
2022-89771Q2 FITTING (5/16" - 8MM - I.D. HOSE)FITTING (5/16" - 8MM - I.D. HOSE)
-
2022-63187 FITTING (1/4" - 6MM - I.D. HOSE)FITTING (1/4" - 6MM - I.D. HOSE)
-
2132-16571M HOSE (5/16" - 8MM - I.D. HOSE)HOSE (5/16" - 8MM - I.D. HOSE)
-
2132-94727M HOSE (1/4" - 6MM - I.D. HOSE)HOSE (1/4" - 6MM - I.D. HOSE)
-
2213330Q07 PRIMER BULB (5/16" - 8MM - I.D. HOSE)PRIMER BULB (5/16" - 8MM - I.D. HOSE)
-
2289396Q01 PRIMER BULB (1/4" - 6MM - I.D. HOSE)PRIMER BULB (1/4" - 6MM - I.D. HOSE)
-
2332-16571M HOSE (5/16" - 8MM - I.D. HOSE)HOSE (5/16" - 8MM - I.D. HOSE)
-
2332-94727M HOSE (1/4" - 6MM - I.D. HOSE)HOSE (1/4" - 6MM - I.D. HOSE)
-
2454-16574M CLAMP (5/16" - 8MM - I.D. HOSE)CLAMP (5/16" - 8MM - I.D. HOSE)
-
2454-16725M CLAMP (1/4" - 6MM - I.D. HOSE)CLAMP (1/4" - 6MM - I.D. HOSE)
-
2522-13563Q3 FUEL CONNECTOR (5/16" - 8MM - I.D. HOSE)FUEL CONNECTOR (5/16" - 8MM - I.D. HOSE)
-
2522-14213Q FUEL CONNECTOR (1/4" - 6MM - I.D. HOSE)FUEL CONNECTOR (1/4" - 6MM - I.D. HOSE)
-
2625-82789M O-RING (1/4" - 6MM - I.D. HOSE)O-RING (1/4" - 6MM - I.D. HOSE)
