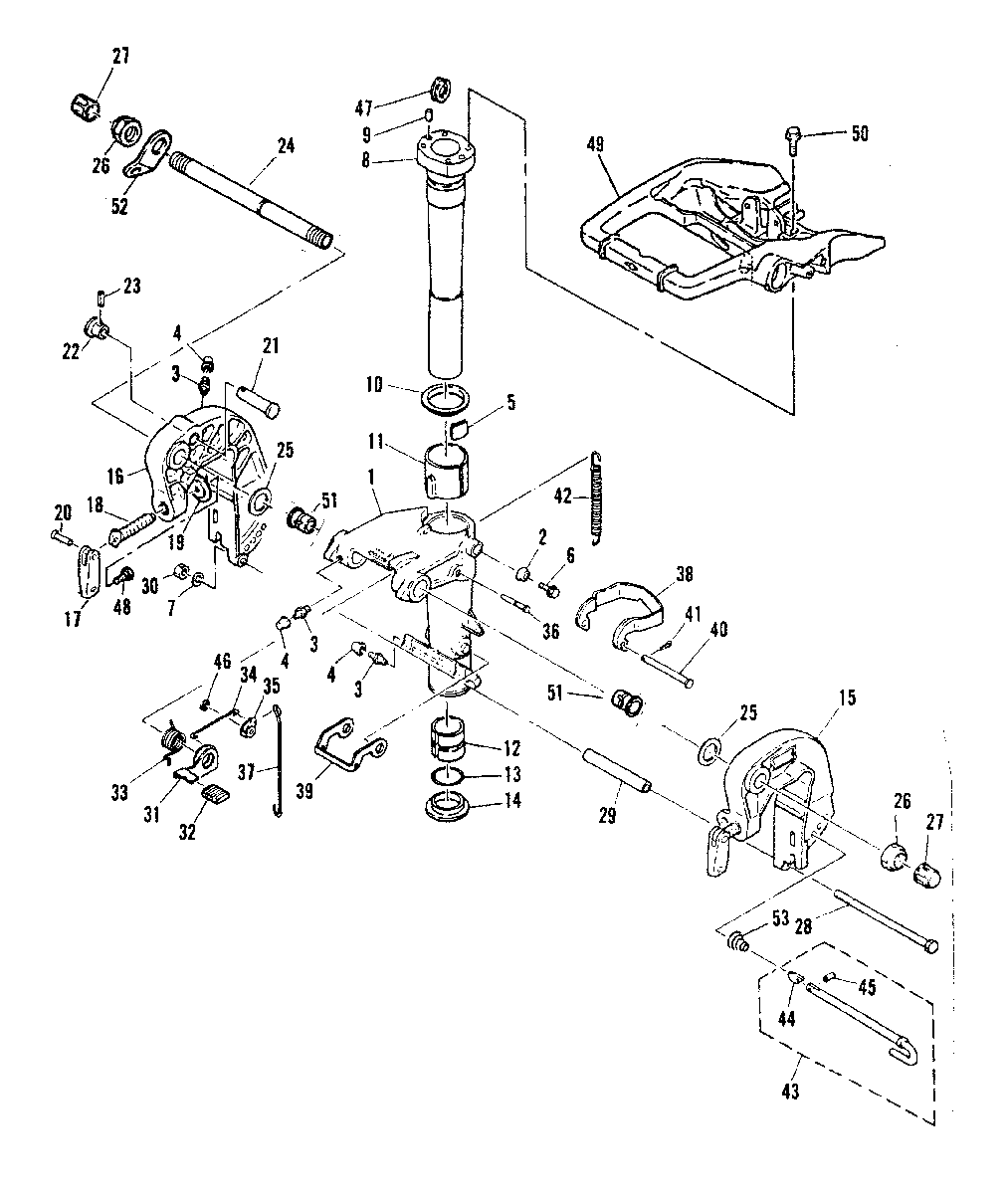

CLAMP AND SWIVEL BRACKET для Mariner - K25 6A4-000101 AND UP (M)
-
№АртикулНазвание
-
2923-19108M SPACER (M-001374 ML-309362 AND ABOVE)SPACER (M-001374 ML-309362 AND ABOVE)
-
2923-19108M SPACER (M-001373 ML-309361 AND BELOW)SPACER (M-001373 ML-309361 AND BELOW)
-
3011-82382M NUTNUT
-
3191640M LOCK/RELEASE LEVERLOCK/RELEASE LEVER
-
3291641M COVERCOVER
-
3324-91642M SPRINGSPRING
-
3491643M LINKLINK
-
3580648M TILT CAMTILT CAM
-
3617-19109M PINPIN
-
3780645M RODROD
-
3884837M HOOKHOOK
-
3980643M HOOKHOOK
-
4017-81882M PINPIN
-
4118-82125M COTTER PINCOTTER PIN
-
4224-19110M SPRINGSPRING
-
4317-94569M TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
4482857M STOPPERSTOPPER
-
4517-82144M ROLL PINROLL PIN
-
4653-82330M SNAP RINGSNAP RING
-
4725-82070M GROMMETGROMMET
-
4810-43097M BOLTBOLT
-
4919113M BRACKET (M-001374 ML-309362 AND ABOVE)BRACKET (M-001374 ML-309362 AND ABOVE)
-
4919113M BRACKET (M-001373 ML-309361 AND BELOW)BRACKET (M-001373 ML-309361 AND BELOW)
-
5010-84830M BOLTBOLT
-
5123-19112M BUSHING M-001374 ML-309362 AND ABOVEBUSHING M-001374 ML-309362 AND ABOVE
-
5219111M PLATEPLATE
-
5324-815007M SPRING (M-001471 ML-310224 AND ABOVE)SPRING (M-001471 ML-310224 AND ABOVE)
