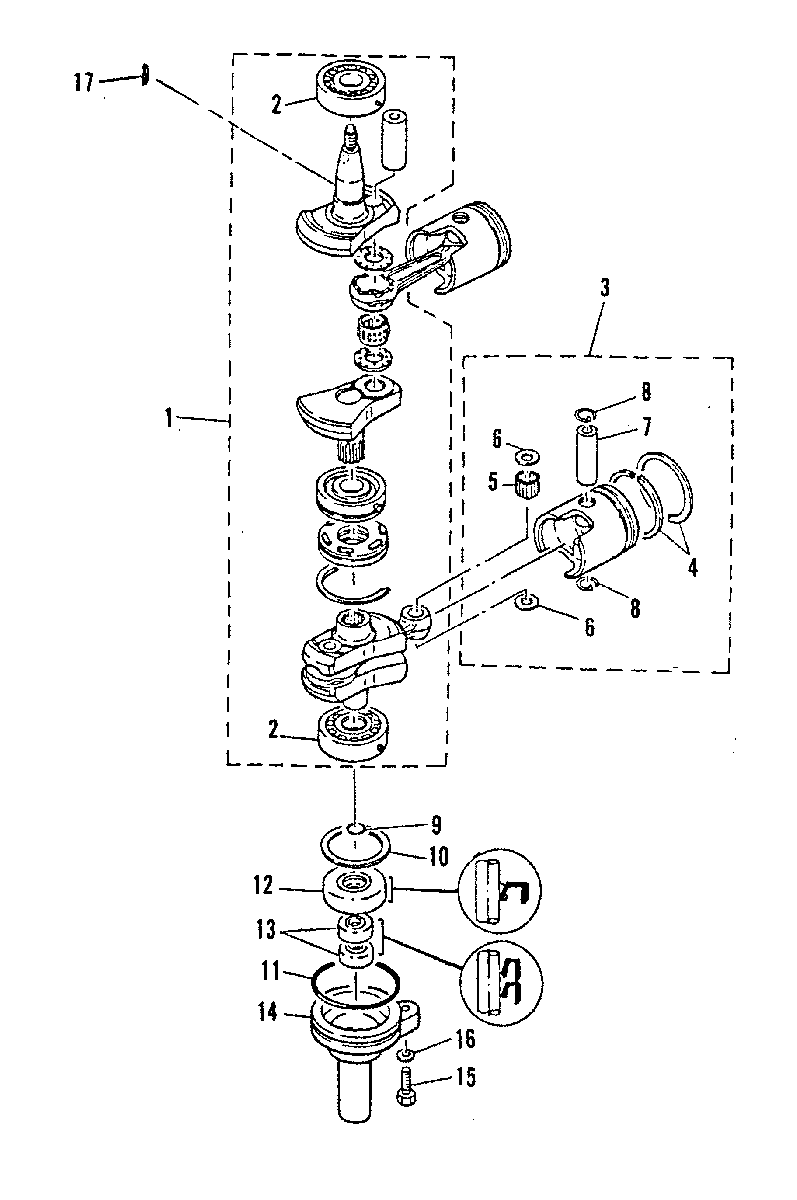

CRANKSHAFT AND PISTON для Mariner - K25 6A4-000101 AND UP (M)

№

Артикул

Название
1

463-9440M CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

0 ₽
2

30-95518T BEARING

BEARING

8 190 ₽
3

761-8375M PISTON STANDARD M-001471 ML-310224 AND ABOVE

PISTON STANDARD M-001471 ML-310224 AND ABOVE

15 700 ₽
4

39-95519T PISTON RING

PISTON RING

3 740 ₽
3

761-8428M PISTON STANDARD M-001470 ML-310223 AND BELOW

PISTON STANDARD M-001470 ML-310223 AND BELOW

0 ₽
4

39-81095T PISTON RING

PISTON RING

3 310 ₽
3

761-8376M PISTON 1ST. O.S. 67.25MM M-001471 ML-310224 AND ABOVE

PISTON 1ST. O.S. 67.25MM M-001471 ML-310224 AND ABOVE

0 ₽
4

39-95520T PISTON RING

PISTON RING

0 ₽
3

761-8429M PISTON 1ST. O.S. 67.25MM M-001470 ML-310223 AND BELOW

PISTON 1ST. O.S. 67.25MM M-001470 ML-310223 AND BELOW

0 ₽
4

39-81096T PISTON RING

PISTON RING

2 440 ₽
3

761-8377M PISTON 2ND. O.S. 67.50MM M-001471 ML-310224 AND ABOVE

PISTON 2ND. O.S. 67.50MM M-001471 ML-310224 AND ABOVE

0 ₽
4

39-95521M PISTON RING

PISTON RING

0 ₽
3

761-8430M PISTON 2ND. O.S. 67.50MM M-001470 ML-310223 AND BELOW

PISTON 2ND. O.S. 67.50MM M-001470 ML-310223 AND BELOW

0 ₽
4

39-81097T PISTON RING

PISTON RING

2 420 ₽
5

29-84452M NEEDLE BEARING

NEEDLE BEARING

320 ₽
6

12-81829M WASHER

WASHER

0 ₽
7

41-80565M PISTON PIN

PISTON PIN

810 ₽
8

53-82345M SNAP RING

SNAP RING

110 ₽
9

25-82267M O-RING

O-RING

180 ₽
10

23-81842M SPACER

SPACER

0 ₽
11

25-84089M O-RING

O-RING

210 ₽
12

26-19133M OIL SEAL (LARGE)

OIL SEAL (LARGE)

1 370 ₽
13

26-19134M OIL SEAL (SMALL) M-001374 ML-309362 AND ABOVE

OIL SEAL (SMALL) M-001374 ML-309362 AND ABOVE

0 ₽
14

19135M HOUSING

HOUSING

0 ₽
13

26-97040M OIL SEAL (SMALL) M001373 ML-309361 AND BELOW

OIL SEAL (SMALL) M001373 ML-309361 AND BELOW

890 ₽
14

19135M HOUSING

HOUSING

0 ₽
15

10-94526M BOLT

BOLT

0 ₽
16

12-82214M WASHER

WASHER

30 ₽
17

28-8M0057164 KEY

KEY

1 130 ₽
