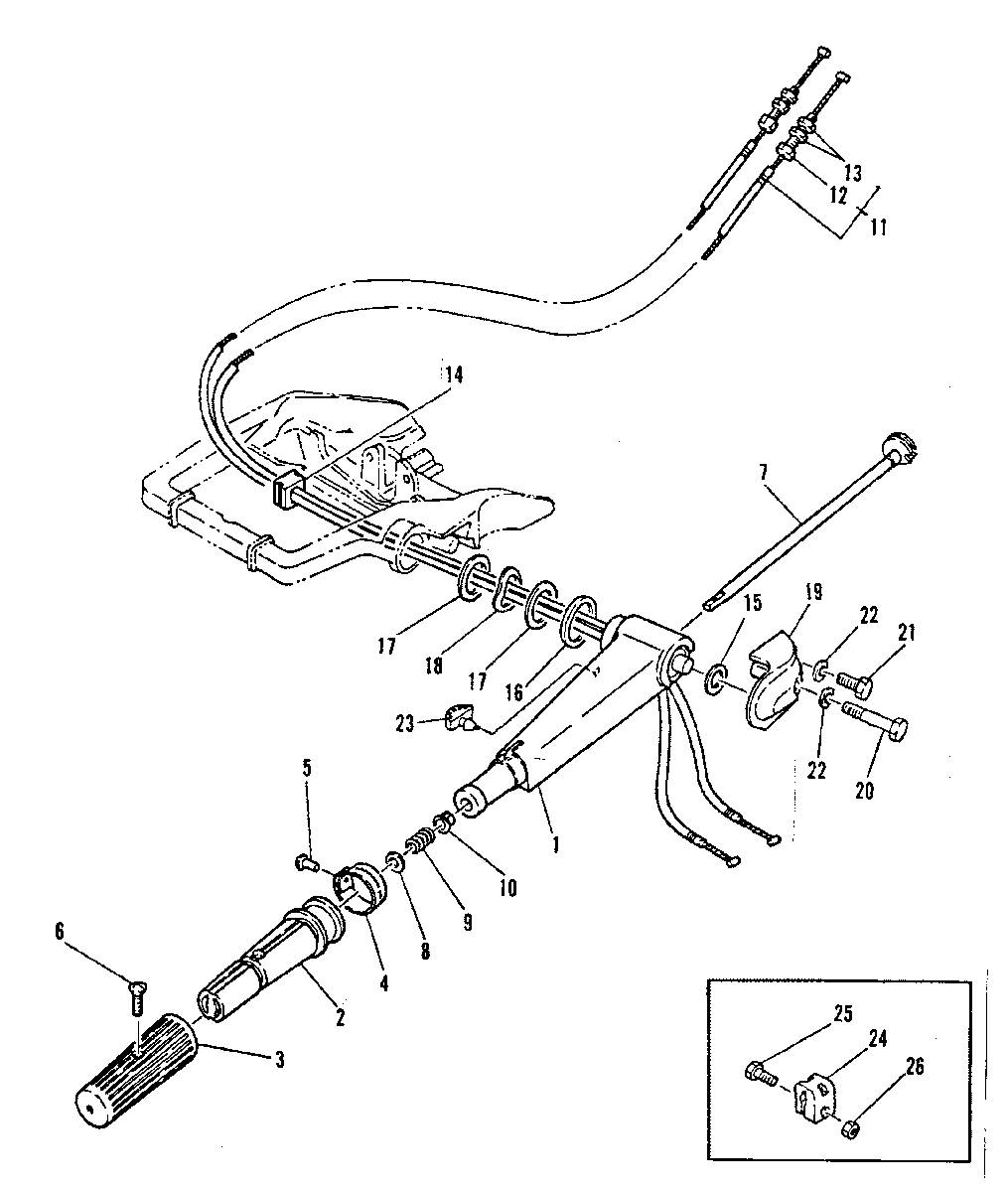

STEERING HANDLE для Mariner - K25 6A4-000101 AND UP (M)
-
№АртикулНазвание
-
97616M STEERING HANDLE ASSEMBLYSTEERING HANDLE ASSEMBLY
-
196664M STEERING HANDLESTEERING HANDLE
-
281585M GRIPGRIP
-
38M0080456 HANDLEHANDLE
-
497617M INDICATORINDICATOR
-
517-81907M RIVETRIVET
-
610-811916M SCREWSCREW
-
797618M THROTTLE LEVERTHROTTLE LEVER
-
812-82220M WASHERWASHER
-
924-82095M SPRINGSPRING
-
1023-81945M BUSHINGBUSHING
-
1113040M THROTTLE CABLE ASSEMBLYTHROTTLE CABLE ASSEMBLY
-
1210-815139M BOLTBOLT
-
1311-81765M NUTNUT
-
1425-82064M GROMMETGROMMET
-
1523-82119M SPACERSPACER
-
1623-81861M WASHERWASHER
-
1712-84850M WASHERWASHER
-
1813-84851M WAVE WASHERWAVE WASHER
-
1984852M STEERING HANDLESTEERING HANDLE
-
2010-84931M BOLTBOLT
-
2110-84058M BOLTBOLT
-
2212-82214M WASHERWASHER
-
2380033M HOLDERHOLDER
-
2482895M FRICTION PIECEFRICTION PIECE
-
2510-84058M BOLTBOLT
-
2611-83056M NUTNUT
