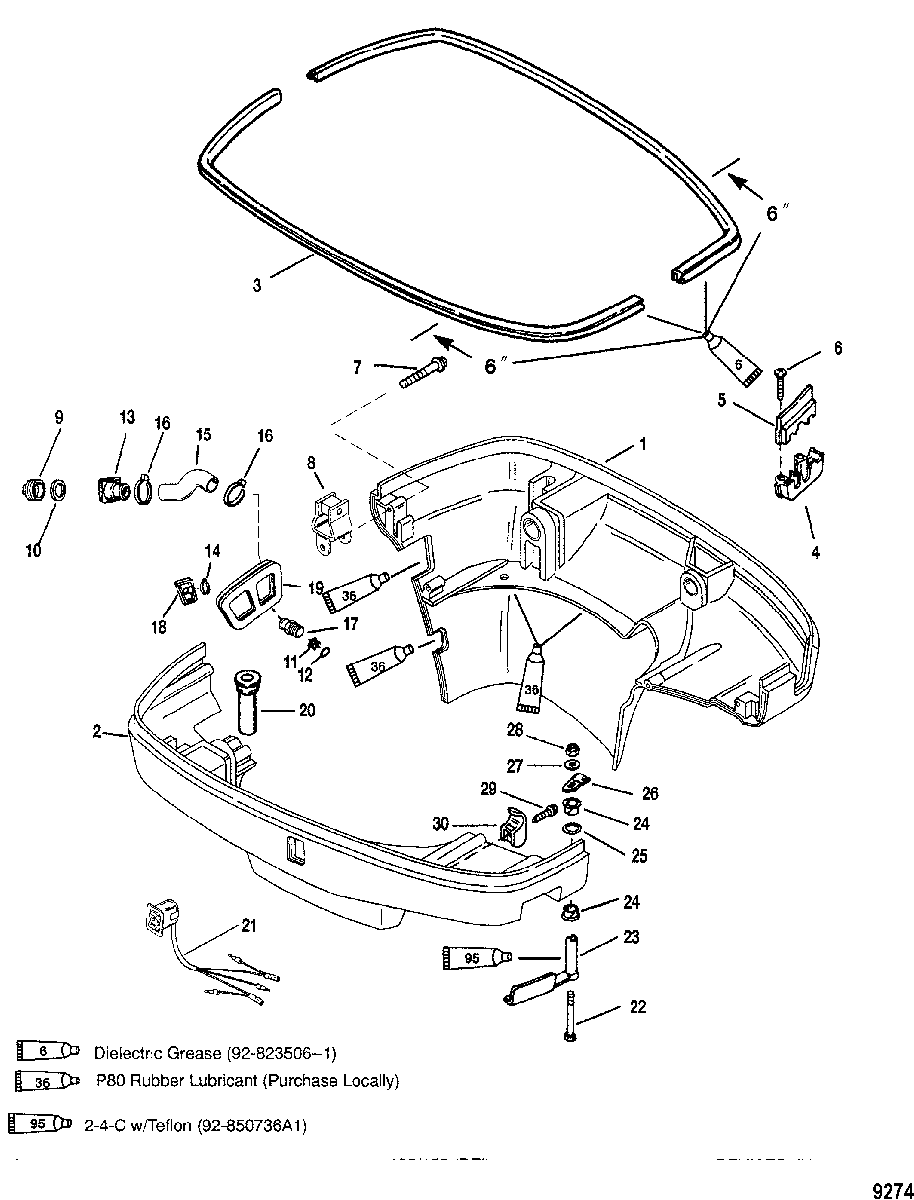

Bottom Cowl для Mariner - V-135 DFI (2.5L) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1100-8M0107321 BOTTOM COWL
(PORT) (BLACK)BOTTOM COWL
(PORT) (BLACK) -
1103-834814A2 BOTTOM COWL
(PORT) (GRAY)BOTTOM COWL
(PORT) (GRAY) -
2100-8M0107322 BOTTOM COWL
(STARBOARD) (BLACK)BOTTOM COWL
(STARBOARD) (BLACK) -
2103-834815A2 BOTTOM COWL
(STARBOARD) (GRAY)BOTTOM COWL
(STARBOARD) (GRAY) -
38M0109217 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
454-822024 CLAMPCLAMP
-
554-822023 CLAMPCLAMP
-
610-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
710-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
8831209 RETAINERRETAINER
-
919-821908 PLUGPLUG
-
1012-821915 WASHERWASHER
-
118219631 CHECK VALVECHECK VALVE
-
1225-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
1322-821952 FITTINGFITTING
-
1454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1532-8M0039077 HOSEHOSE
-
1654-850896 CLAMP, (28.6)CLAMP, (28.6)
-
1722-8320763 FITTINGFITTING
-
1822-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
19889847 IDLE EXHAUST BOOT, ExhaustIDLE EXHAUST BOOT, Exhaust
-
2021-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
2187-8M0042301 SWITCHSWITCH
-
2210-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
23889740A02 FRONT HANDLE, Black
(BLACK)FRONT HANDLE, Black
(BLACK) -
23889740A02 FRONT HANDLE
(GRAY)FRONT HANDLE
(GRAY) -
2423-335891 BUSHINGBUSHING
-
2525-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
268219423 PAWLPAWL
-
2712-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
2811-401196 NUT, (M6)NUT, (M6)
-
2910-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
3054-822873 CLIPCLIP
