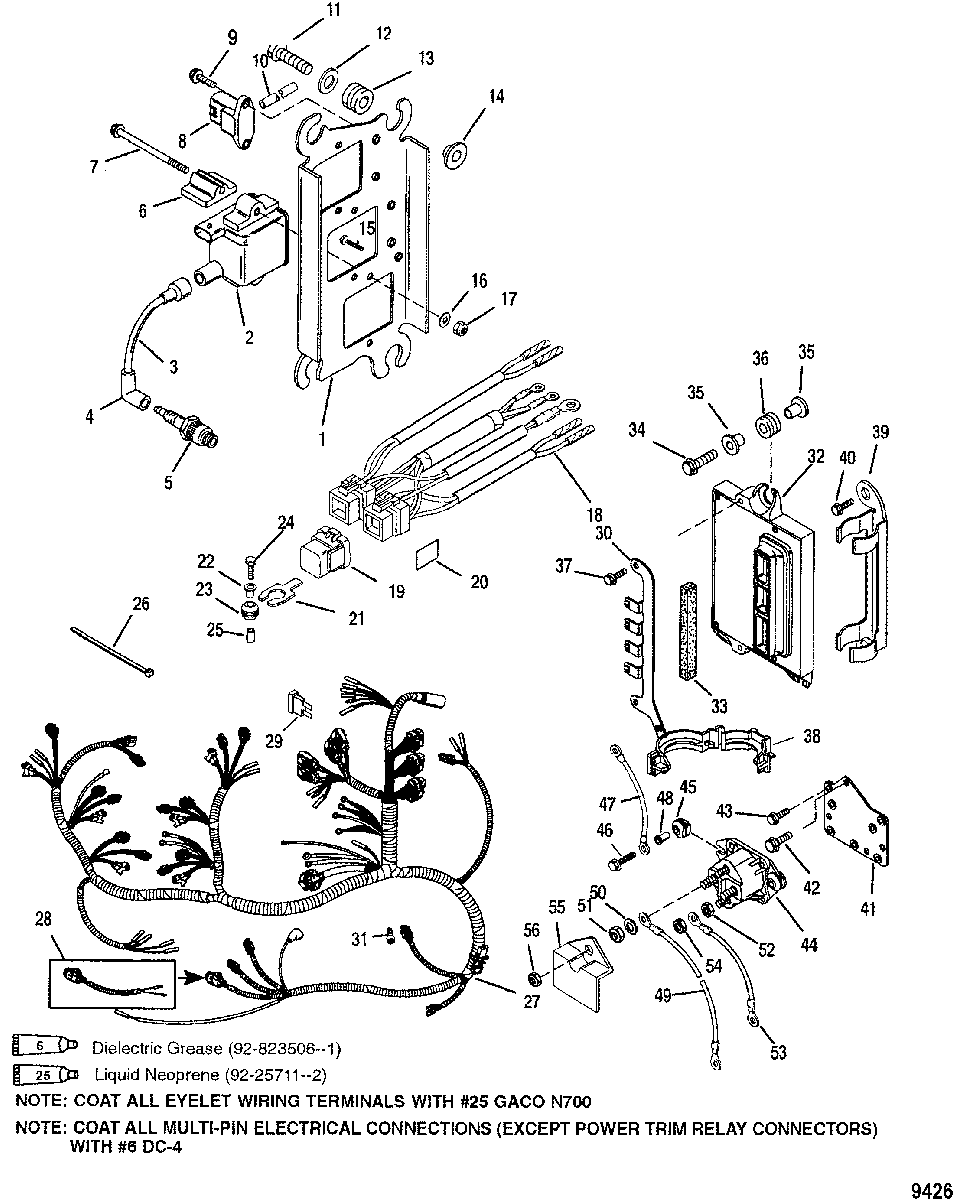

Electrical Components для Mariner - V-135 DFI (2.5L) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1850675 PLATE, Electrical MountingPLATE, Electrical Mounting
-
2339-856991A1 COIL, IgnitionCOIL, Ignition
-
384-821945A63 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
485-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
533-889597Q SPARK PLUG
(PLATINUM)SPARK PLUG
(PLATINUM) -
533-8557171 SPARK PLUG
(NON-PLATINUM)SPARK PLUG
(NON-PLATINUM) -
6850676F1 SPACERSPACER
-
710-850898 SCREW, (.250-20 x 3.250)SCREW, (.250-20 x 3.250)
-
8825762 SENSOR, MAPSENSOR, MAP
-
910-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1032-9912688 TUBING, (36.00 Inches Bulk) (Cut to 31 Inches)TUBING, (36.00 Inches Bulk) (Cut to 31 Inches)
-
1110-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1212-49436 WASHERWASHER
-
1325-833155 GROMMETGROMMET
-
1423-8502341 BUSHINGBUSHING
-
1510-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1612-35044 WASHER, (.281 x .625 x .065) Stainless SteelWASHER, (.281 x .625 x .065) Stainless Steel
-
1711-8267098 NUT, (.250-20)NUT, (.250-20)
-
1884-819514A14 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
19882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
20NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
21828102 BRACKETBRACKET
-
2223-818968 BUSHINGBUSHING
-
2325-818967 GROMMETGROMMET
-
2410-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2410-82129135 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2523-91912 BUSHINGBUSHING
-
2654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2784-850681A6 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
2884-856624A2 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2988-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
30NSS NOT SOLD SEPARATE, Bracket-Fuse HolderNOT SOLD SEPARATE, Bracket-Fuse Holder
-
3110-855634 SCREW (M4 X 8)SCREW (M4 X 8)
-
32858891A20 ECU, Engine Control Unit
(135)ECU, Engine Control Unit
(135) -
32858891A21 ECU, Engine Control Unit
(150)ECU, Engine Control Unit
(150) -
33830897 PADPAD
-
3410-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3523-8318701 BUSHINGBUSHING
-
3625-834985 GROMMETGROMMET
-
3710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
3854-853947 CLIPCLIP
-
398266241 CLAMPCLAMP
-
4010-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
418331371 PLATE, Solenoid MountingPLATE, Solenoid Mounting
-
4210-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
4310-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
4489-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
4525-822179 GROMMETGROMMET
-
4610-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4784-93388A14 CABLE ASSEMBLY (BLACK)CABLE ASSEMBLY (BLACK)
-
4823-818968 BUSHINGBUSHING
-
4984-88439A25 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
5013-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
5111-68292 NUT, (.312-18)NUT, (.312-18)
-
5211-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
5384-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
5411-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
5585-78866 INSULATORINSULATOR
-
5611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
