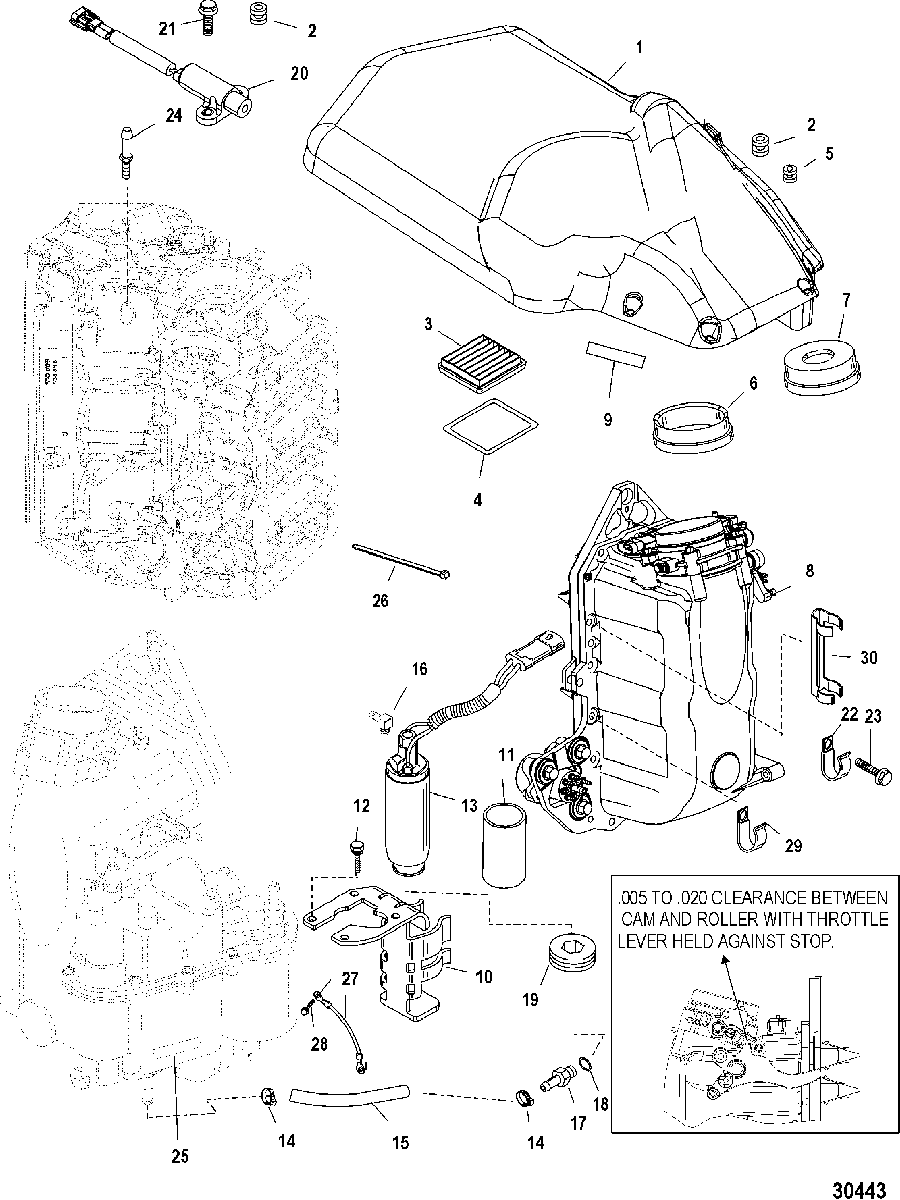

AIR HANDLER для Mariner - V-150 DFI (2.5L) 0T178500 THRU 0T800999
-
№АртикулНазвание
-
1827325T11 COVER ASSEMBLYCOVER ASSEMBLY
-
225-821555001 GROMMETGROMMET
-
335-853333T FILTERFILTER
-
4853352 COVERCOVER
-
525-857101 GROMMETGROMMET
-
625-855613 GROMMET
(150/175)GROMMET
(150/175) -
725-8556131 GROMMET
(135)GROMMET
(135) -
8855633T16 AIR HANDLER ASSEMBLY
(SEE BREAKDOWN ON AIR HANDLER COMPONENTS)AIR HANDLER ASSEMBLY
(SEE BREAKDOWN ON AIR HANDLER COMPONENTS) -
937-881865 DECAL, Caution-Start in GearDECAL, Caution-Start in Gear
-
10855756A1 BRACKET KITBRACKET KIT
-
1123-803818 SLEEVESLEEVE
-
1210-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
138M0047624 PUMP ASSEMBLYPUMP ASSEMBLY
-
1454-13791 CLAMP, (15.7)CLAMP, (15.7)
-
1532-856778 HOSEHOSE
-
1622-855802A1 ELBOWELBOW
-
1722-880862A1 FITTINGFITTING
-
1825-805062 O-RING, (.530 x .082)O-RING, (.530 x .082)
-
1925-856928 GROMMETGROMMET
-
208M0082988 SENSORSENSOR
-
2110-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
2254-883080 J CLIPJ CLIP
-
2310-817504 SCREW, (.250-20 x 1.500) Stainless SteelSCREW, (.250-20 x 1.500) Stainless Steel
-
248215832 PIN, Special (1.5 Inches)PIN, Special (1.5 Inches)
-
2537-804657A01 DECAL, EPA Label Information
(2001)DECAL, EPA Label Information
(2001) -
2537-804657A02 DECAL, EPA Label Information
(150/175)(2002)DECAL, EPA Label Information
(150/175)(2002) -
2537-883929A02 DECAL, EPA Label Information
(135)(2002)DECAL, EPA Label Information
(135)(2002) -
2537-804657A03 DECAL, EPA Label Information
(150/175)(2003)DECAL, EPA Label Information
(150/175)(2003) -
2537-883929A03 DECAL, EPA Label Information
(135)(2003)DECAL, EPA Label Information
(135)(2003) -
2661990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
2784-881831 WIRE ASSEMBLYWIRE ASSEMBLY
-
2810-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2954-633003 CLAMPCLAMP
-
308261151 CLAMP, ConnectorCLAMP, Connector
-
-879808T07 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-879809T07 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175)
