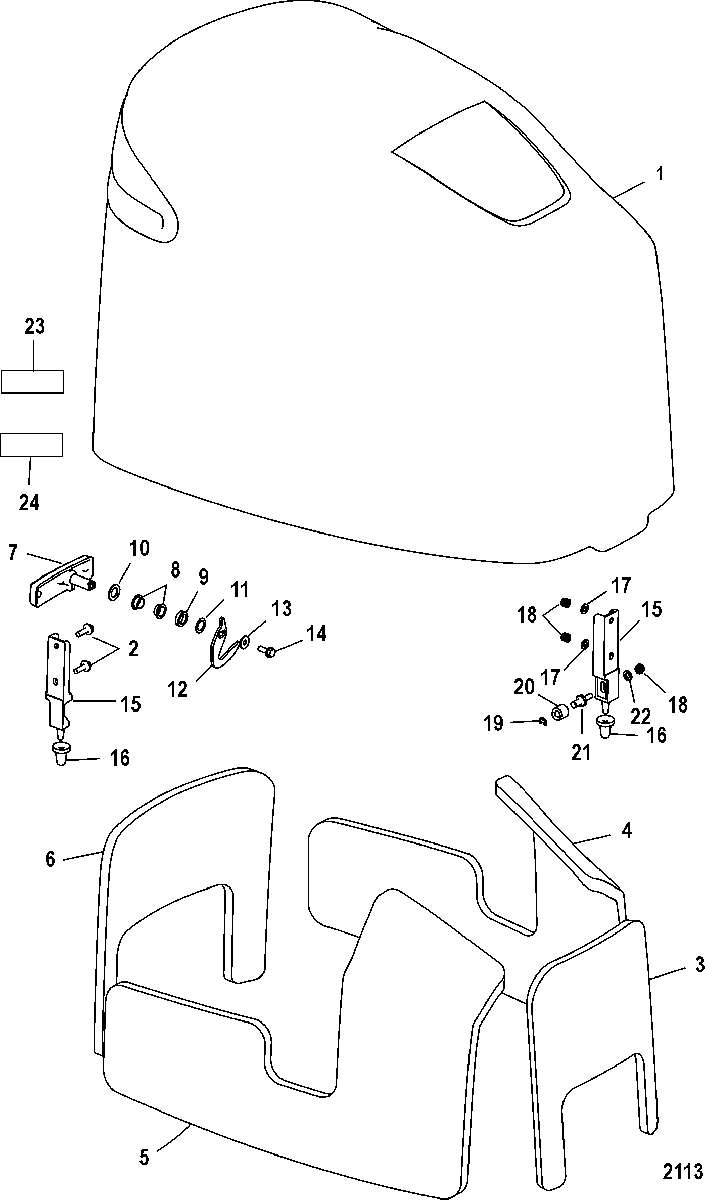

TOP COWL(S/N-0T409000 AND UP) для Mariner - V-150 DFI (2.5L) 0T178500 THRU 0T800999
-
№АртикулНазвание
-
1100-883013T1 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
1100-883058T1 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
210-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
3883019A02 SOUND BLANKET KITSOUND BLANKET KIT
-
4NSS NOT SOLD SEPARATE, SOUND BLANKET(PORT)NOT SOLD SEPARATE, SOUND BLANKET(PORT)
-
5NSS NOT SOLD SEPARATE, SOUND BLANKET (STARBOARD)NOT SOLD SEPARATE, SOUND BLANKET (STARBOARD)
-
6NSS NOT SOLD SEPARATE, SOUND BLANKET (REAR)NOT SOLD SEPARATE, SOUND BLANKET (REAR)
-
7831207A16 HANDLE ASSEMBLY, Black
(BLACK)HANDLE ASSEMBLY, Black
(BLACK) -
7831207A16 HANDLE ASSEMBLY, Silver
(SILVER)HANDLE ASSEMBLY, Silver
(SILVER) -
823-812707 BUSHINGBUSHING
-
923-8312141 SPACERSPACER
-
1012-8M0042643 WASHER, (.520 x .850 x .060) Nylon - BlackWASHER, (.520 x .850 x .060) Nylon - Black
-
1113-12134 WASHER, WaveWASHER, Wave
-
128M0001081 CAM, Latch ShaftCAM, Latch Shaft
-
1312-4002316 WASHERWASHER
-
1410-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
158M0036792 BRACKET, FrontBRACKET, Front
-
16815477 BUMPER, LatchBUMPER, Latch
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1811-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1953-8237951 RING, RetainingRING, Retaining
-
20815263 ROLLERROLLER
-
218155381 PIN, RollPIN, Roll
-
2212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
23NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
24NSS NOT SOLD SEPARATE, Decal Break-InNOT SOLD SEPARATE, Decal Break-In
