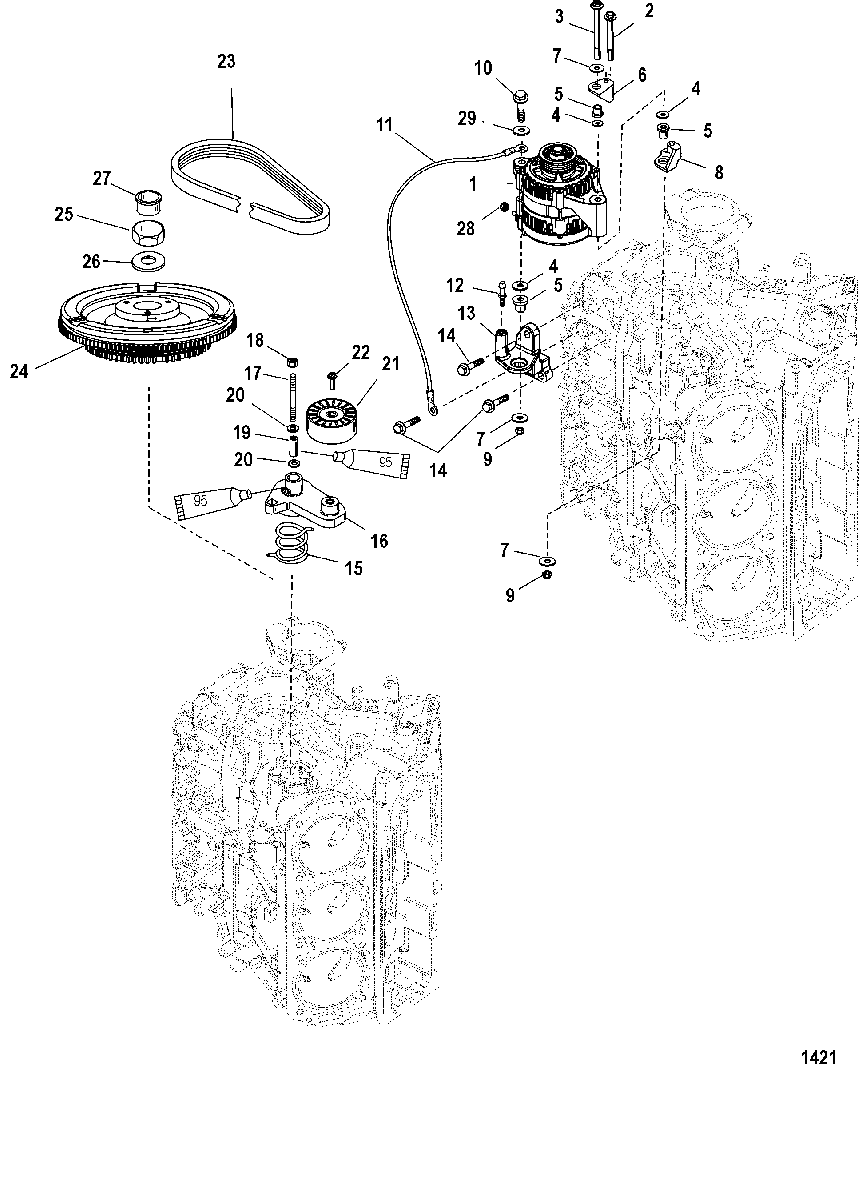

FLYWHEEL/ALTERNATOR для Mariner - V-150 DFI (2.5L) 0T178500 THRU 0T800999
-
№АртикулНазвание
-
18M0064021 ALTERNATOR
SN# 0T598999 & BelowALTERNATOR
SN# 0T598999 & Below -
18M0064021 ALTERNATOR
SN# 0T599000 & UpALTERNATOR
SN# 0T599000 & Up -
210-8M0012503 SCREW, (M10 x 100) Hex Flange - Stainless SteelSCREW, (M10 x 100) Hex Flange - Stainless Steel
-
310-40108120 SCREW, (M10 x 120) Hex Flange - Stainless SteelSCREW, (M10 x 120) Hex Flange - Stainless Steel
-
412-8M0042641 WASHER, (.390 x 1.00 x .06)WASHER, (.390 x 1.00 x .06)
-
523-856975 MOUNTMOUNT
-
6858391T01 BRACKETBRACKET
-
712-845998 WASHER, (.406 x 1.250 x .089)WASHER, (.406 x 1.250 x .089)
-
8858393T01 BRACKETBRACKET
-
911-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
1010-82446155 SCREW, (M10 x 55)SCREW, (M10 x 55)
-
1184-856583T2 CABLE ASSEMBLYCABLE ASSEMBLY
-
128215832 PIN, Special (1.5 Inches)PIN, Special (1.5 Inches)
-
13857142T BRACKETBRACKET
-
1410-812618 SCREW, (.312-18 x 1.00) Stainless Steel With Nylon PatchSCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch
-
1524-855798001 SPRINGSPRING
-
16856815T2 ARM TENSIONER ASSEMBLYARM TENSIONER ASSEMBLY
-
1716-8M0034457 STUD, (M10 x 85)STUD, (M10 x 85)
-
1811-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
1923-8568941 BUSHINGBUSHING
-
2012-4002320 WASHERWASHER
-
218M6005030 PULLEY ASSEMBLYPULLEY ASSEMBLY
-
2210-4010835 SCREW, (M10 x 35) Hex Flange - Stainless SteelSCREW, (M10 x 35) Hex Flange - Stainless Steel
-
2357-828507Q4 BELTBELT
-
24281-859734T1 FLYWHEELFLYWHEEL
-
2511-52901 NUT, (.625-18)NUT, (.625-18)
-
2612-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
2719-45907 PLUG, YellowPLUG, Yellow
-
2811-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2912-4002319 WASHERWASHER
