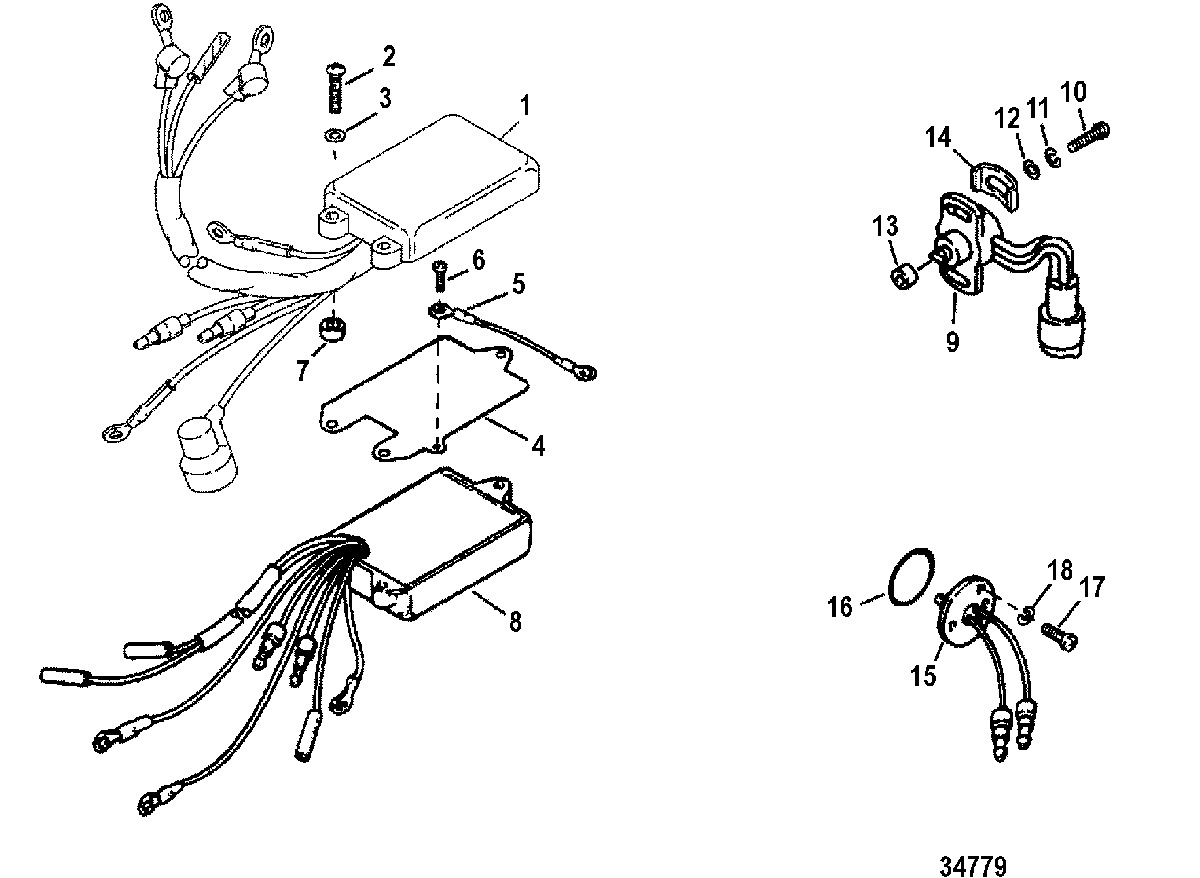

DETONATION CONTROLLER/TEMPERATURE SENSOR для Mariner - V-150 (EFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
1826800A8 CONTROLLER ASSEMBLY, Detonation
200CONTROLLER ASSEMBLY, Detonation
200 -
210-88447 SCREW, (.190-32 x 1.62)
200SCREW, (.190-32 x 1.62)
200 -
312-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
200WASHER, (.192 x .375 x .0312) Stainless Steel
200 -
413381 PLATE
200PLATE
200 -
584-88807A10 CABLE ASSEMBLY
200CABLE ASSEMBLY
200 -
610-62568 SCREW, (#10-16 x .375)
200SCREW, (#10-16 x .375)
200 -
723-94304 SPACER
200SPACER
200 -
841470A25 MODULE ASSEMBLY, Oil Injection WarningMODULE ASSEMBLY, Oil Injection Warning
-
914851T03 INDICATOR, Throttle PositionINDICATOR, Throttle Position
-
1010-15150 SCREW, (#8-32 x .625)SCREW, (#8-32 x .625)
-
1113-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1212-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
1323-15885 SLEEVESLEEVE
-
14813501 PLATEPLATE
-
1513221T01 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1625-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
1710-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
1813-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
