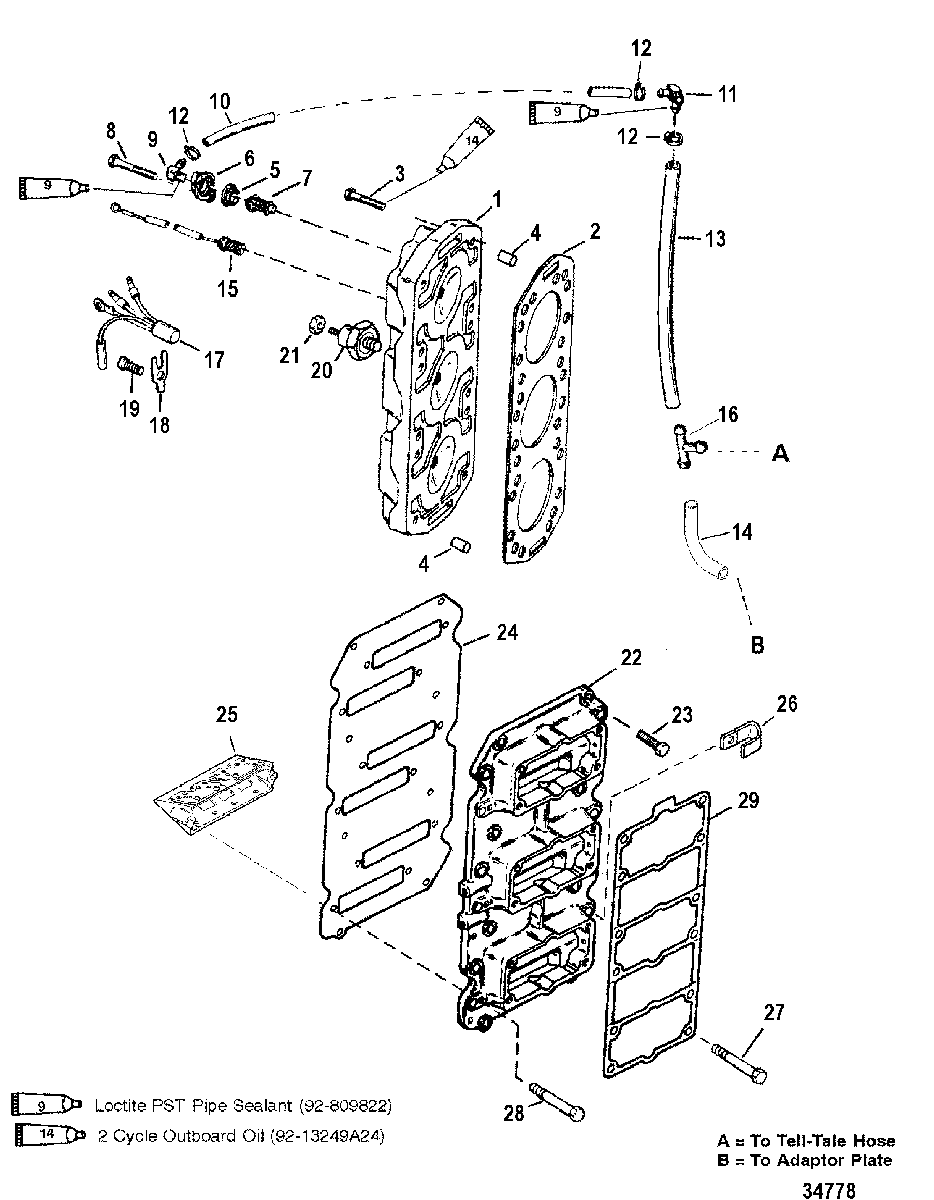

REED BLOCK AND CYLINDER HEAD для Mariner - V-150 (EFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
1900-8M0143213 CYLINDER HEADCYLINDER HEAD
-
227-822844T05 GASKETGASKET
-
310-98534 SCREW, (.375-16 x 2.30)
(Quantity of 24 used on 150/175)SCREW, (.375-16 x 2.30)
(Quantity of 24 used on 150/175) -
310-827426 SCREW
(200)SCREW
(200) -
417-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
527-62386001 GASKETGASKET
-
690390A1 COVER KITCOVER KIT
-
775692 THERMOSTATTHERMOSTAT
-
810-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
922-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
1032-77653101 TUBING, (25.00 Inches), Cut to 12-3/4 InchesTUBING, (25.00 Inches), Cut to 12-3/4 Inches
-
1122-68728 FITTINGFITTING
-
1254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1332-77653101 TUBING, (25.00 Inches), Cut to 11-1/2 InchesTUBING, (25.00 Inches), Cut to 11-1/2 Inches
-
1432-77653101 TUBING, (25.00 Inches), Cut to 7-1/2 InchesTUBING, (25.00 Inches), Cut to 7-1/2 Inches
-
1597465 SENDER, Temperature, StarboardSENDER, Temperature, Starboard
-
1622-815914 T-FITTINGT-FITTING
-
1713536A6 SENSOR ASSEMBLY, Temperature, PortSENSOR ASSEMBLY, Temperature, Port
-
18137151 RETAINERRETAINER
-
1910-98257 SCREW, (.312-18 x .500)SCREW, (.312-18 x .500)
-
20826858 SENSOR, Knock (200)SENSOR, Knock (200)
-
2111-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2217735A2 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
2310-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
2427-146972 GASKETGASKET
-
25855952T3 REED BLOCKREED BLOCK
-
2654-55098 J CLIPJ CLIP
-
2710-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
2810-90197 SCREW, (.250-20 x 1.125)SCREW, (.250-20 x 1.125)
-
2927-167371 GASKETGASKET
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-823434R97 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
