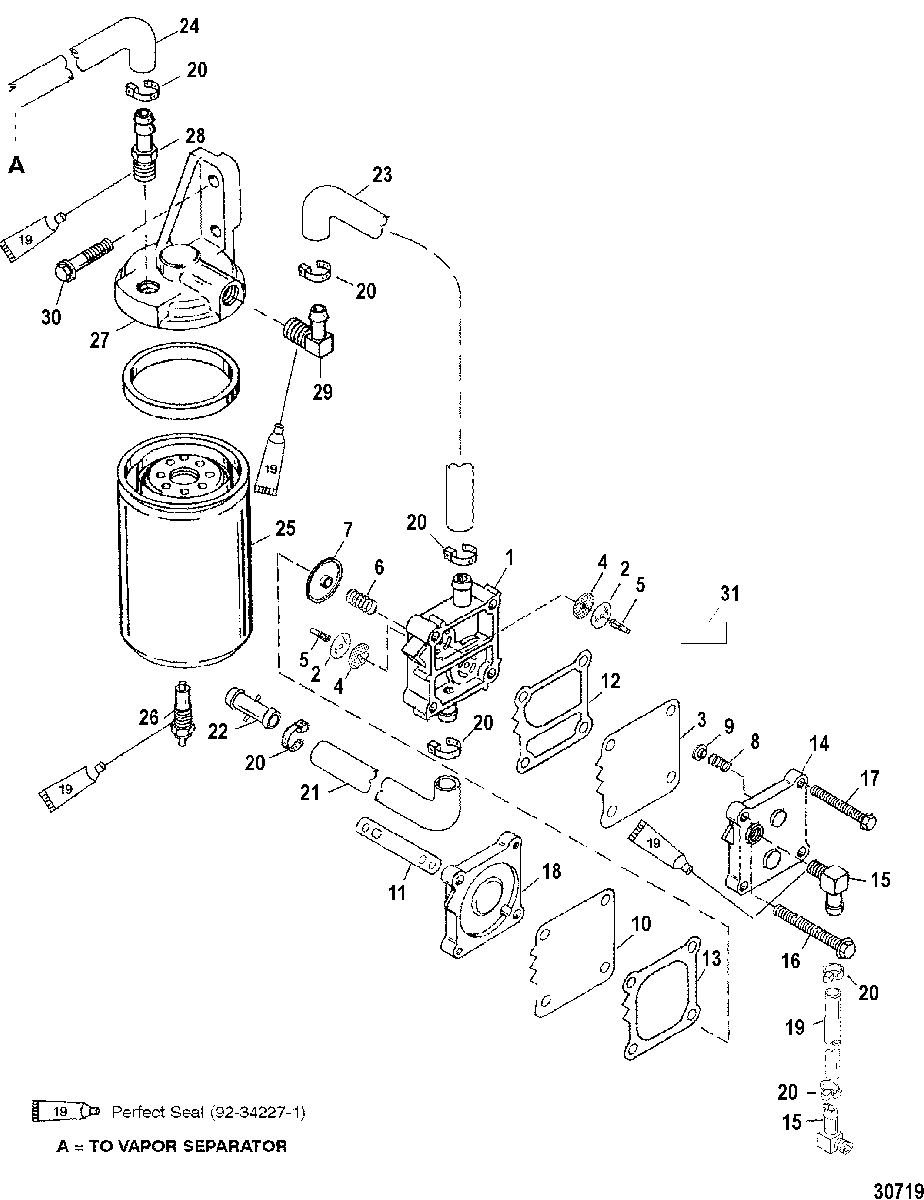

FUEL PUMP для Mariner - V-150 (EFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
-14360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel Pump AssemblyNOT SOLD SEPARATE, Fuel Pump Assembly
-
221-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
3NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
4NSS NOT SOLD SEPARATE, Check Valve-RubberNOT SOLD SEPARATE, Check Valve-Rubber
-
5NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
6NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
7NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
8NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
9NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
10NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1127-987691 GASKET, BaseGASKET, Base
-
12NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
13NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
14987752 PLATEPLATE
-
1522-996642 ELBOWELBOW
-
1610-82130050 SCREW, (M6 x 50), Pump to CrankcaseSCREW, (M6 x 50), Pump to Crankcase
-
1710-82104540 SCREW, (M5 x 40), Fuel PumpSCREW, (M5 x 40), Fuel Pump
-
18144303 BASEBASE
-
1932-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 6 InchesTUBING, (.312) (70.00 Inches Bulk), Cut to 6 Inches
-
2054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2132-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 10-1/2 InchesTUBING, (.312) (70.00 Inches Bulk), Cut to 10-1/2 Inches
-
2222-822769 CONNECTORCONNECTOR
-
2332-1350385 TUBING, (33.00 Inches Bulk), Cut to 15-1/2 InchesTUBING, (33.00 Inches Bulk), Cut to 15-1/2 Inches
-
2432-1350385 TUBING, (33.00 Inches Bulk), Cut to 19 InchesTUBING, (33.00 Inches Bulk), Cut to 19 Inches
-
2535-18458Q4 FILTER KITFILTER KIT
-
268285861 PROBEPROBE
-
2713170A3 BASEBASE
-
2822-89771Q2 CONNECTOR, (.250-18) (STRAIGHT)CONNECTOR, (.250-18) (STRAIGHT)
-
2922-136071 ELBOWELBOW
-
3010-455611 SCREW, (.250-20 x 1.120)SCREW, (.250-20 x 1.120)
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-823434R97 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
