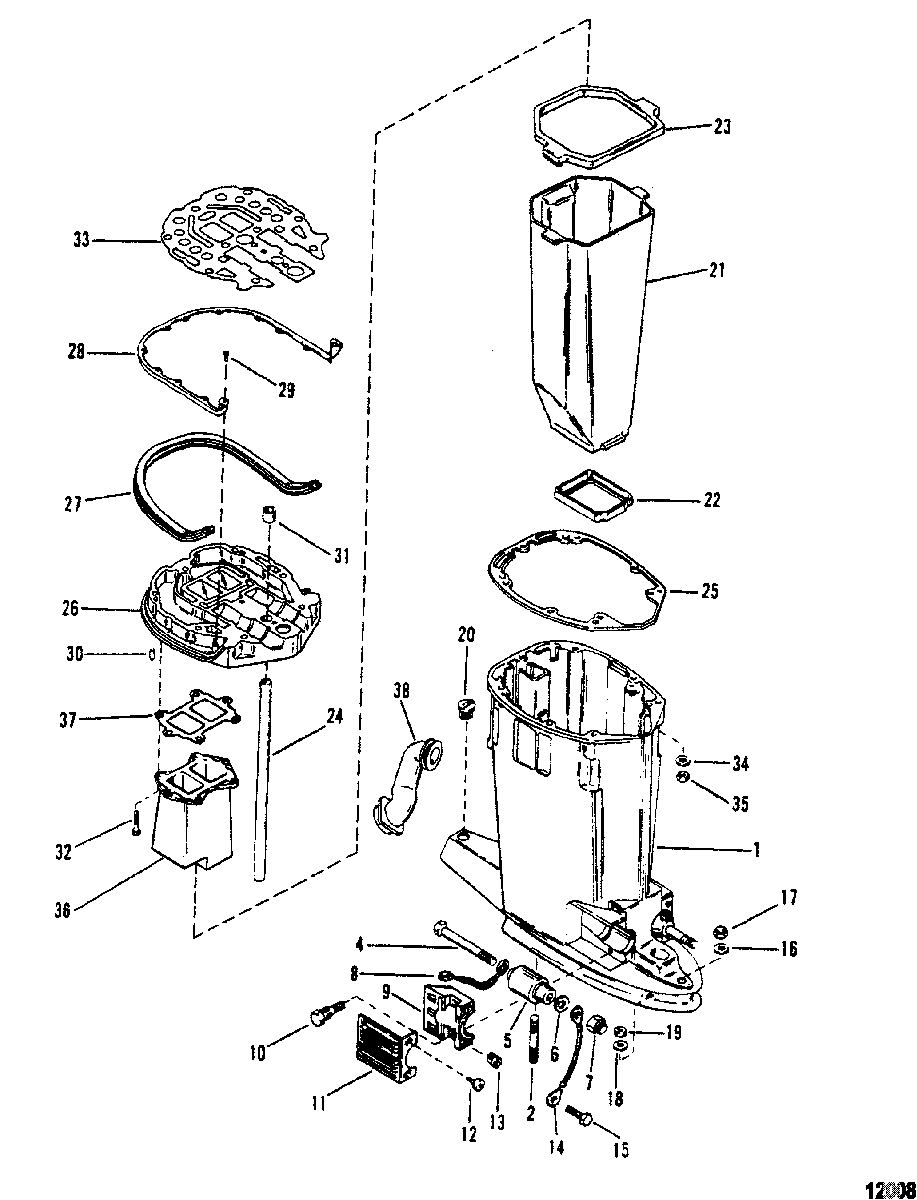

Drive Shaft Housing And Exhaust Tube для Mariner - V-150 (MAG/EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
11590-8343T10 HOUSING ASSEMBLY, Driveshaft, Black
(Long)HOUSING ASSEMBLY, Driveshaft, Black
(Long) -
11590-8343T10 HOUSING ASSEMBLY, Driveshaft, Gray
(Long)HOUSING ASSEMBLY, Driveshaft, Gray
(Long) -
11590-8343T12 HOUSING ASSEMBLY, Driveshaft, Tracker
(Long)HOUSING ASSEMBLY, Driveshaft, Tracker
(Long) -
13503-813563T1 HOUSING ASSEMBLY, Driveshaft, Black
(X-Long)HOUSING ASSEMBLY, Driveshaft, Black
(X-Long) -
13503-813563T1 HOUSING ASSEMBLY, Driveshaft, Gray
(X-Long)HOUSING ASSEMBLY, Driveshaft, Gray
(X-Long) -
216-56295 STUD, (.437 x 2.69)STUD, (.437 x 2.69)
-
410-898831 SCREW, (.500-20 x 6.00)SCREW, (.500-20 x 6.00)
-
577327 MOUNT, No MarkingsMOUNT, No Markings
-
577327 MOUNT, Tracker - White DotMOUNT, Tracker - White Dot
-
612-49339 WASHER, (.8125)WASHER, (.8125)
-
711-898832 NUT, (.500-20)NUT, (.500-20)
-
888238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
954-8M0036782 CLAMPCLAMP
-
1010-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
11100-8M4500752 COVER, Black, BlackCOVER, Black, Black
-
11100-8M4500752 COVER, GrayCOVER, Gray
-
11100-8M4500752 COVER, TrackerCOVER, Tracker
-
1210-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1311-35521 NUTNUT
-
1488238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1510-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
1612-48926 WASHERWASHER
-
1711-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1812-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
1911-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2019-64649 PLUGPLUG
-
2118276T TUBE, ExhaustTUBE, Exhaust
-
2266350001 SEAL, LowerSEAL, Lower
-
238M0039076 SEAL, UpperSEAL, Upper
-
2432-8M0042788 TUBE, Water, Jet
(Long)TUBE, Water, Jet
(Long) -
2432-8M0042790 TUBE
(X-Long)TUBE
(X-Long) -
2527-991734 GASKETGASKET
-
2618233A20 PLATE ASSEMBLYPLATE ASSEMBLY
-
278M0043165 SEALSEAL
-
2868011 BRACKETBRACKET
-
2910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3017-43044 PIN, DowelPIN, Dowel
-
3126-38970 SEALSEAL
-
3210-90192 SCREW, (.250-20 x .750) Stainless SteelSCREW, (.250-20 x .750) Stainless Steel
-
3327-183076 GASKETGASKET
-
3412-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
3511-69254 NUTNUT
-
36812834A2 EXTENSION, Exhaust (13.50")EXTENSION, Exhaust (13.50")
-
36879288T71 EXTENSION, Exhaust (7.50")EXTENSION, Exhaust (7.50")
-
3727-782461 GASKETGASKET
-
38814618 BOOTBOOT
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
