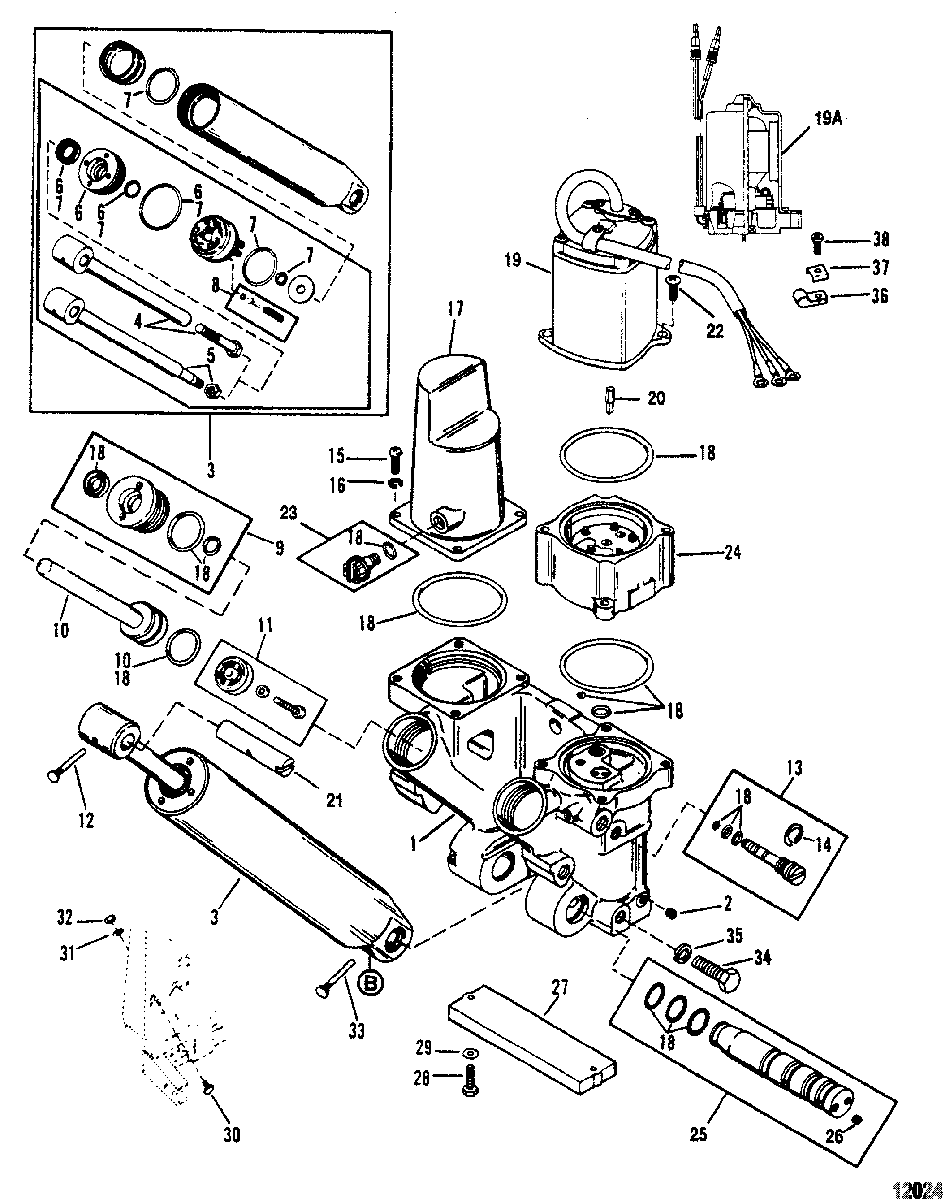

Power Trim Components для Mariner - V-150 (MAG/EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-826729A10 POWER TRIM ASSEMBLY
SN# 0G201874 & BelowPOWER TRIM ASSEMBLY
SN# 0G201874 & Below -
-855998A11 TRIM AND TILT ASSEMBLY
SN# 0G201875 & UpTRIM AND TILT ASSEMBLY
SN# 0G201875 & Up -
1811604F MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
222-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
38M0078330 TILT CYLINDER ASSEMBLYTILT CYLINDER ASSEMBLY
-
4811608 ROD KIT, Trim And Tilt Piston, Bolt Type
(Bolt type piston rod is stamped with a B)ROD KIT, Trim And Tilt Piston, Bolt Type
(Bolt type piston rod is stamped with a B) -
58M0078330 ROD KIT, Trim Piston, Nut TypeROD KIT, Trim Piston, Nut Type
-
68M0090322 GUIDE KITGUIDE KIT
-
7811607A1 REPAIR KITREPAIR KIT
-
88M0078330 CHECK VALVE KITCHECK VALVE KIT
-
91100-8M0021648 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
10878413A1 PISTON/ROD ASSEMBLY, Power Trim
(Port)PISTON/ROD ASSEMBLY, Power Trim
(Port) -
10878414T01 PISTON/ROD ASSEMBLY, Power Trim
(Starboard)PISTON/ROD ASSEMBLY, Power Trim
(Starboard) -
1135-12184A1 TRIM FILTER ASSEMBLYTRIM FILTER ASSEMBLY
-
1217-821539 PIN, TrilobePIN, Trilobe
-
13893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
1453-815949001 E RINGE RING
-
1510-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1612-4002315 WASHERWASHER
-
17811611 COVERCOVER
-
18811612A3 O-RING KITO-RING KIT
-
19878265A6 TRIM MOTORTRIM MOTOR
-
19A8M0031551 MOTOR ASSEMBLYMOTOR ASSEMBLY
-
20811619 DRIVESHAFT
SN# 0G201874 & BelowDRIVESHAFT
SN# 0G201874 & Below -
20828710 DRIVE JOINT
SN# 0G201875 & UpDRIVE JOINT
SN# 0G201875 & Up -
2199625002 SHAFTSHAFT
-
2210-811615 SCREW, Long
SN# 0G201874 & BelowSCREW, Long
SN# 0G201874 & Below -
2210-881768A1 SCREW, Long
SN# 0G201875 & UpSCREW, Long
SN# 0G201875 & Up -
2210-811616 SCREW, ShortSCREW, Short
-
2319-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
24811617T1 PUMPPUMP
-
25878241A03 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
2622-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
2797-818298Q1 ANODE KITANODE KIT
-
2810-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
308M0045383 STRIKER PLATESTRIKER PLATE
-
3113-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3211-46335 NUT, (.375-24)NUT, (.375-24)
-
3317-878267 PIN, GroovePIN, Groove
-
3410-4000377 SCREW, (M10 x 30), ManifoldSCREW, (M10 x 30), Manifold
-
3512-4002319 WASHER, Manifold ScrewWASHER, Manifold Screw
-
3654-22875 CLIP, Pump Wire
SN# 0G201874 & BelowCLIP, Pump Wire
SN# 0G201874 & Below -
3654-26550 CLAMP, Pump Wire
SN# 0G201875 & UpCLAMP, Pump Wire
SN# 0G201875 & Up -
378M0084613 C WASHERC WASHER
-
3810-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
