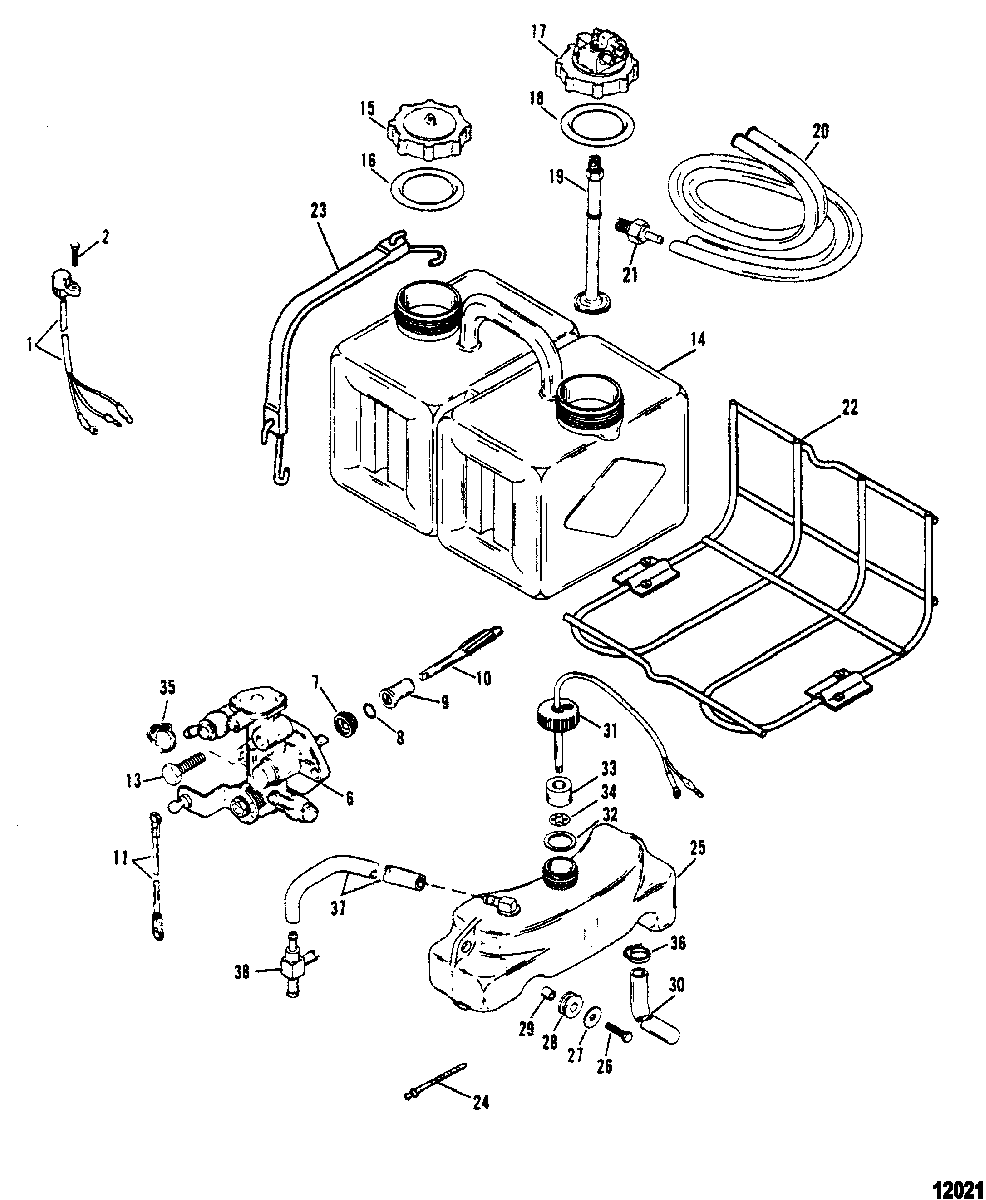

Oil Injection Components для Mariner - V-150 (MAG/EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
112430A4 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
210-878609 SCREW, (#10-16 x .600), Sensor AttachingSCREW, (#10-16 x .600), Sensor Attaching
-
6815699T PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
78141032 BUSHING, WormBUSHING, Worm
-
825-11379 O-RINGO-RING
-
923-41429A2 BEARING ASSEMBLY, Drive GearBEARING ASSEMBLY, Drive Gear
-
1043-14563 GEAR, DrivenGEAR, Driven
-
111938512 LINK ASSEMBLY, Throttle Lever To Oil PumpLINK ASSEMBLY, Throttle Lever To Oil Pump
-
1310-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
1310-41507 SCREW, (#10-32 x 1.120)SCREW, (#10-32 x 1.120)
-
141257-87421 TANKTANK
-
1536-43298A2 CAP ASSEMBLY, Oil TankCAP ASSEMBLY, Oil Tank
-
1625-11332 O-RING, (2.225 x .210), CapO-RING, (2.225 x .210), Cap
-
17816190A4 HOUSING ASSEMBLY, AdapterHOUSING ASSEMBLY, Adapter
-
1825-11332 O-RING, (2.225 x .210), Adaptor HousingO-RING, (2.225 x .210), Adaptor Housing
-
1932-99802 TUBE, Oil Pick-UpTUBE, Oil Pick-Up
-
2032-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
2121-8781051 FITTING, Ceck Valve (Crankcase)FITTING, Ceck Valve (Crankcase)
-
2212335A1 BRACKET KITBRACKET KIT
-
2312323A1 CORD/HOOK KITCORD/HOOK KIT
-
2454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
25994436 RESERVOIR, OilRESERVOIR, Oil
-
2610-690201 SCREW, (#10-32 x .875), Oil Reservoir AttatchingSCREW, (#10-32 x .875), Oil Reservoir Attatching
-
2712-42118 WASHER, Oil Reservoir ScrewWASHER, Oil Reservoir Screw
-
2825-42117 GROMMET, Oil Reservoir ScrewGROMMET, Oil Reservoir Screw
-
2923-42116 BUSHING, Oil Reservoir ScrewBUSHING, Oil Reservoir Screw
-
3032-82381455 TUBING, (15.500 Inches Bulk), Oil Reservoir To Oil Pump
(Cut to 4.75 Inch Length)TUBING, (15.500 Inches Bulk), Oil Reservoir To Oil Pump
(Cut to 4.75 Inch Length) -
3136-43300A9 CAP ASSEMBLY, Oil ReservoirCAP ASSEMBLY, Oil Reservoir
-
3227-43307T GASKET, Reservoir CapGASKET, Reservoir Cap
-
3399022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3411-99265 PUSH NUTPUSH NUT
-
3554-415824 CLAMP, Oil Hose
(Use Where Applicable)CLAMP, Oil Hose
(Use Where Applicable) -
3654-415823 CLAMP, Oil HoseCLAMP, Oil Hose
-
3732-8M0108355 LINE, (57.00 Inches Bulk), Oil
(Cut to 5.25 Inch Length)LINE, (57.00 Inches Bulk), Oil
(Cut to 5.25 Inch Length) -
3822-42425 TEE, Oil TubingTEE, Oil Tubing
