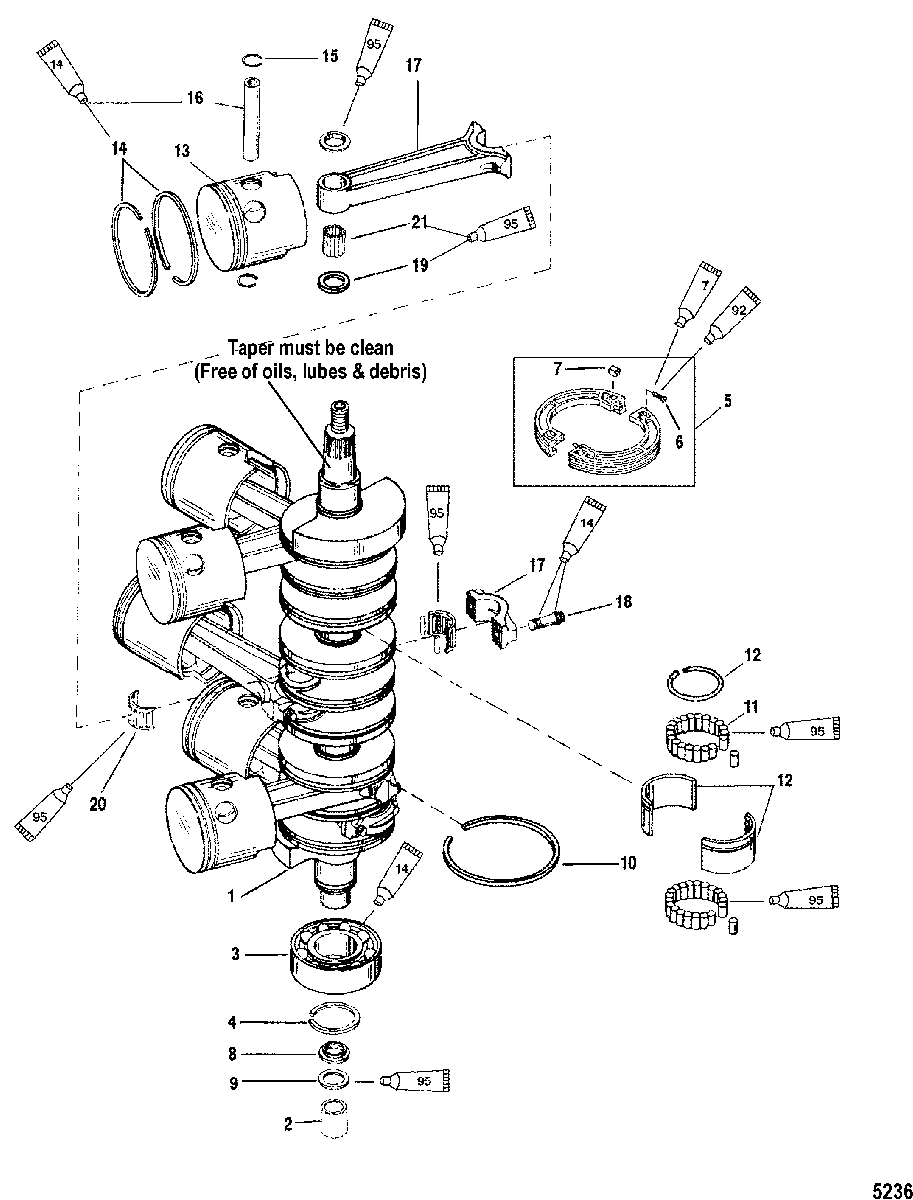

Crankshaft, Pistons and Connecting Rods для Mariner - V-150 0G960500 THRU 1B226999

№

Артикул

Название
1

455-850690T2 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

335 380 ₽
2

78662 WEAR SLEEVE

WEAR SLEEVE

2 060 ₽
3

30-67923T BEARING, Ball (LOWER)

BEARING, Ball (LOWER)

5 390 ₽
4

53-67446 RING

RING

230 ₽
5

43-14513A09 GEAR SEGMENT KIT, Drive

GEAR SEGMENT KIT, Drive

7 950 ₽
6

10-813073 SCREW, (#6-32 x .620) Socket Head

SCREW, (#6-32 x .620) Socket Head

150 ₽
7

11-813134 NUT, (#6-32) Special

NUT, (#6-32) Special

440 ₽
8

54196A6 CARRIER ASSEMBLY

CARRIER ASSEMBLY

1 530 ₽
9

65800 PACKING

PACKING

300 ₽
10

39-67377T RING, Sealing, CRANKSHAFT

RING, Sealing, CRANKSHAFT

1 140 ₽
11

31-16756A6 BEARING KIT

BEARING KIT

10 750 ₽
12

NSS NOT SOLD SEPARATE, Bearing

NOT SOLD SEPARATE, Bearing

0 ₽
13

765-7441T32 PISTON
(STARBOARD-STANDARD)(135)

PISTON
(STARBOARD-STANDARD)(135)

16 520 ₽
13

765-7443A11 PISTON
(STARBOARD-.015 O.S.)(135)

PISTON
(STARBOARD-.015 O.S.)(135)

23 660 ₽
13

765-7445T11 PISTON
(STARBOARD-.030 OS.)(135)

PISTON
(STARBOARD-.030 OS.)(135)

22 600 ₽
13

765-7442T32 PISTON
(PORT-STANDARD)(135)

PISTON
(PORT-STANDARD)(135)

16 700 ₽
13

765-7444A11 PISTON
(PORT-.015 O.S.)(135)

PISTON
(PORT-.015 O.S.)(135)

15 470 ₽
13

765-7446A11 PISTON
(PORT-.030 O.S.)(135)

PISTON
(PORT-.030 O.S.)(135)

21 410 ₽
13

785-9738T9 PISTON ASSEMBLY, Standard
(STARBOARD-STANDARD)(140/150/XR6/ MAGNUM III/200)

PISTON ASSEMBLY, Standard
(STARBOARD-STANDARD)(140/150/XR6/ MAGNUM III/200)

17 440 ₽
13

785-9738T10 PISTON ASSEMBLY, .015 Oversize
(STARBOARD-.015 O.S.)(140/150/XR6/MAGNUM III/200)

PISTON ASSEMBLY, .015 Oversize
(STARBOARD-.015 O.S.)(140/150/XR6/MAGNUM III/200)

23 550 ₽
13

785-9737T9 PISTON ASSEMBLY, Standard
(PORT-STANDARD)(140/150/XR6/MAGNUM III/200)

PISTON ASSEMBLY, Standard
(PORT-STANDARD)(140/150/XR6/MAGNUM III/200)

17 760 ₽
13

785-9737A10 PISTON ASSEMBLY, .015 Oversize
(PORT-.015 O.S.)(140/150/XR6/MAGNUM III/200)

PISTON ASSEMBLY, .015 Oversize
(PORT-.015 O.S.)(140/150/XR6/MAGNUM III/200)

25 110 ₽
14

39-93481A12 RING SET, Piston - Standard
(STANDARD)(135)

RING SET, Piston - Standard
(STANDARD)(135)

29 270 ₽
14

39-78918A4 RING SET, Piston - .015 Oversize
(.015 O.S.)(135)

RING SET, Piston - .015 Oversize
(.015 O.S.)(135)

10 990 ₽
14

39-85636A4 RING SET, Piston - .030 Oversize
(.030 O.S.)(135)

RING SET, Piston - .030 Oversize
(.030 O.S.)(135)

16 480 ₽
14

39-822321A12 RING KIT, Piston - Standard
(STD.)(140/150/XR6/MAGNUM III/200)

RING KIT, Piston - Standard
(STD.)(140/150/XR6/MAGNUM III/200)

20 280 ₽
14

39-822321A1 RING KIT, Piston - .015 Oversize
(.015 O.S.)(140/150/XR6/MAGNUM III/200)

RING KIT, Piston - .015 Oversize
(.015 O.S.)(140/150/XR6/MAGNUM III/200)

33 290 ₽
15

53-857196 LOCK RING

LOCK RING

100 ₽
16

NSS NOT SOLD SEPARATE, Piston Pin

NOT SOLD SEPARATE, Piston Pin

0 ₽
17

644-818141A13 CONNECTING ROD KIT

CONNECTING ROD KIT

41 260 ₽
18

10-763491 SCREW, (.312-24 x .875)

SCREW, (.312-24 x .875)

460 ₽
19

12-8M0012298 WASHER

WASHER

450 ₽
20

31-8M0045428 BEARING KIT

BEARING KIT

7 260 ₽
21

29-822553 BEARING, Needle

BEARING, Needle

50 ₽
-

27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included

GASKET SET, Engine, Cylinder head o-rings and seal not included

21 370 ₽
-

812815R97 POWERHEAD ASSEMBLY
(135)

POWERHEAD ASSEMBLY
(135)

599 020 ₽
-

823434R00 POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)

POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)

659 980 ₽
-

813043R00 POWERHEAD ASSEMBLY
(200)

POWERHEAD ASSEMBLY
(200)

796 920 ₽
