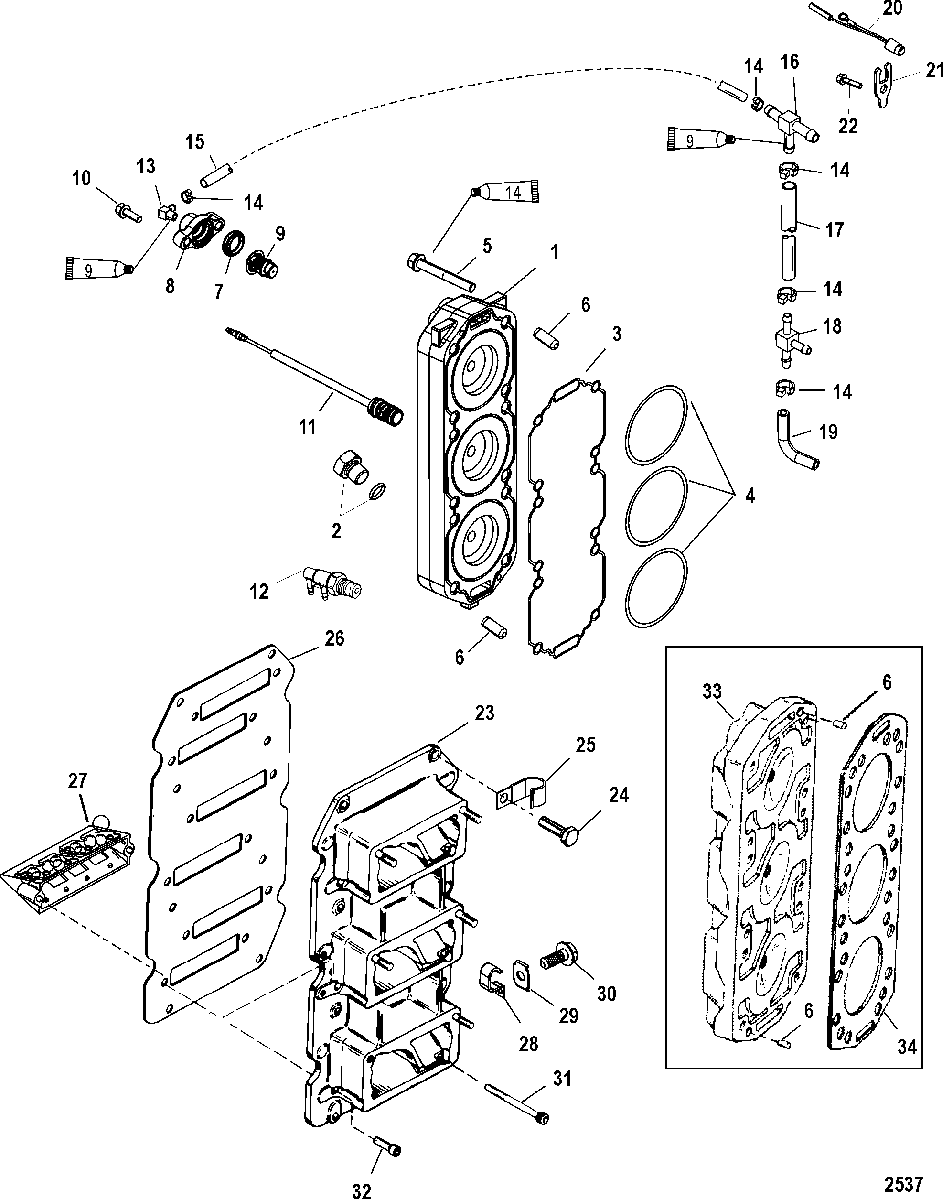

Reed Block and Cylinder Head для Mariner - V-150 0G960500 THRU 1B226999

№

Артикул

Название
1

858281A9 CYLINDER HEAD
(140/150/XR6/ MAGNUM III) SN# 0T800999 & Below

CYLINDER HEAD
(140/150/XR6/ MAGNUM III) SN# 0T800999 & Below

39 500 ₽
1

858281A9 CYLINDER HEAD KIT
(140/150/XR6/ MAGNUM III) SN# 0T801000 & Up

CYLINDER HEAD KIT
(140/150/XR6/ MAGNUM III) SN# 0T801000 & Up

39 500 ₽
1

858281A10 CYLINDER HEAD
(200) SN# 0T800999 & Below

CYLINDER HEAD
(200) SN# 0T800999 & Below

38 350 ₽
1

858281A10 CYLINDER HEAD ASSEMBLY
(200) SN# 0T801000 & Up

CYLINDER HEAD ASSEMBLY
(200) SN# 0T801000 & Up

38 350 ₽
2

22-8591001 PLUG
SN# 0T800999 & Below

PLUG
SN# 0T800999 & Below

1 710 ₽
2

22-8591001 PLUG ASSEMBLY, (M10 x 1.5) Brass
(200) SN# 0T801000 & Up

PLUG ASSEMBLY, (M10 x 1.5) Brass
(200) SN# 0T801000 & Up

1 710 ₽
3

8584521 SEAL
(140/150/XR6/ MAGNUM III/200)

SEAL
(140/150/XR6/ MAGNUM III/200)

2 330 ₽
4

8597721 SEAL
(140/150/XR6/ MAGNUM III/200)

SEAL
(140/150/XR6/ MAGNUM III/200)

1 260 ₽
5

10-8M0125882 SCREW, (.375-16 x 2.750)

SCREW, (.375-16 x 2.750)

0 ₽
6

17-63779 PIN, Dowel (.250 x .625)

PIN, Dowel (.250 x .625)

290 ₽
7

27-62386001 GASKET
SN# 0T979999 & Below

GASKET
SN# 0T979999 & Below

350 ₽
7

27-62386001 GASKET
SN# 0T980000 & Up

GASKET
SN# 0T980000 & Up

350 ₽
8

90390A1 COVER KIT

COVER KIT

4 110 ₽
9

75692 THERMOSTAT

THERMOSTAT

2 240 ₽
10

10-40011149 SCREW, (M8 x 25) Stainless Steel

SCREW, (M8 x 25) Stainless Steel

140 ₽
11

974651 SENDER (STBD.)

SENDER (STBD.)

8 710 ₽
12

814612 VALVE, Thermal Air

VALVE, Thermal Air

21 350 ₽
13

22-687271 FITTING, (.250-18) 90 Degree - Brass

FITTING, (.250-18) 90 Degree - Brass

3 050 ₽
14

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
15

32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 Inches)

HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 Inches)

5 500 ₽
16

22-68728 FITTING

FITTING

3 260 ₽
17

32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 Inches)

HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 Inches)

5 500 ₽
18

22-815914 T-FITTING

T-FITTING

1 710 ₽
19

32-77653101 HOSE, (48.00 Inches Bulk)
(Cut to 4-1/2 Inches)

HOSE, (48.00 Inches Bulk)
(Cut to 4-1/2 Inches)

5 500 ₽
19

32-827602002 HOSE
(Molded)

HOSE
(Molded)

480 ₽
20

13536A13 SENSOR ASSEMBLY, Temperature (PORT) (2-WIRE)

SENSOR ASSEMBLY, Temperature (PORT) (2-WIRE)

4 140 ₽
21

137151 RETAINER

RETAINER

290 ₽
22

10-81893414 SCREW, (M8 x 14)

SCREW, (M8 x 14)

210 ₽
23

43517A9 PLATE ASSEMBLY

PLATE ASSEMBLY

16 920 ₽
24

10-28668 SCREW, (.250-20 x .875) Stainless Steel

SCREW, (.250-20 x .875) Stainless Steel

140 ₽
25

54-55098 J CLIP

J CLIP

330 ₽
26

27-146972 GASKET

GASKET

1 050 ₽
27

855952T3 REED BLOCK ASSEMBLY

REED BLOCK ASSEMBLY

12 850 ₽
28

54-65292 J CLIP

J CLIP

200 ₽
29

8M0084613 C WASHER

C WASHER

100 ₽
30

10-878608 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)

120 ₽
31

10-96529 SCREW, (.250-20 x 2.00)

SCREW, (.250-20 x 2.00)

410 ₽
32

10-55715 SCREW, (.250-20 x .880)

SCREW, (.250-20 x .880)

180 ₽
33

18787A18 CYLINDER HEAD ASSEMBLY
(135)

CYLINDER HEAD ASSEMBLY
(135)

38 480 ₽
34

27-18785T GASKET
(135)

GASKET
(135)

5 880 ₽
-

27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included

GASKET SET, Engine, Cylinder head o-rings and seal not included

21 370 ₽
-

812815R97 POWERHEAD ASSEMBLY
(135)

POWERHEAD ASSEMBLY
(135)

599 020 ₽
-

823434R00 POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)

POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)

659 980 ₽
-

813043R00 POWERHEAD ASSEMBLY
(200)

POWERHEAD ASSEMBLY
(200)

796 920 ₽
