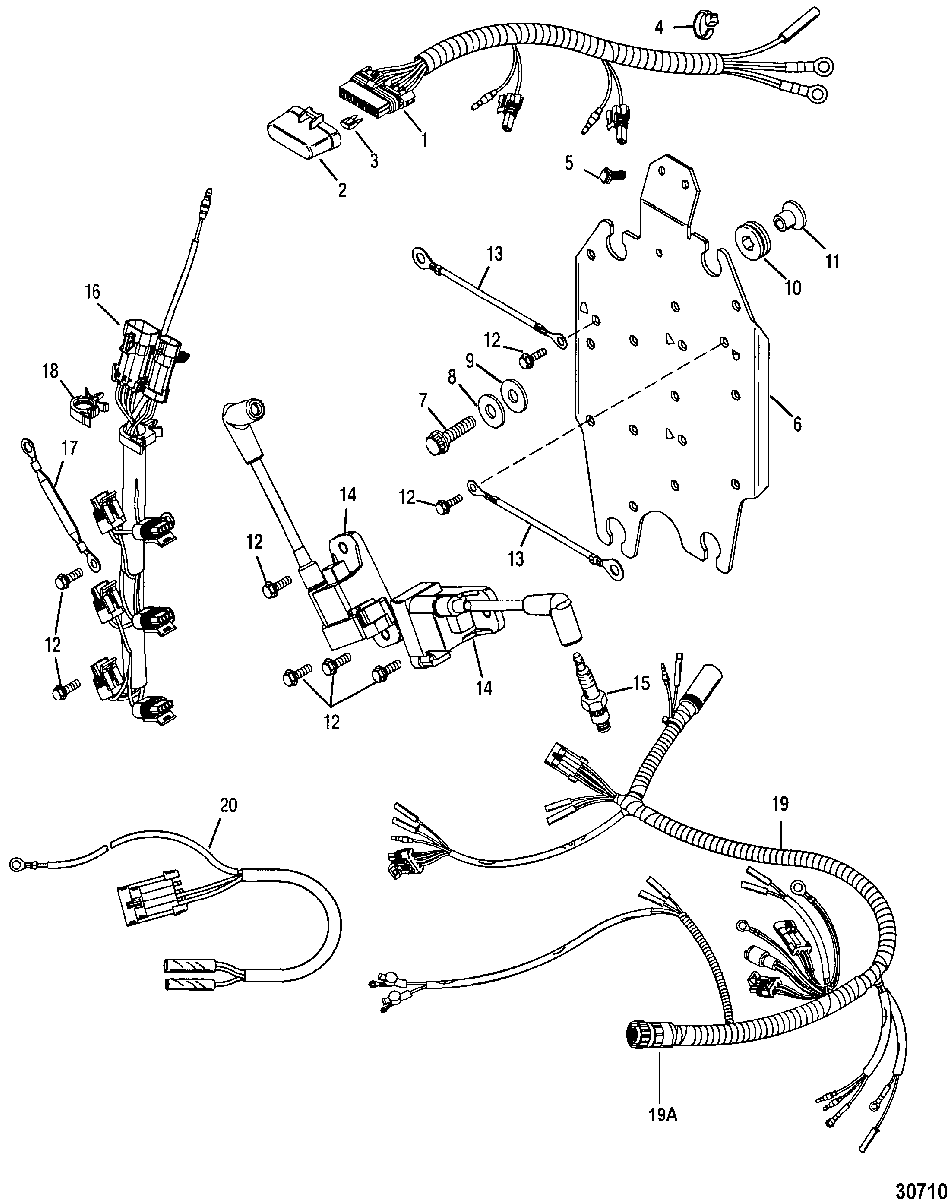

CDM MOUNTING для Mariner - V-200 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
184-858425T2 HARNESS ASSEMBLY, PowerHARNESS ASSEMBLY, Power
-
2NSS NOT SOLD SEPARATE, CoverNOT SOLD SEPARATE, Cover
-
388-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
554-828991T CLIPCLIP
-
68571621 PLATE, CDM MountingPLATE, CDM Mounting
-
710-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
812-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
912-49436 WASHERWASHER
-
1025-833155 GROMMETGROMMET
-
1123-8502341 BUSHINGBUSHING
-
1210-82129116 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1384-856583A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
14827509T7 CDM MODULE ASSEMBLYCDM MODULE ASSEMBLY
-
-84-857124A1 CABLE ASSEMBLY, Hi-TensionCABLE ASSEMBLY, Hi-Tension
-
-85-857074A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
1533-14814Q SPARK PLUG, (NGK # BPZ8HS-10)SPARK PLUG, (NGK # BPZ8HS-10)
-
1684-857163T1 HARNESS ASSEMBLY, CDMHARNESS ASSEMBLY, CDM
-
1784-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
18828791 CLIPCLIP
-
1984-857165T1 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
19190491 COUPLE RINGCOUPLE RING
-
2084-858702T1 CABLE ASSEMBLY, Adaptor
(150/175)CABLE ASSEMBLY, Adaptor
(150/175)
