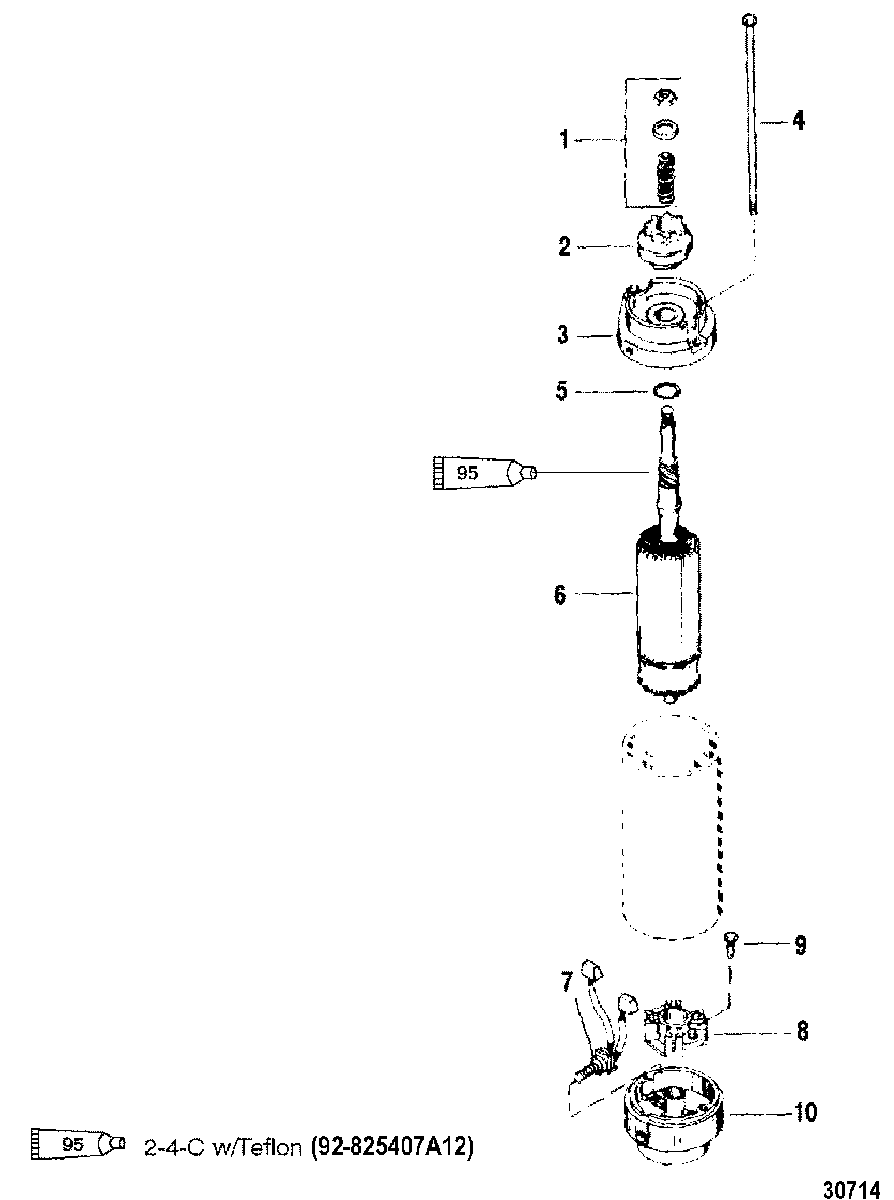

Starter Motor для Mariner - V-200 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
-50-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190645 DRIVE KITDRIVE KIT
-
213310T1 PINION ASSEMBLYPINION ASSEMBLY
-
375660 PLATEPLATE
-
410-749681 THRU BOLTTHRU BOLT
-
5NSS NOT SOLD SEPARATE, Washer (UNITED TECHNOLOGY #WA3122)NOT SOLD SEPARATE, Washer (UNITED TECHNOLOGY #WA3122)
-
679216 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
8898265014 HOLDERHOLDER
-
9NSS NOT SOLD SEPARATE, Screw (UNITED TECHNOLOGY #02441-22-SC30SM)NOT SOLD SEPARATE, Screw (UNITED TECHNOLOGY #02441-22-SC30SM)
-
1015386001 END CAPEND CAP
