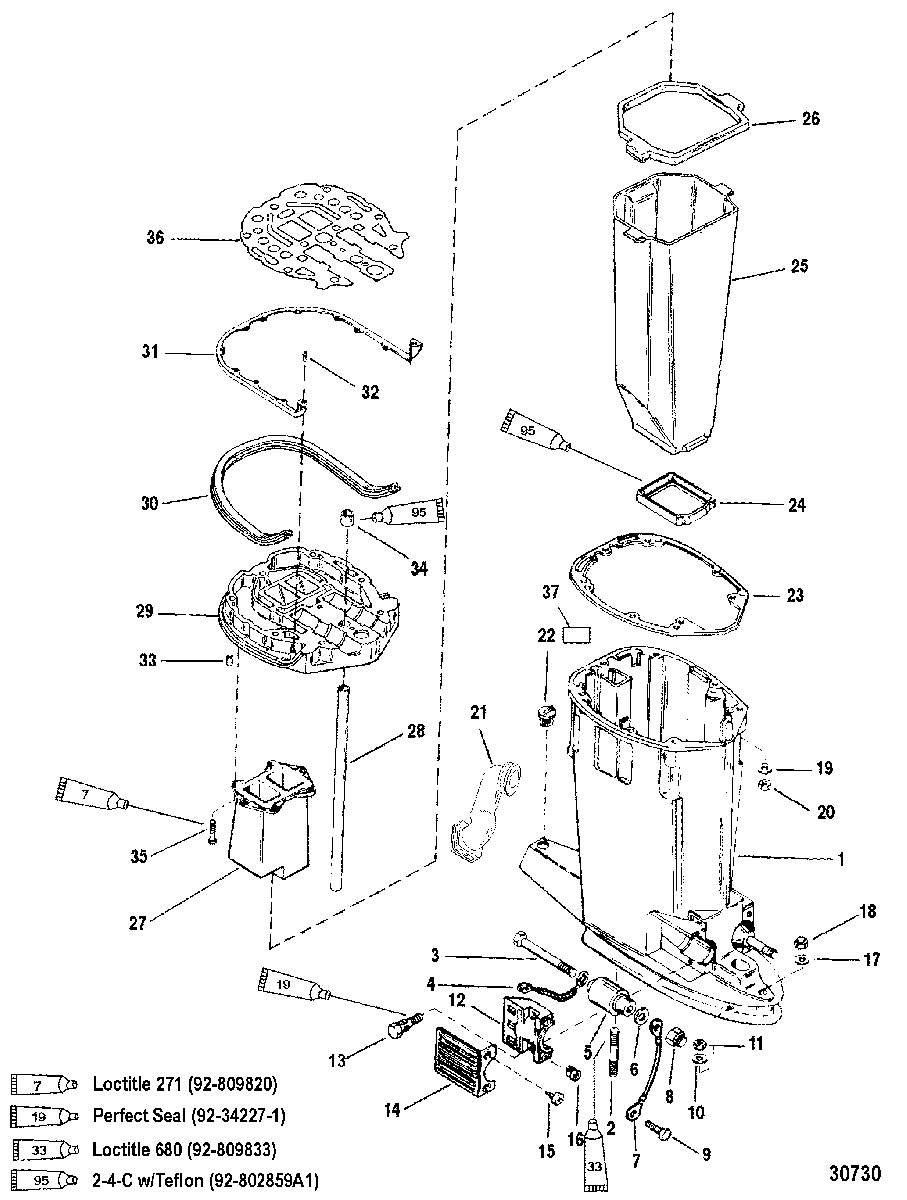

DRIVE SHAFT HOUSING AND EXHAUST TUBE для Mariner - V-200 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
11590-8343T10 HOUSING ASSEMBLY, Driveshaft - Black - LongHOUSING ASSEMBLY, Driveshaft - Black - Long
-
13503-813563T1 HOUSING, Driveshaft - Black - X-LongHOUSING, Driveshaft - Black - X-Long
-
216-56295 STUD, (.437 x 2.69)STUD, (.437 x 2.69)
-
310-898831 SCREW, (.500-20 x 6.00)SCREW, (.500-20 x 6.00)
-
488238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
577327 MOUNTMOUNT
-
612-49339 WASHER, (.8125)WASHER, (.8125)
-
788238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
811-898832 NUT, (.500-20)NUT, (.500-20)
-
910-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
1012-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
1111-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1254-8M0036782 CLAMPCLAMP
-
1310-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
14100-8M4500752 COVER, BlackCOVER, Black
-
1510-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1611-35521 NUTNUT
-
1712-48926 WASHERWASHER
-
1811-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1912-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2011-69254 NUTNUT
-
218M0039081 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2219-64649 PLUGPLUG
-
2327-991734 GASKETGASKET
-
2466350001 SEAL (LOWER)SEAL (LOWER)
-
2518276T TUBE, ExhaustTUBE, Exhaust
-
268M0039076 SEAL (UPPER)SEAL (UPPER)
-
27812834A2 EXTENSION, Exhaust (13-1/2 IN.)
(150/175)EXTENSION, Exhaust (13-1/2 IN.)
(150/175) -
27879288T71 EXTENSION, Exhaust (7-1/2 IN.)
(200)EXTENSION, Exhaust (7-1/2 IN.)
(200) -
2832-8M0042788 TUBE, Water
(LONG)TUBE, Water
(LONG) -
2832-8M0042790 TUBE
(X-LONG)TUBE
(X-LONG) -
2918233A20 PLATE ASSEMBLY, Driveshaft HousingPLATE ASSEMBLY, Driveshaft Housing
-
308M0043165 SEALSEAL
-
3168011 BRACKETBRACKET
-
3210-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
3426-38970 SEALSEAL
-
3510-90192 SCREW, (.250-20 x .750) Stainless SteelSCREW, (.250-20 x .750) Stainless Steel
-
3627-183076 GASKETGASKET
-
37NSS NOT SOLD SEPARATE, DECAL, Counter RotationNOT SOLD SEPARATE, DECAL, Counter Rotation
-
-27-815791A00 GASKET SET, EngineGASKET SET, Engine
