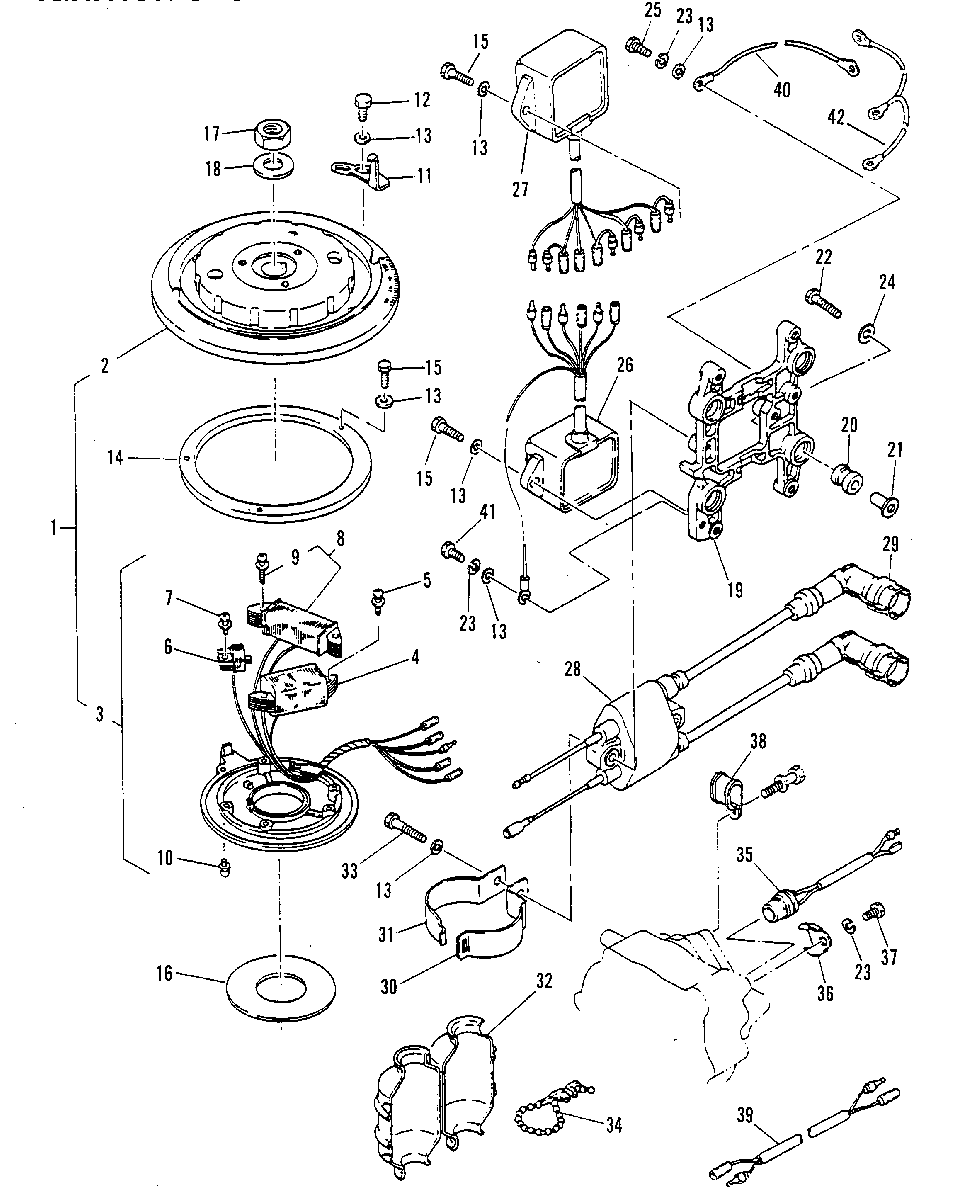

IGNITION SYSTEM для Mariner - W-55 663-578278 AND UP
-
№АртикулНазвание
-
1253-8816M C.D.I. MAGNETO ASSEMBLYC.D.I. MAGNETO ASSEMBLY
-
241303M FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
341304M BASE ASSEMBLYBASE ASSEMBLY
-
441829T COIL (CHARGE)COIL (CHARGE)
-
510-96346M SCREWSCREW
-
641830M COIL, TRIGGERCOIL, TRIGGER
-
710-91691M SCREWSCREW
-
841831M COIL, LIGHTINGCOIL, LIGHTING
-
910-97803M SCREWSCREW
-
1084305M BALL JOINTBALL JOINT
-
1197074M TIMING PLATETIMING PLATE
-
1210-826957M BOLTBOLT
-
1312-82214M WASHERWASHER
-
1482678M RETAINERRETAINER
-
1510-84058M BOLTBOLT
-
1612-81343M WASHERWASHER
-
1711-893789 NUTNUT
-
1812-893762 WASHERWASHER
-
1941302M BRACKETBRACKET
-
2025-881304 GROMMET
SERIAL (M-271949 ML-586106) AND ABOVEGROMMET
SERIAL (M-271949 ML-586106) AND ABOVE -
2081523M GROMMET
SERIAL (M-271948 ML-586105) AND BELOWGROMMET
SERIAL (M-271948 ML-586105) AND BELOW -
2123-804344003 BUSHINGBUSHING
-
2210-95629M BOLT (W/WASHER)
SERIAL (M-271272 ML-581824) AND ABOVEBOLT (W/WASHER)
SERIAL (M-271272 ML-581824) AND ABOVE -
2210-82405M BOLT
SERIAL (M-271271 ML-581823) AND BELOWBOLT
SERIAL (M-271271 ML-581823) AND BELOW -
2313-82212M LOCKWASHERLOCKWASHER
-
2412-83769M WASHER
SERIAL (M-271271 ML-581823) AND BELOWWASHER
SERIAL (M-271271 ML-581823) AND BELOW -
2510-91772M BOLTBOLT
-
2641305M C.D.I.ASSEMBLYC.D.I.ASSEMBLY
-
2741306M CONTROL ASSEMBLYCONTROL ASSEMBLY
-
2895188T IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
2985-815119M CAP (NOISE SUPPRESSOR)CAP (NOISE SUPPRESSOR)
-
2985-63709A1 CAPCAP
-
3041833M CLAMPCLAMP
-
3141834M CLAMPCLAMP
-
3241835M COVERCOVER
-
3310-83285M BOLTBOLT
-
3454-95636M CLAMPCLAMP
-
3587-97834M THERMO-SWITCH ASSEMBLYTHERMO-SWITCH ASSEMBLY
-
3697835M PLATEPLATE
-
3710-84088M BOLTBOLT
-
3854-83577M CLAMPCLAMP
-
3984-41310M GROUND WIREGROUND WIRE
-
4084-81250M GROUND WIREGROUND WIRE
-
4110-91772M BOLTBOLT
-
4284-97078M GROUND WIREGROUND WIRE
