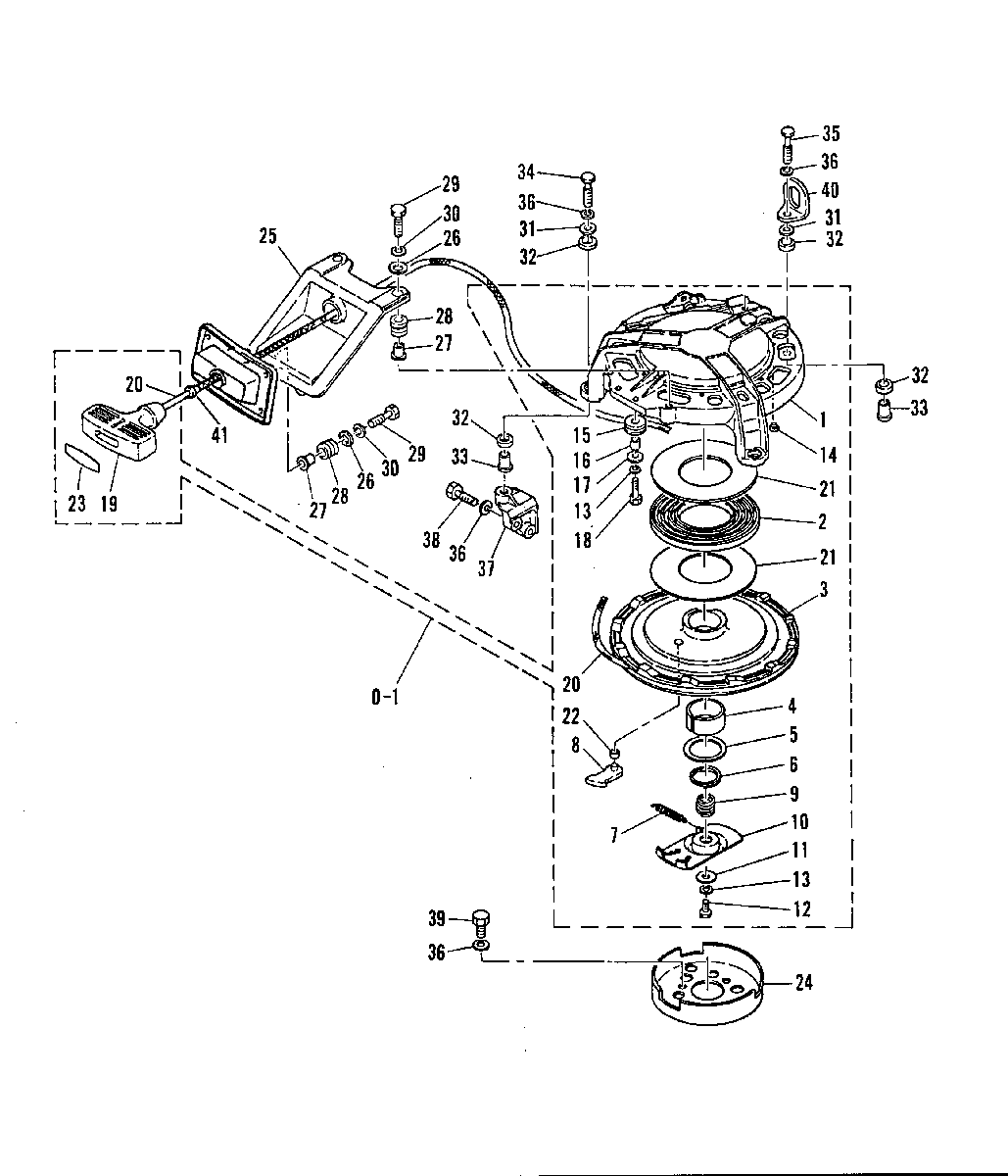

RECOIL STARTER для Mariner - W-55 663-578278 AND UP
-
№АртикулНазвание
-
0-117150M STARTER ASSY.
SERIAL (M-271659 ML-583881) AND ABOVESTARTER ASSY.
SERIAL (M-271659 ML-583881) AND ABOVE -
0-117150M STARTER ASSY.
SERIAL (M-271658 ML-583880) AND BELOWSTARTER ASSY.
SERIAL (M-271658 ML-583880) AND BELOW -
184449M STARTER HOUSINGSTARTER HOUSING
-
224-81295M SPRINGSPRING
-
350-81296M STARTER PULLEYSTARTER PULLEY
-
423-81309M COLLARCOLLAR
-
512-81301M WASHERWASHER
-
653-81305M SNAP RINGSNAP RING
-
724-41294M SPRINGSPRING
-
819136M PAWLPAWL
-
924-81297M SPRINGSPRING
-
1041295M CAMCAM
-
1112-81299M WASHERWASHER
-
1210-826957M BOLTBOLT
-
1313-82212M LOCKWASHERLOCKWASHER
-
1419-41293M PLUGPLUG
-
1581307M ROLLERROLLER
-
1623-11705M BUSHINGBUSHING
-
1713-11706M WASHERWASHER
-
1810-83141M BOLTBOLT
-
19814491M STARTER HANDLE
SERIAL (M-272296 ML-589631) AND ABOVESTARTER HANDLE
SERIAL (M-272296 ML-589631) AND ABOVE -
19814491A1 STARTER HANDLE
SERIAL (M-272295 ML-589630) AND BELOWSTARTER HANDLE
SERIAL (M-272295 ML-589630) AND BELOW -
2050-12066Q10 STARTER ROPESTARTER ROPE
-
2112-83151M WASHERWASHER
-
2223-83150M BUSHINGBUSHING
-
23814492M COVER
SERIAL (M-272296 ML-589631) AND ABOVECOVER
SERIAL (M-272296 ML-589631) AND ABOVE -
23814491A1 COVER
SERIAL (M-272295 ML-589630) AND BELOWCOVER
SERIAL (M-272295 ML-589630) AND BELOW -
2417151M DRIVE CUP
SERIAL (M-271659 ML-583881) AND ABOVEDRIVE CUP
SERIAL (M-271659 ML-583881) AND ABOVE -
2417151M DRIVE CUP
SERIAL (M-271658 ML-583880) AND BELOWDRIVE CUP
SERIAL (M-271658 ML-583880) AND BELOW -
2581310M GUIDEGUIDE
-
2612-82213M WASHERWASHER
-
2723-804344003 BUSHINGBUSHING
-
2825-881304 MOUNT
SERIAL (M-271949 ML-586106) AND ABOVEMOUNT
SERIAL (M-271949 ML-586106) AND ABOVE -
2881523M MOUNT
SERIAL (M-271948 ML-586105) AND BELOWMOUNT
SERIAL (M-271948 ML-586105) AND BELOW -
2910-83285M BOLTBOLT
-
3013-82212M LOCKWASHERLOCKWASHER
-
3113-81799M LOCKWASHERLOCKWASHER
-
3223-11710M GROMMETGROMMET
-
3323-84489M COLLARCOLLAR
-
3410-82442M BOLTBOLT
-
3510-84236M BOLTBOLT
-
3613-82215M LOCKWASHERLOCKWASHER
-
3781313M BRACKETBRACKET
-
3810-82441M BOLTBOLT
-
3910-41826M BOLTBOLT
-
4041827M ENGINE HANGERENGINE HANGER
-
4125-95635M GROMMETGROMMET
