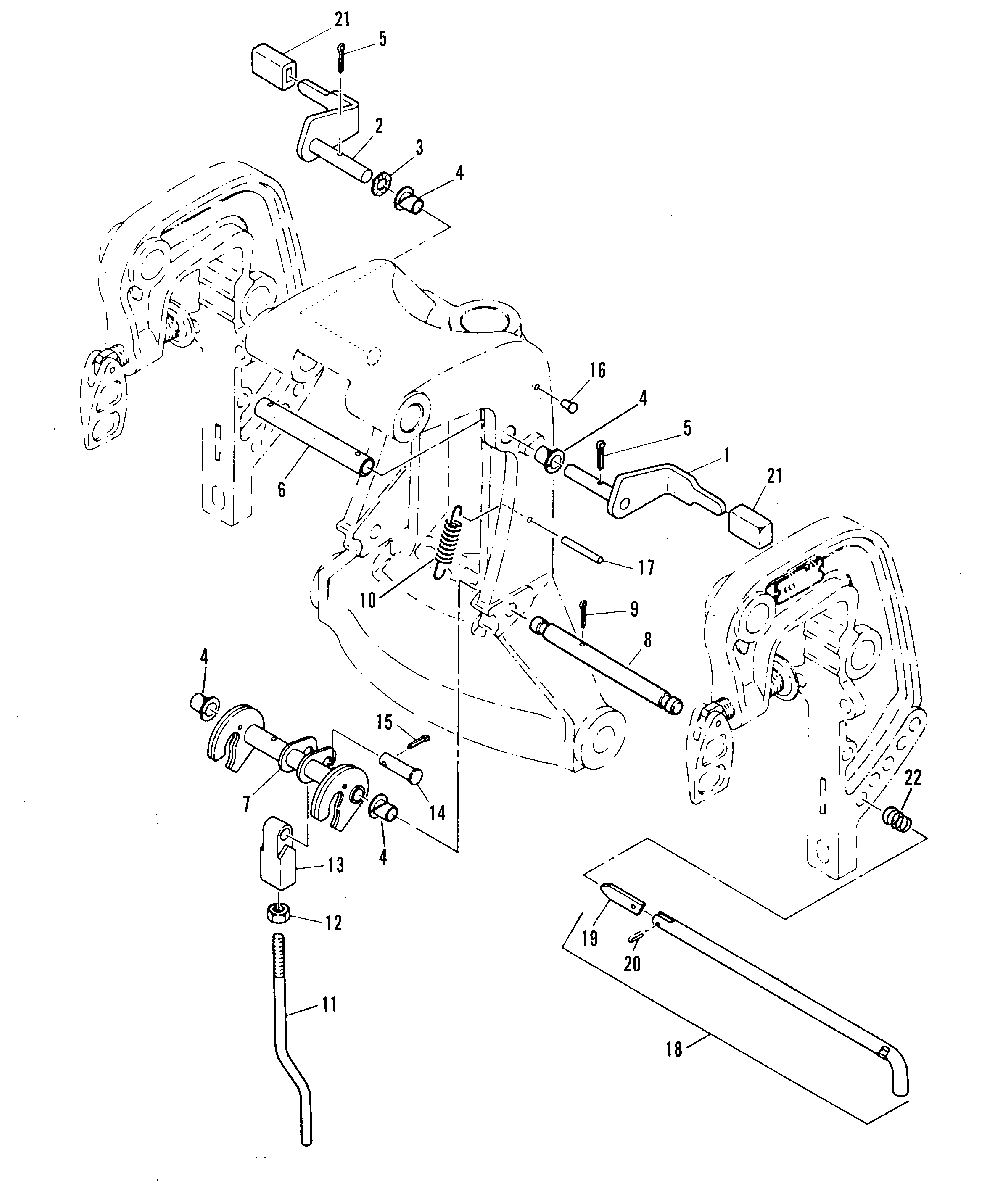

REVERSE LOCK для Mariner - W-55 663-578278 AND UP
-
№АртикулНазвание
-
181393M TILT STOP LEVER (PORT)TILT STOP LEVER (PORT)
-
281394M TILT STOP LEVER (STARBOARD)TILT STOP LEVER (STARBOARD)
-
313-92652M WAVE WASHERWAVE WASHER
-
423-81947M BUSHINGBUSHING
-
518-82132M COTTER PINCOTTER PIN
-
623-81980M COLLARCOLLAR
-
741315M REVERSE LOCKREVERSE LOCK
-
817-41314M ROD REVERSE LOCKROD REVERSE LOCK
-
918-82130M COTTER PINCOTTER PIN
-
1024-82103M SPRINGSPRING
-
1183132M ROD, REVERSE LOCK (M)ROD, REVERSE LOCK (M)
-
1183065M ROD, REVERSE LOCK (ML)ROD, REVERSE LOCK (ML)
-
1211-82382M NUTNUT
-
1381400M NUT, ADJUSTINGNUT, ADJUSTING
-
1417-82138M CLEVIS PINCLEVIS PIN
-
1518-82128M COTTER PINCOTTER PIN
-
1617-81909M RIVETRIVET
-
1717-82159M ROLL PINROLL PIN
-
1817-814972T TILT LOCK PINTILT LOCK PIN
-
1984044M STOPPER PLATESTOPPER PLATE
-
2017-82146M ROLL PINROLL PIN
-
2181395M COVERCOVER
-
2224-814973M SPRING
SERIAL (M-272296 ML-589631) AND ABOVESPRING
SERIAL (M-272296 ML-589631) AND ABOVE
