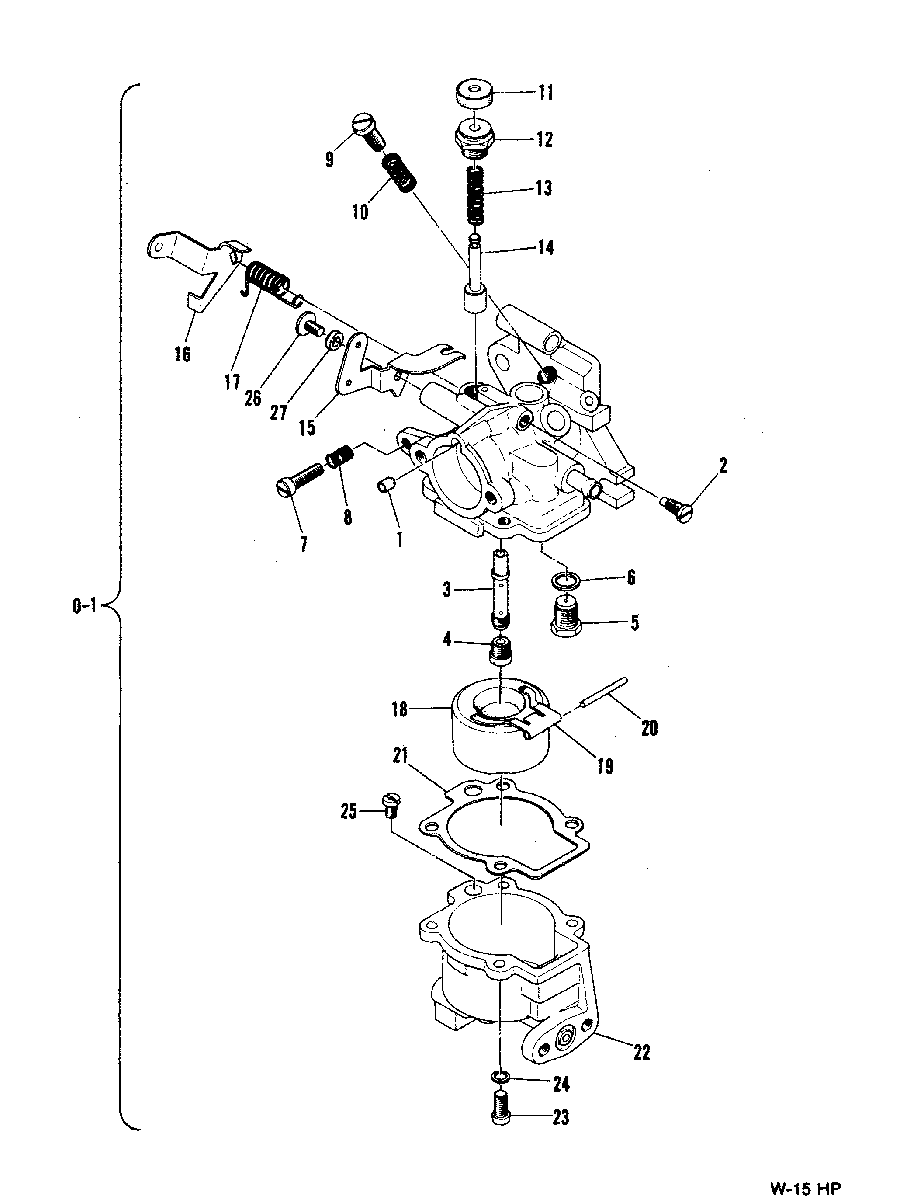

CARBURETOR для Mariner - W15 (ML) 662-33771 THRU 662-304410
-
№АртикулНазвание
-
0-11383-6819M CARBURETOR ASS'YCARBURETOR ASS'Y
-
180585M AIR JET, LOW SPEEDAIR JET, LOW SPEED
-
280578M JET, LOW SPEED (#60)JET, LOW SPEED (#60)
-
380941M NOZZLE, MAINNOZZLE, MAIN
-
480581M JET, MAIN (#135)JET, MAIN (#135)
-
580447M INLET VALVE SEAT ASS'YINLET VALVE SEAT ASS'Y
-
627-80205M GASKET, VALVE SEATGASKET, VALVE SEAT
-
710-80738M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
824-80193M SPRING, IDLE SPEED SCREWSPRING, IDLE SPEED SCREW
-
910-80573M SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
1024-80575M SPRING, IDLE MIXTURE SCREWSPRING, IDLE MIXTURE SCREW
-
1180196M COVER, CHOKE PLUNGER CAPCOVER, CHOKE PLUNGER CAP
-
1280197M CAP, CHOKE PLUNGERCAP, CHOKE PLUNGER
-
1324-80194M SPRING, CHOKE PLUNGERSPRING, CHOKE PLUNGER
-
1480195M PLUNGER, CHOKEPLUNGER, CHOKE
-
1580198M LEVER, CHOKELEVER, CHOKE
-
1683217M LEVER, THROTTLELEVER, THROTTLE
-
1724-80574M RETURN SPRING, THROTTLE LEVERRETURN SPRING, THROTTLE LEVER
-
1880450M FLOATFLOAT
-
1980203M ARM, FLOATARM, FLOAT
-
2017-80451M PIN, FLOATPIN, FLOAT
-
2127-80740M GASKET, FLOAT BOWLGASKET, FLOAT BOWL
-
2283114M BOWL, FLOATBOWL, FLOAT
-
2310-83509M SCREWSCREW
-
2413-82206M WASHER, LOCKWASHER, LOCK
-
2580584M JET, STARTERJET, STARTER
-
2610-83112M SET SCREWSET SCREW
-
2783115M COLLARCOLLAR
-
2784474M REPAIR KIT, CARBURETOR
REPLACEMENT PARTSREPAIR KIT, CARBURETOR
REPLACEMENT PARTS
