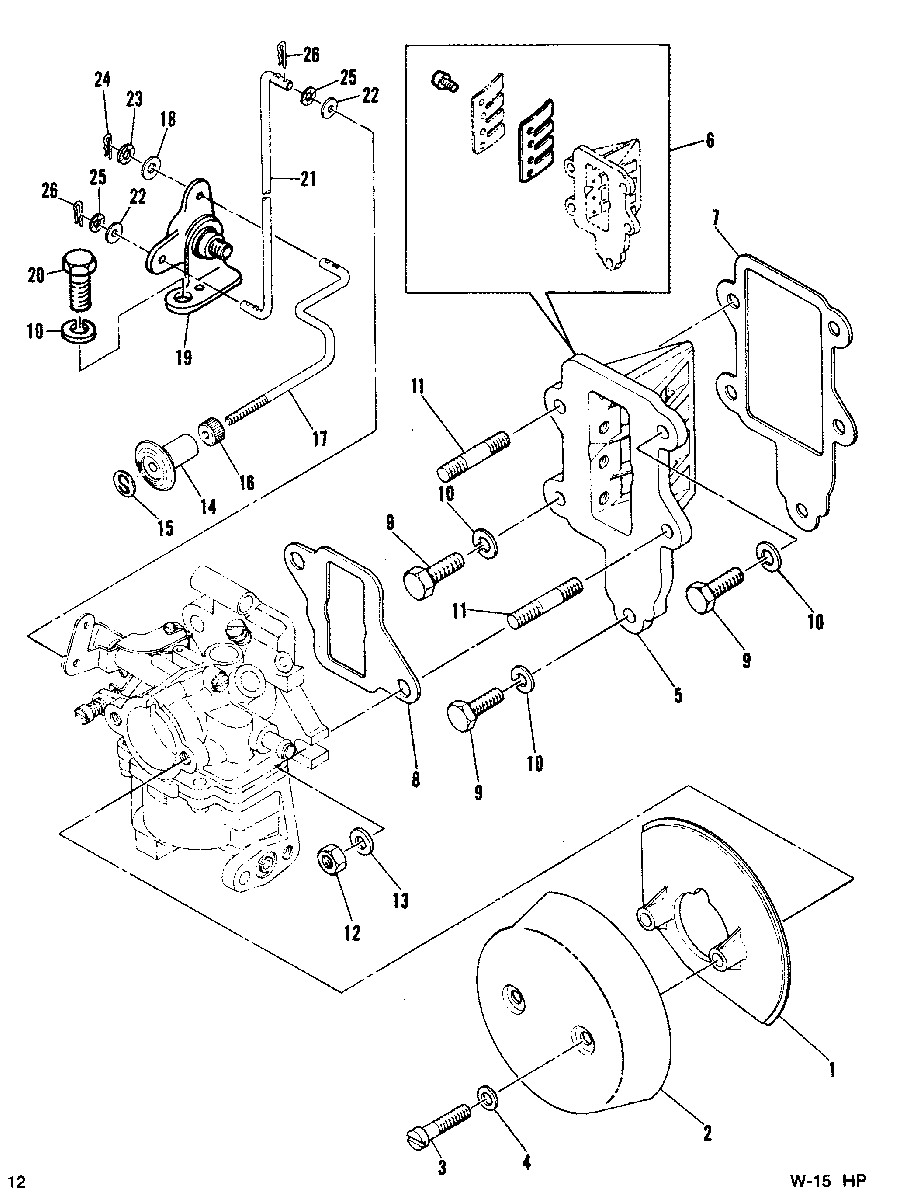

INTAKE MANIFOLD AND CHOKE для Mariner - W15 (ML) 662-33771 THRU 662-304410
-
№АртикулНазвание
-
181212M BASE, AIR INTAKE COVERBASE, AIR INTAKE COVER
-
281213M COVER, AIR INTAKECOVER, AIR INTAKE
-
310-83108M SCREWSCREW
-
412-82211M WASHERWASHER
-
534-81209M REED VALVE ASS'YREED VALVE ASS'Y
-
634-84491M REED SET (REED STOPS NOT INCLUDED)REED SET (REED STOPS NOT INCLUDED)
-
727-81210M GASKET, REED VALVEGASKET, REED VALVE
-
827-81211M GASKET, CARBURETOR TO REED VALVEGASKET, CARBURETOR TO REED VALVE
-
910-82423M BOLTBOLT
-
1013-82212M WASHER, LOCKWASHER, LOCK
-
1116-81729M STUDSTUD
-
1211-82390M NUTNUT
-
1312-82214M WASHER, LOCKWASHER, LOCK
-
1480149M KNOB, CHOKEKNOB, CHOKE
-
1580128M INDICATOR, CHOKEINDICATOR, CHOKE
-
1623-80053M BUSHING, CHOKE KNOBBUSHING, CHOKE KNOB
-
1780766M LONK ROD, CHOKELONK ROD, CHOKE
-
1812-82847M WASHERWASHER
-
1983110M CHOKE LINK ASS'YCHOKE LINK ASS'Y
-
2010-84088M BOLTBOLT
-
2181228M LONK ROD, CHOKE LEVERLONK ROD, CHOKE LEVER
-
2212-82933M WASHERWASHER
-
2313-81864M WASHER, LOCKWASHER, LOCK
-
2418-82051M PINPIN
-
2513-81863M WASHER, LOCKWASHER, LOCK
-
2618-82050M PINPIN
