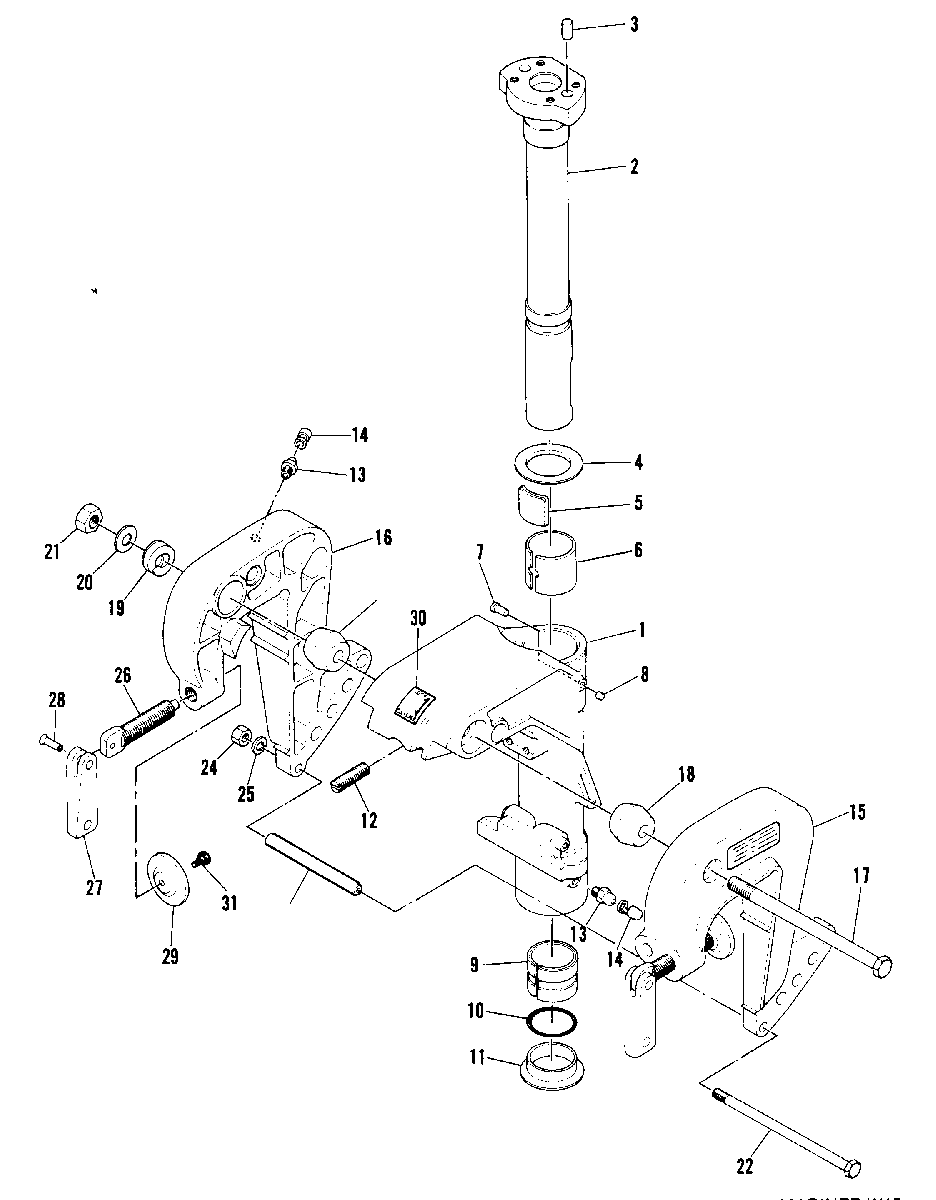

CLAMP AND SWIVEL BRACKET для Mariner - W15 662-001846 AND UP
-
№АртикулНазвание
-
11485-6756M SWIVEL BRACKETSWIVEL BRACKET
-
280880M SHAFT, STEERING PIVOTSHAFT, STEERING PIVOT
-
317-82368M PIN, DOWELPIN, DOWEL
-
412-81872M COLLAR, THRUST (PIVOT SHAFT)COLLAR, THRUST (PIVOT SHAFT)
-
580225M PLATE, FRICTIONPLATE, FRICTION
-
623-81960M BUSHING, PIVOT SHAFT (UPPER)BUSHING, PIVOT SHAFT (UPPER)
-
717-81887M PINPIN
-
822-81917M PLUGPLUG
-
923-81956M BUSHING, PIVOT SHAFT (LOWER)BUSHING, PIVOT SHAFT (LOWER)
-
1025-82273M O-RING, PIVOT SHAFT BUSHINGO-RING, PIVOT SHAFT BUSHING
-
1123-81958M COLLAR, THRUST (PIVOT SHAFT)COLLAR, THRUST (PIVOT SHAFT)
-
1210-81721M SCREWSCREW
-
1322-82369M FITTING, GREASEFITTING, GREASE
-
1481439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
151484-9064M CLAMP BRACKET (PORT)
SERIAL 00004326-09999999CLAMP BRACKET (PORT)
SERIAL 00004326-09999999 -
151484-6754M CLAMP BRACKET (PORT)
SERIAL 00000000-00004325CLAMP BRACKET (PORT)
SERIAL 00000000-00004325 -
161484-9065M CLAMP BRACKET (STARBOARD)
SERIAL 00004326-09999999CLAMP BRACKET (STARBOARD)
SERIAL 00004326-09999999 -
161484-6755M CLAMP BRACKET (STARBOARD)
SERIAL 00000000-00004325CLAMP BRACKET (STARBOARD)
SERIAL 00000000-00004325 -
1710-81708M BOLTBOLT
-
1880230M MOUNT, RUBBER CLAMP BRACKETMOUNT, RUBBER CLAMP BRACKET
-
1924-82101M SPRINGSPRING
-
2012-81806M WASHERWASHER
-
2111-82395M NUTNUT
-
2210-82921M BOLT, CLAMP BRACKETBOLT, CLAMP BRACKET
-
2323-82116M SPACER, CLAMP BRACKET BOLTSPACER, CLAMP BRACKET BOLT
-
2411-82389M NUTNUT
-
2513-82212M LOCKWASHERLOCKWASHER
-
2610-43098M SCREW, TRANSOM CLAMP
SERIAL 00004326-09999999SCREW, TRANSOM CLAMP
SERIAL 00004326-09999999 -
2610-81756M SCREW, TRANSOM CLAMP
SERIAL 00000000-00004325SCREW, TRANSOM CLAMP
SERIAL 00000000-00004325 -
27809959M HANDLE, TRANSOM CLAMP SCREWHANDLE, TRANSOM CLAMP SCREW
-
2817-81888M PINPIN
-
2912-43099M PAD, TRANSOM CLAMP SCREW
SERIAL 00004326-09999999PAD, TRANSOM CLAMP SCREW
SERIAL 00004326-09999999 -
2912-80638M PAD, TRANSOM CLAMP SCREW
SERIAL 00000000-00004325PAD, TRANSOM CLAMP SCREW
SERIAL 00000000-00004325 -
3083713M INDICATORINDICATOR
-
3110-43097M BOLT
SERIAL 00004326-09999999BOLT
SERIAL 00004326-09999999
