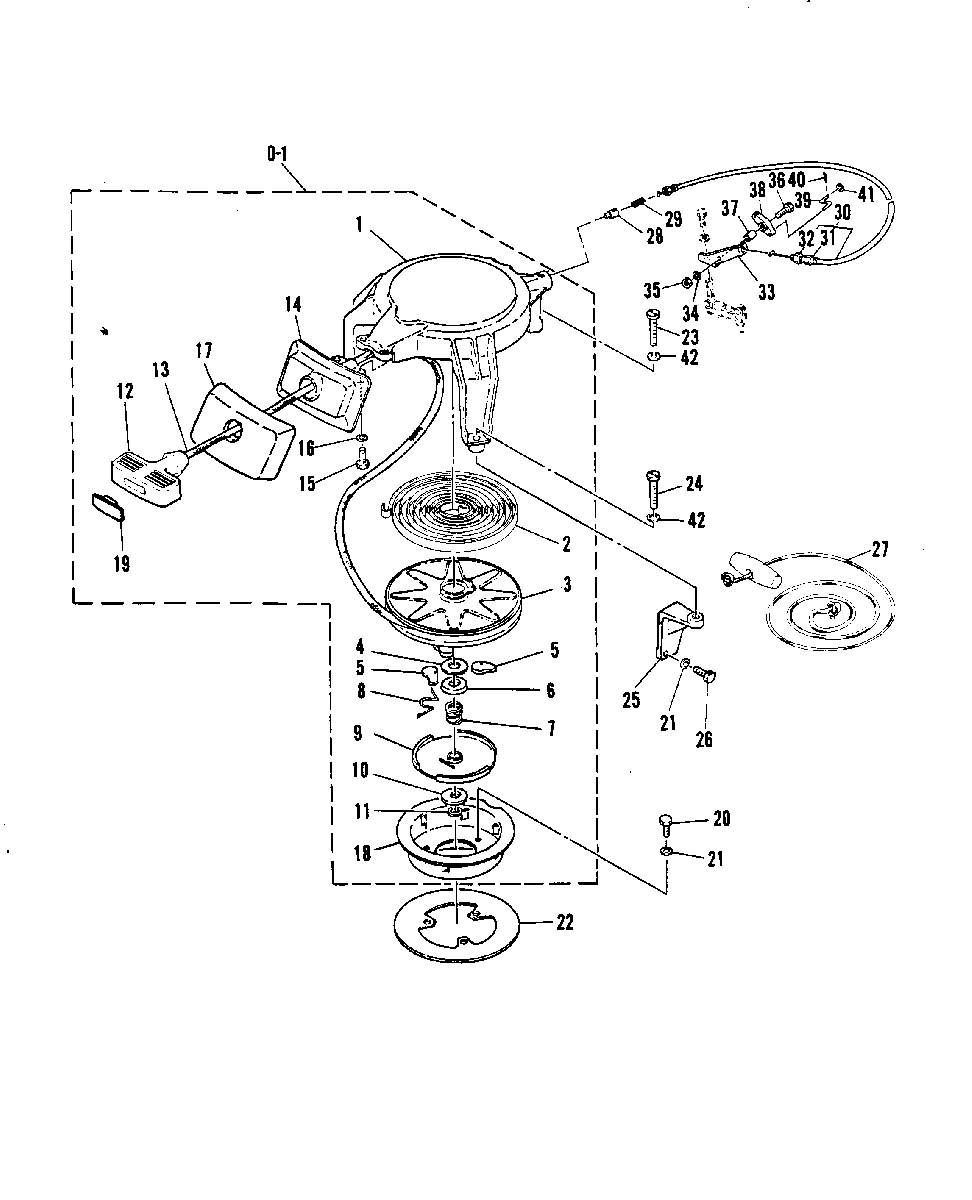

RECOIL STARTER для Mariner - W15 662-001846 AND UP
-
№АртикулНазвание
-
0-150-97125M STARTER ASS'Y
SERIAL 00002086-09999999STARTER ASS'Y
SERIAL 00002086-09999999 -
0-150-84499M STARTER ASS'Y
SERIAL 00000000-00002085STARTER ASS'Y
SERIAL 00000000-00002085 -
12169-7174M HOUSING, STARTER .
SERIAL 00004784-09999999HOUSING, STARTER .
SERIAL 00004784-09999999 -
12169-7174M HOUSING, STARTER .
SERIAL 00000000-00004783HOUSING, STARTER .
SERIAL 00000000-00004783 -
224-80207M SPRING, STARTERSPRING, STARTER
-
350-80208M SHEAVE, STARTER
SERIAL 00004326-09999999SHEAVE, STARTER
SERIAL 00004326-09999999 -
350-84500M SHEAVE, STARTER
SERIAL 00000000-00004325SHEAVE, STARTER
SERIAL 00000000-00004325 -
412-80213M WASHER, THRUSTWASHER, THRUST
-
580214M PAWL, STARTERPAWL, STARTER
-
612-80211M WASHER, THRUST PLATE SPRINGWASHER, THRUST PLATE SPRING
-
724-80209M SPRING, DRIVE PLATESPRING, DRIVE PLATE
-
824-81696M SPRING, STARTER PAWLSPRING, STARTER PAWL
-
980210M DRIVE, PLATEDRIVE, PLATE
-
1012-80212M WASHERWASHER
-
1153-81693M SNAP RINGSNAP RING
-
12814491A1 HANDLE, STARTERHANDLE, STARTER
-
1350-12066Q10 STARTER ROPESTARTER ROPE
-
1494669M GUIDE, ROPE .
SERIAL 00002086-09999999GUIDE, ROPE .
SERIAL 00002086-09999999 -
1481218M GUIDE, ROPE .
SERIAL 00000000-00002085GUIDE, ROPE .
SERIAL 00000000-00002085 -
1510-826957M BOLTBOLT
-
1613-82212M LOCKWASHERLOCKWASHER
-
1726-43087M SEALSEAL
-
1884501M PULLEY, STARTERPULLEY, STARTER
-
19814491A1 COVER .
SERIAL 00004326-09999999COVER .
SERIAL 00004326-09999999 -
2010-84211M BOLTBOLT
-
2113-82212M LOCKWASHERLOCKWASHER
-
2281247M BASE, STARTER PULLEYBASE, STARTER PULLEY
-
2310-83285M BOLTBOLT
-
2410-82405M BOLTBOLT
-
2581219M BRACKET, STARTER HOUSINGBRACKET, STARTER HOUSING
-
2610-84058M BOLTBOLT
-
2747341A11 EMERGENCY STARTER ROPEEMERGENCY STARTER ROPE
-
2881106M PLUNGERPLUNGER
-
2924-82079M SPRINGSPRING
-
3084-43088M STARTER LOCKOUT WIRE ASS'Y
SERIAL 00004326-09999999STARTER LOCKOUT WIRE ASS'Y
SERIAL 00004326-09999999 -
3084-84502M STARTER LOCKOUT WIRE ASS'Y
SERIAL 00000000-00004325STARTER LOCKOUT WIRE ASS'Y
SERIAL 00000000-00004325 -
3110-81746M ADJUSTING COLLARADJUSTING COLLAR
-
3211-82389M NUTNUT
-
3384503M BRACKETBRACKET
-
3413-82212M LOCKWASHERLOCKWASHER
-
3511-82389M NUTNUT
-
3610-82405M BOLTBOLT
-
3723-84055M BISJOMGBISJOMG
-
3884504M ARM, LINKARM, LINK
-
3984505M LINKLINK
-
4018-43089M PIN, COTTERPIN, COTTER
-
4112-82209M WASHERWASHER
-
4212-82214M WASHER
SERIAL 00005135-09999999WASHER
SERIAL 00005135-09999999
