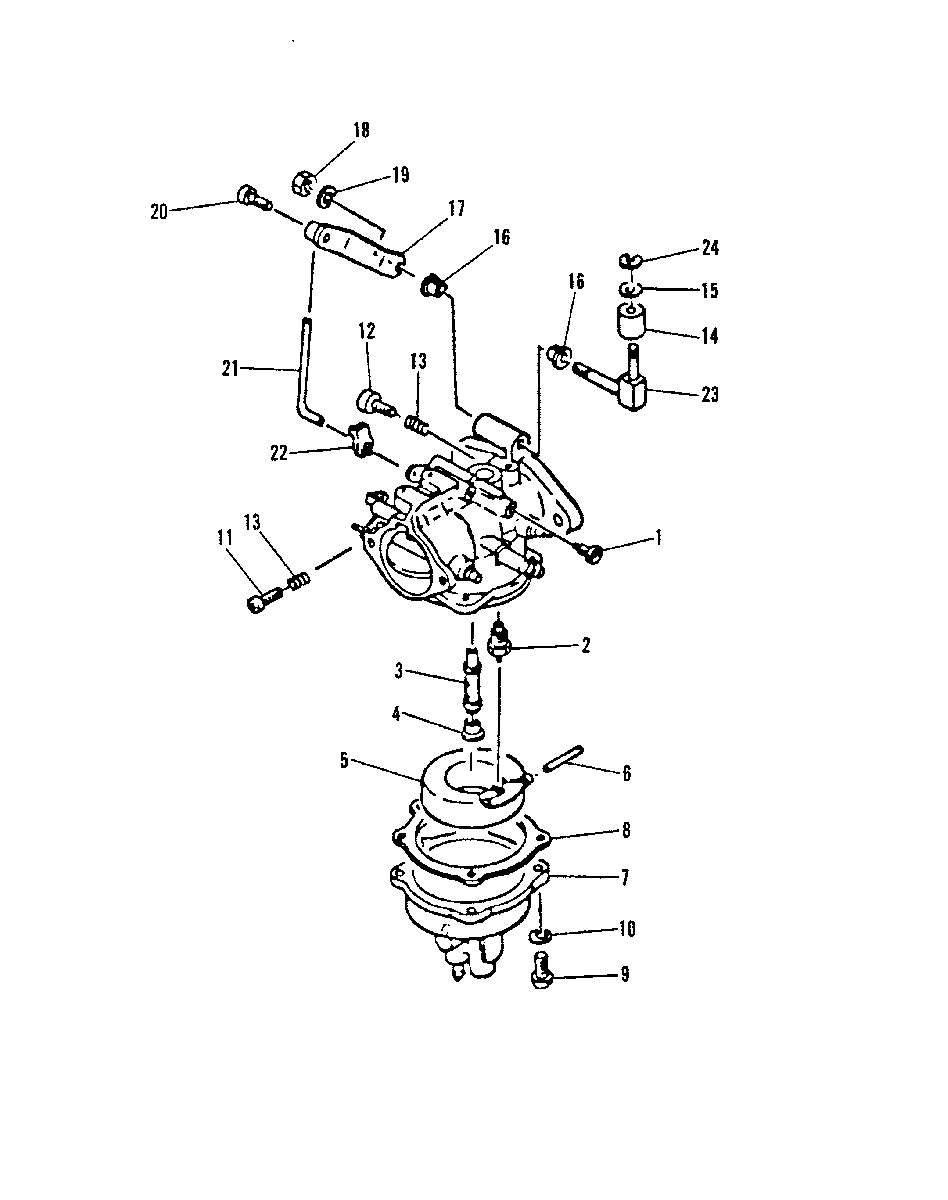

CARBURETOR для Mariner - W25 (M) 648-019426 AND UP
-
№АртикулНазвание
-
0-11383-8431M CARBURETOR ASS'YCARBURETOR ASS'Y
-
180578M JET, LOW SPEED (#60)JET, LOW SPEED (#60)
-
280593M INLET VALVE & SEATINLET VALVE & SEAT
-
380576M NOZZLE, MAINNOZZLE, MAIN
-
480582M JET, MAIN (#140)JET, MAIN (#140)
-
580591M FLOATFLOAT
-
617-11794M PIN, FLOATPIN, FLOAT
-
783200M FLOAT BOWLFLOAT BOWL
-
827-80590M GASKET, FLOAT BOWLGASKET, FLOAT BOWL
-
910-82515M SCREWSCREW
-
1013-82206M WASHER, LOCKWASHER, LOCK
-
1110-83509M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1210-80573M SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
1324-80575M SPRINGSPRING
-
1423-84454M BUSHING, THROTTLE SHAFTBUSHING, THROTTLE SHAFT
-
1512-82209M WASHERWASHER
-
1623-81941M BUSHING, THROTTLE SHAFTBUSHING, THROTTLE SHAFT
-
1780622M LEVER, THROTTLELEVER, THROTTLE
-
1811-83763M NUTNUT
-
1913-82186M WASHER, LOCKWASHER, LOCK
-
2010-83112M SET SCREW, THROTTLE LEVERSET SCREW, THROTTLE LEVER
-
2183160M LINK ROD, THROTTLE LEVERLINK ROD, THROTTLE LEVER
-
2216333 JOINTJOINT
-
23811037M SHAFT, THROTTLESHAFT, THROTTLE
-
2453-82328M SNAP RINGSNAP RING
-
24811038M REPAIR KIT, CARBURETORREPAIR KIT, CARBURETOR
