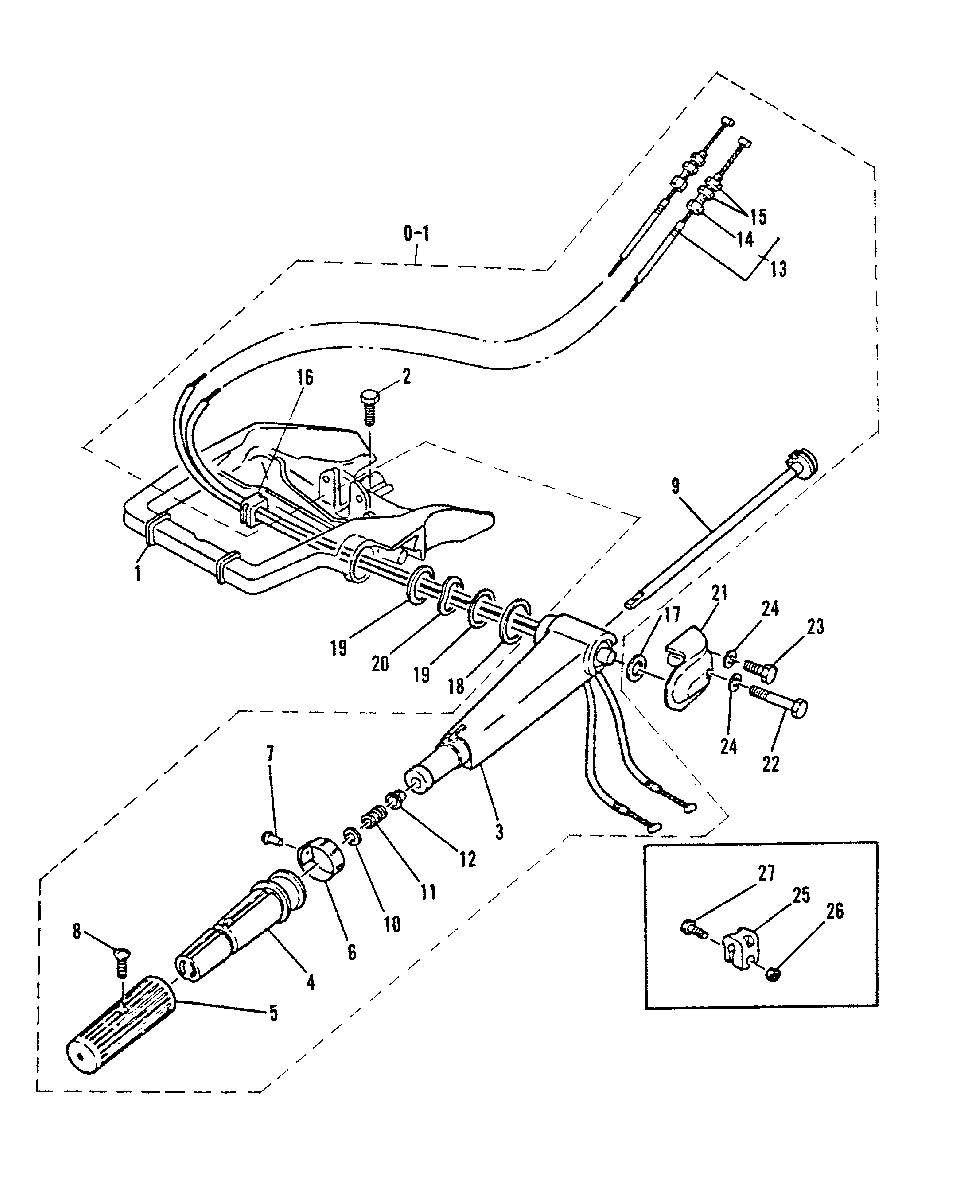

STEERING HANDLE для Mariner - W25 (M) 648-019426 AND UP
-
№АртикулНазвание
-
119113M BRACKET, STEERING 1BRACKET, STEERING 1
-
210-84830M BOLTBOLT
-
0-197045M STEERING HANDLE ASS'YSTEERING HANDLE ASS'Y
-
396664M HANDLE, STEERINGHANDLE, STEERING
-
581585M HANDLE, THROTTLEHANDLE, THROTTLE
-
58M0080456 GRIP, THROTTLE HANDLEGRIP, THROTTLE HANDLE
-
697775M INDICATOR, THROTTLE
SERIAL 00022741-09999999INDICATOR, THROTTLE
SERIAL 00022741-09999999 -
697046M INDICATOR, THROTTLE
SERIAL 00000000-00022740INDICATOR, THROTTLE
SERIAL 00000000-00022740 -
717-81907M RIVETRIVET
-
810-811916M SCREWSCREW
-
984856M LEVER, THROTTLELEVER, THROTTLE
-
1012-82220M WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
1124-82095M SPRINGSPRING
-
1223-81945M BUSHING, STEERING ARMBUSHING, STEERING ARM
-
1397047M CABLE ASS'Y, THROTTLECABLE ASS'Y, THROTTLE
-
1410-815139M ADJUSTER, CABLEADJUSTER, CABLE
-
1511-81765M NUTNUT
-
1625-82064M GROMMETGROMMET
-
1723-82119M SPACERSPACER
-
1823-81861M SPACERSPACER
-
1912-84850M WASHERWASHER
-
2013-84851M WASHER, WAVEWASHER, WAVE
-
2184852M RETAINERRETAINER
-
2210-84931M BOLTBOLT
-
2310-84058M BOLTBOLT
-
2412-82214M WASHER, LOCKWASHER, LOCK
-
2582895M PIECE, FRICTIONPIECE, FRICTION
-
2611-83056M NUTNUT
-
2710-84058M BOLTBOLT
