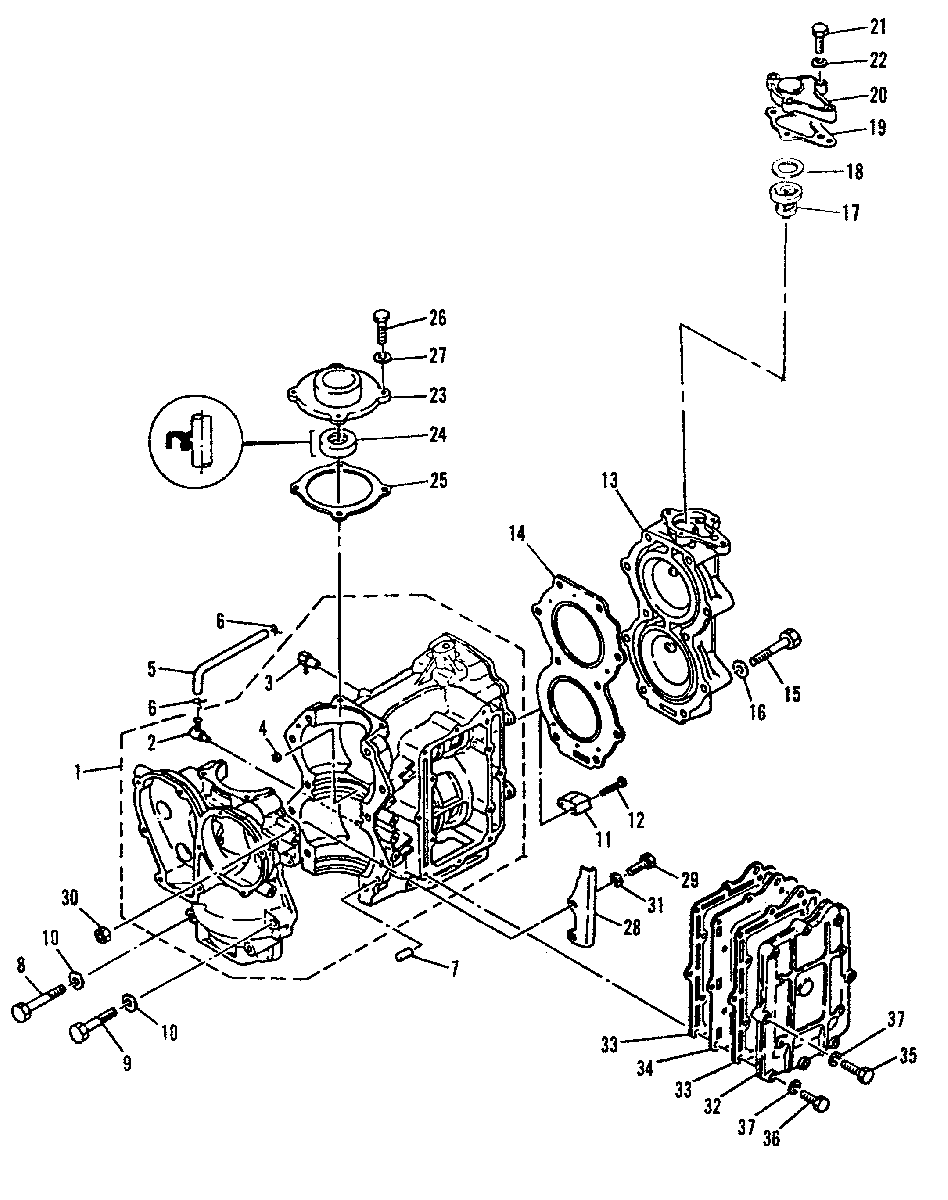

CRANKCASE AND CYLINDER HEAD для Mariner - W25 (M) 648-019426 AND UP
-
№АртикулНазвание
-
1870-8427M CRANKCASE ASS'YCRANKCASE ASS'Y
-
222-80743M FITTINGFITTING
-
321-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
421-80107M VALVE, CHECKVALVE, CHECK
-
532-811045M HOSEHOSE
-
654-82046M CLIPCLIP
-
717-82364M PIN, DOWELPIN, DOWEL
-
810-82408M BOLTBOLT
-
910-82406M BOLTBOLT
-
1012-80564M WASHERWASHER
-
1181094M ANODEANODE
-
1210-81757M SCREWSCREW
-
13968-9234M HEAD, CYLINDERHEAD, CYLINDER
-
1427-43074M GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
1510-82406M BOLTBOLT
-
1612-80564M WASHERWASHER
-
1799080M THERMOSTATTHERMOSTAT
-
1812-81835M WASHERWASHER
-
1927-80566M GASKETGASKET
-
20815006M COVERCOVER
-
2110-84058M BOLTBOLT
-
2213-82212M WASHERWASHER
-
2380596M HOUSINGHOUSING
-
2426-82245M OIL SEALOIL SEAL
-
2527-80597M GASKETGASKET
-
2610-84058M BOLTBOLT
-
2713-82212M WASHERWASHER
-
2881125M STOPPER MAGNETOSTOPPER MAGNETO
-
2910-82405M BOLTBOLT
-
3011-82389M NUTNUT
-
3112-82214M WASHERWASHER
-
3281116M OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
3327-81117M GASKET, EXHAUSTGASKET, EXHAUST
-
3481115M INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
3510-83285M BOLT (M-022741 ML-335096) AND ABOVEBOLT (M-022741 ML-335096) AND ABOVE
-
3510-83285M BOLT (M-022740 ML-335095) AND BELOWBOLT (M-022740 ML-335095) AND BELOW
-
3610-82405M BOLT (M-022740 ML-335096) AND ABOVEBOLT (M-022740 ML-335096) AND ABOVE
-
3610-82405M BOLT (M-022740 ML-335095) AND BELOWBOLT (M-022740 ML-335095) AND BELOW
-
3713-82212M WASHERWASHER
-
3797038M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
-
3727-97039M GASKET SET, POWERHEADGASKET SET, POWERHEAD
