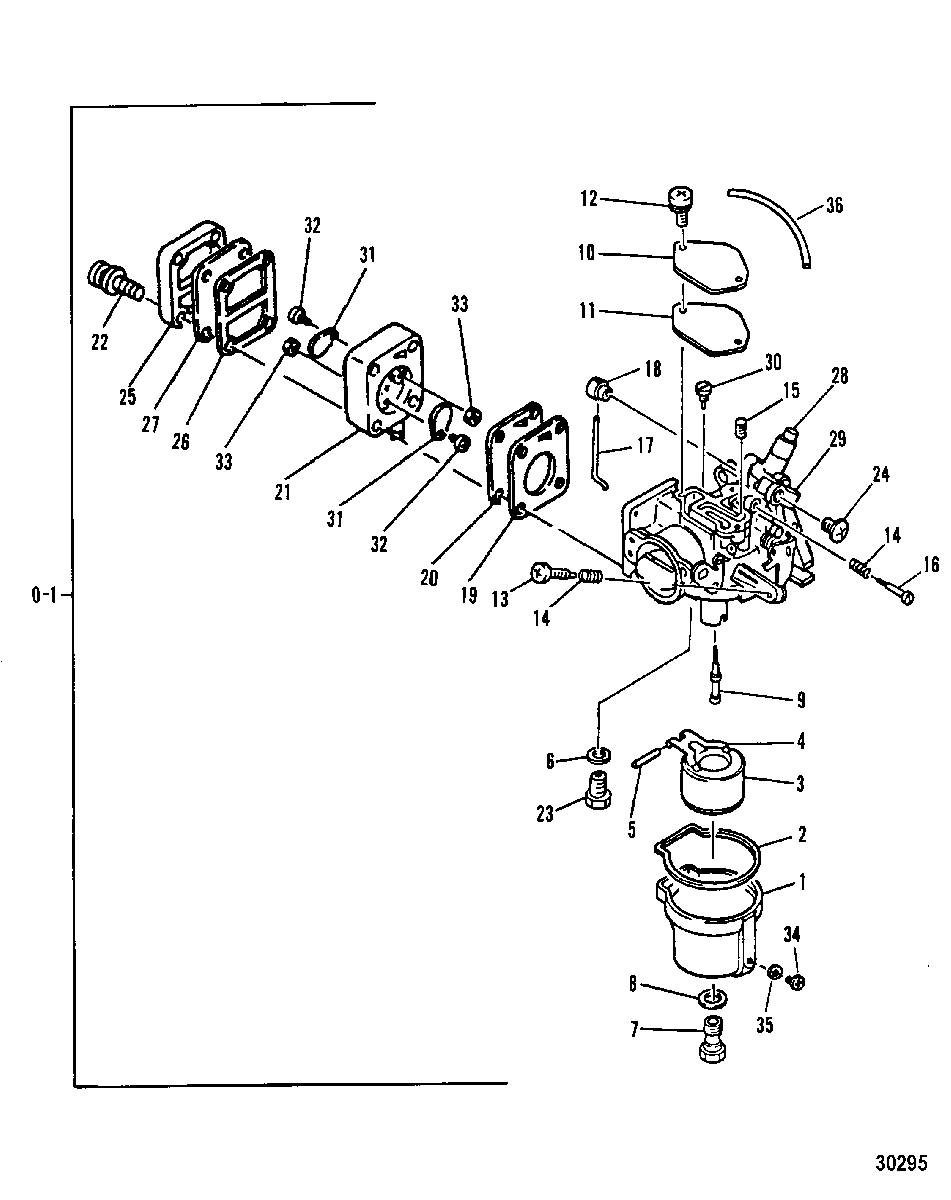

CARBURETOR для Mariner - W8 (ML)(W/Marathon) 677-383147 & Up
-
№АртикулНазвание
-
0-11383-9523M CARBURETOR ASSEMBLY
SN# M-059525/ML-387112/MUL-702821 & UpCARBURETOR ASSEMBLY
SN# M-059525/ML-387112/MUL-702821 & Up -
0-11383-9523M CARBURETOR ASSEMBLY
SN# M-059524/ML-387111/MUL-702820 & BelowCARBURETOR ASSEMBLY
SN# M-059524/ML-387111/MUL-702820 & Below -
114217M FLOAT BOWL
SN# M-059525/ML-387112/MUL-702821 & UpFLOAT BOWL
SN# M-059525/ML-387112/MUL-702821 & Up -
184252M FLOAT BOWL
SN# M-059524/ML-387111/MUL-702820 & BelowFLOAT BOWL
SN# M-059524/ML-387111/MUL-702820 & Below -
227-43115M GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
314180M FLAOT
SN# M-059525/ML-387112/MUL-702821 & UpFLAOT
SN# M-059525/ML-387112/MUL-702821 & Up -
380450M FLOAT
SN# M-059524/ML-387111/MUL-702820 & BelowFLOAT
SN# M-059524/ML-387111/MUL-702820 & Below -
480202M FLOAT ARM
SN# M-059524/ML-387111/MUL-702820 & BelowFLOAT ARM
SN# M-059524/ML-387111/MUL-702820 & Below -
517-80451M PIN, FLOAT
SN# M-059525/ML-387112/MUL-702821 & UpPIN, FLOAT
SN# M-059525/ML-387112/MUL-702821 & Up -
517-80451M PIN, FLOAT
SN# M-059524/ML-387111/MUL-702820 & BelowPIN, FLOAT
SN# M-059524/ML-387111/MUL-702820 & Below -
612-80261M WASHER, VALVE SEATWASHER, VALVE SEAT
-
710-83289M MAIN JET, (#80)
SN# M-059525/ML-387112/MUL-702821 & UpMAIN JET, (#80)
SN# M-059525/ML-387112/MUL-702821 & Up -
710-84670M JET, Main (#78)
SN# M-059524/ML-387111/MUL-702820 & BelowJET, Main (#78)
SN# M-059524/ML-387111/MUL-702820 & Below -
827-80267 GASKETGASKET
-
914272M NOZZLE, MAIN (#66)
SN# M-059525/ML-387112/MUL-702821 & UpNOZZLE, MAIN (#66)
SN# M-059525/ML-387112/MUL-702821 & Up -
994664M NOZZLE, MAIN (#66)
SN# M-059524/ML-387111/MUL-702820 & BelowNOZZLE, MAIN (#66)
SN# M-059524/ML-387111/MUL-702820 & Below -
1084258M PLATEPLATE
-
1127-84259M GASKETGASKET
-
1210-83509M SCREWSCREW
-
1310-83509M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1424-814460M SPRINGSPRING
-
1595404M JET, Pilot (#44)
SN# M-057971/ML-383909/MUL-702821 & UpJET, Pilot (#44)
SN# M-057971/ML-383909/MUL-702821 & Up -
1594665M JET, Pilot (#42)
SN# M-057970/ML-383908/MUL-702820 & BelowJET, Pilot (#42)
SN# M-057970/ML-383908/MUL-702820 & Below -
1610-80573M SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
1783299M RODROD
-
1883300M RETAINER, LEVER ENDRETAINER, LEVER END
-
1927-815009 GASKET, PUMPGASKET, PUMP
-
2084262M DIAPHRAGM, PUMPDIAPHRAGM, PUMP
-
2199966M COVER, PUMPCOVER, PUMP
-
2210-80954M SCREWSCREW
-
2314216M VALVE SEAT
SN# M-059525/ML-387112/MUL-702821 & UpVALVE SEAT
SN# M-059525/ML-387112/MUL-702821 & Up -
2311930M SEAT, Valve
SN# M-057971/ML-383909 THRU M-059524/ML-387111SEAT, Valve
SN# M-057971/ML-383909 THRU M-059524/ML-387111 -
2380447M VALVE SEAT ASSEMBLY
SN# M-057970/ML-383908/MUL-702820 & BelowVALVE SEAT ASSEMBLY
SN# M-057970/ML-383908/MUL-702820 & Below -
2410-80091M SCREWSCREW
-
2584266M COVER, PUMPCOVER, PUMP
-
2627-84264 GASKET, COVERGASKET, COVER
-
2784265M DIAPHRAGM, PUMPDIAPHRAGM, PUMP
-
2823-80227M BUSHING, GUIDE PINBUSHING, GUIDE PIN
-
2981148M ARM ASSEMBLY, ThrottleARM ASSEMBLY, Throttle
-
3010-80434M SCREWSCREW
-
3121-41888M CHECK VALVECHECK VALVE
-
3210-11837M SCREW
SN# M-057971/ML-383909/MUL-702821 & UpSCREW
SN# M-057971/ML-383909/MUL-702821 & Up -
3210-813484M SCREW
SN# M-057970/ML-383908/MUL-702820 & BelowSCREW
SN# M-057970/ML-383908/MUL-702820 & Below -
3311-82537M NUTNUT
-
3410-82512M SCREW
SN# M-059525/ML-387112/MUL-702821 & UpSCREW
SN# M-059525/ML-387112/MUL-702821 & Up -
3527-14218M GASKET
SN# M-059525/ML-387112/MUL-702821 & UpGASKET
SN# M-059525/ML-387112/MUL-702821 & Up -
3614281M TUBE
SN# M-059525/ML-387112/MUL-702821 & UpTUBE
SN# M-059525/ML-387112/MUL-702821 & Up -
-814480M REPAIR KIT
SN# M-059525/ML-387112/MUL-702821 & UpREPAIR KIT
SN# M-059525/ML-387112/MUL-702821 & Up -
-84473T REPAIR KIT
SN# M-059524/ML-387111/MUL-702820 & BelowREPAIR KIT
SN# M-059524/ML-387111/MUL-702820 & Below
