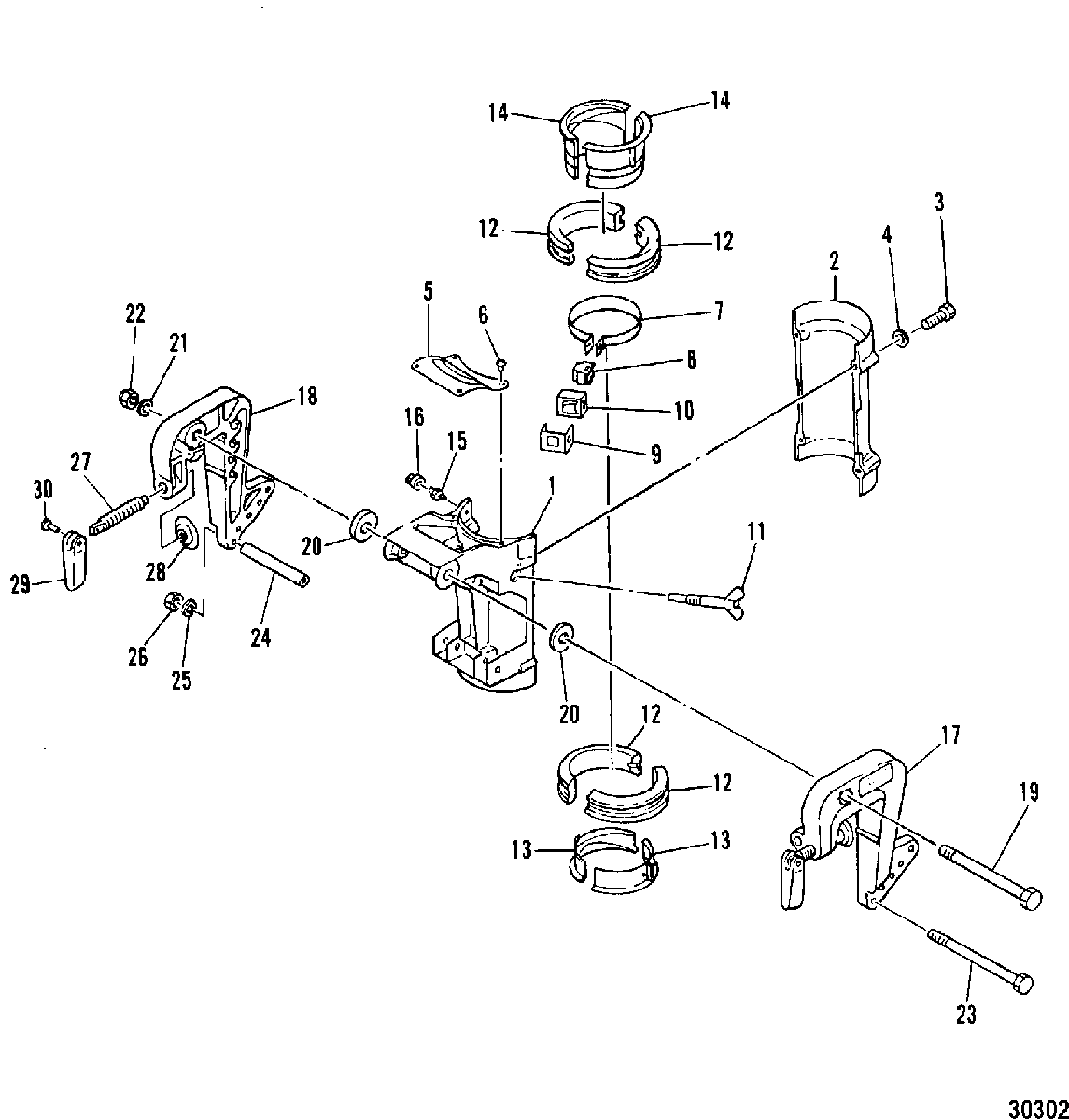

CLAMP AND SWIVEL BRACKET для Mariner - W8 (ML)(W/Marathon) 677-383147 & Up
-
№АртикулНазвание
-
11485-9256M SWIVEL BRACKET (FRONT)SWIVEL BRACKET (FRONT)
-
280520M SWIVEL BRACKET (REAR)SWIVEL BRACKET (REAR)
-
310-827043M BOLTBOLT
-
412-82214M WASHERWASHER
-
581065M COVERCOVER
-
610-14265M RIVET
SN# M-059525/ML-387112/MUL-702821 & UpRIVET
SN# M-059525/ML-387112/MUL-702821 & Up -
610-14265M RIVET
SN# M-059524/ML-387111/MUL-702820 & BelowRIVET
SN# M-059524/ML-387111/MUL-702820 & Below -
782889M BRACKET, FRICTIONBRACKET, FRICTION
-
882890M FRICTION PLATEFRICTION PLATE
-
982891M FRICTION PLATEFRICTION PLATE
-
1082892M COVERCOVER
-
1110-81055M SCREW, FRICTION PLATESCREW, FRICTION PLATE
-
1223-81056M BUSHING, PIVOT SHAFTBUSHING, PIVOT SHAFT
-
1395605M BUSHING, PIVOT SHAFTBUSHING, PIVOT SHAFT
-
1480513T COLLAR, PIVOT SHAFTCOLLAR, PIVOT SHAFT
-
1522-82369M FITTING, GREASEFITTING, GREASE
-
1681439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
171484-821596A1 CLAMP BRACKET, PortCLAMP BRACKET, Port
-
181484-6703M CLAMP BRACKET, (STARBOARD)CLAMP BRACKET, (STARBOARD)
-
1910-98969M BOLTBOLT
-
2012-98970M WASHERWASHER
-
2112-81806M WASHERWASHER
-
2211-81785M LOCKNUTLOCKNUT
-
2310-82921M BOLTBOLT
-
2423-82116M SPACERSPACER
-
2512-82214M WASHER, LOCKWASHER, LOCK
-
2611-82389M NUTNUT
-
2710-81755M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
2812-80638M PAD, TRANSOM CLAMPPAD, TRANSOM CLAMP
-
29809959M HANDLE, TRANSOM CLAMPHANDLE, TRANSOM CLAMP
-
3017-81888M PINPIN
