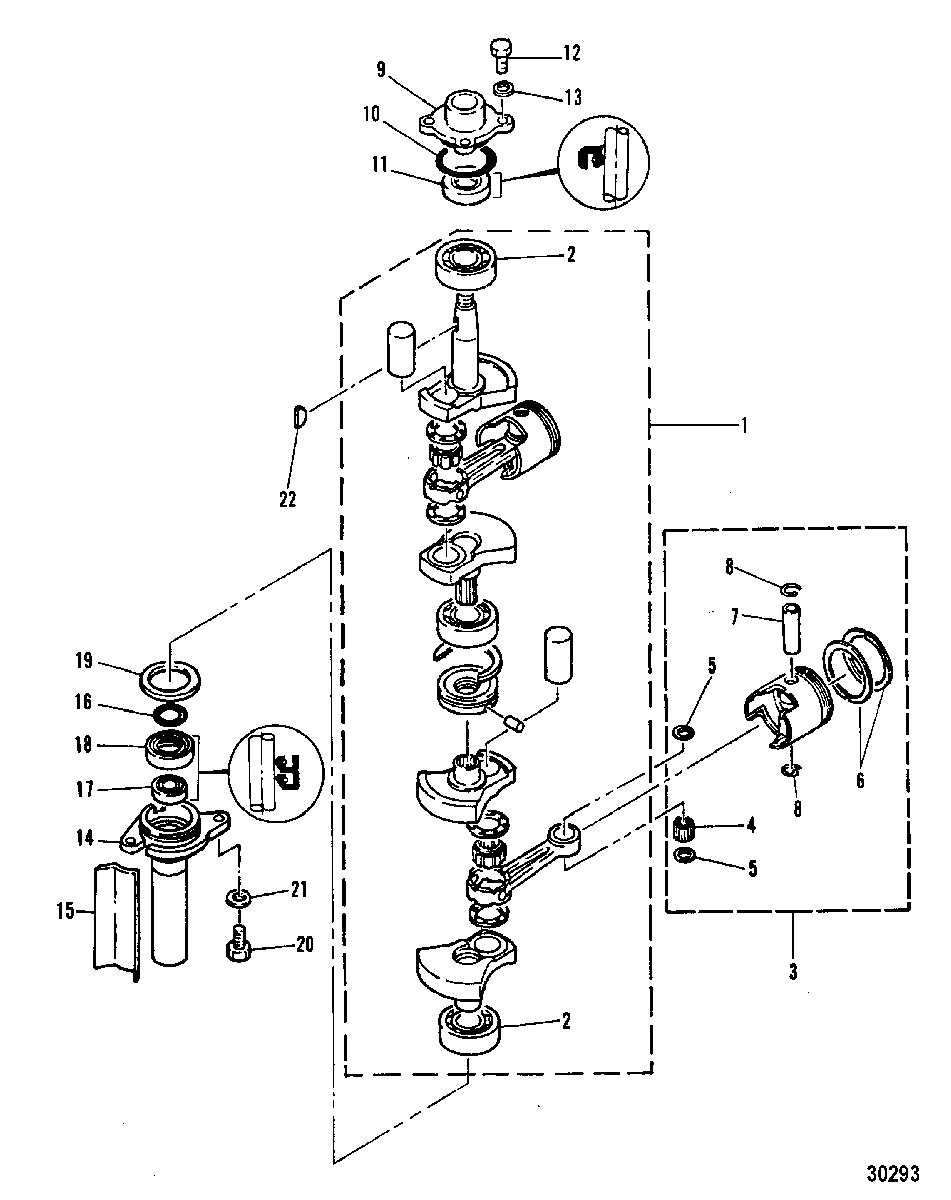

CRANKSHAFT AND PISTON для Mariner - W8 (ML)(W/Marathon) 677-383147 & Up
-
№АртикулНазвание
-
1463-9380M CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-18859T BEARINGBEARING
-
3761-8224M PISTON (STD)PISTON (STD)
-
3761-8225M PISTON (1ST O.S. 51.25MM)PISTON (1ST O.S. 51.25MM)
-
3761-8226M PISTON (2ND O.S. 51.50MM)PISTON (2ND O.S. 51.50MM)
-
429-82350M BEARING, NeedleBEARING, Needle
-
512-81816M WASHERWASHER
-
639-80422T RING SET, Piston (STD)RING SET, Piston (STD)
-
639-80423T RING SET, Piston (1ST O.S. 51.25MM)RING SET, Piston (1ST O.S. 51.25MM)
-
639-80424M RING SET, Piston (2ND O.S. 51.50MM)RING SET, Piston (2ND O.S. 51.50MM)
-
741-80005M PIN, PISTONPIN, PISTON
-
853-82342M CLIP, PISTON PINCLIP, PISTON PIN
-
983246M HOUSING, OIL SEAL UPPERHOUSING, OIL SEAL UPPER
-
1025-82276M O-RINGO-RING
-
1126-14195M SEAL, Oil, UPPER
SN# M-059525/ML-387112/MUL-702821 & UpSEAL, Oil, UPPER
SN# M-059525/ML-387112/MUL-702821 & Up -
1126-18843M SEAL, Oil, UPPER
SN# M-059524/ML-387111/MUL-702820 & BelowSEAL, Oil, UPPER
SN# M-059524/ML-387111/MUL-702820 & Below -
1210-82423M BOLTBOLT
-
1312-82214M WASHERWASHER
-
14814493M HOUSING, OIL SEAL LOWERHOUSING, OIL SEAL LOWER
-
1526-94662M SEALSEAL
-
1625-95602M O-RINGO-RING
-
1726-82165M SEAL, OilSEAL, Oil
-
1826-18843M SEAL, Oil, LOWERSEAL, Oil, LOWER
-
1923-81841M WASHERWASHER
-
2010-826957M BOLTBOLT
-
2112-82214M WASHERWASHER
-
2228-893761 KEY, FLYWHEELKEY, FLYWHEEL
