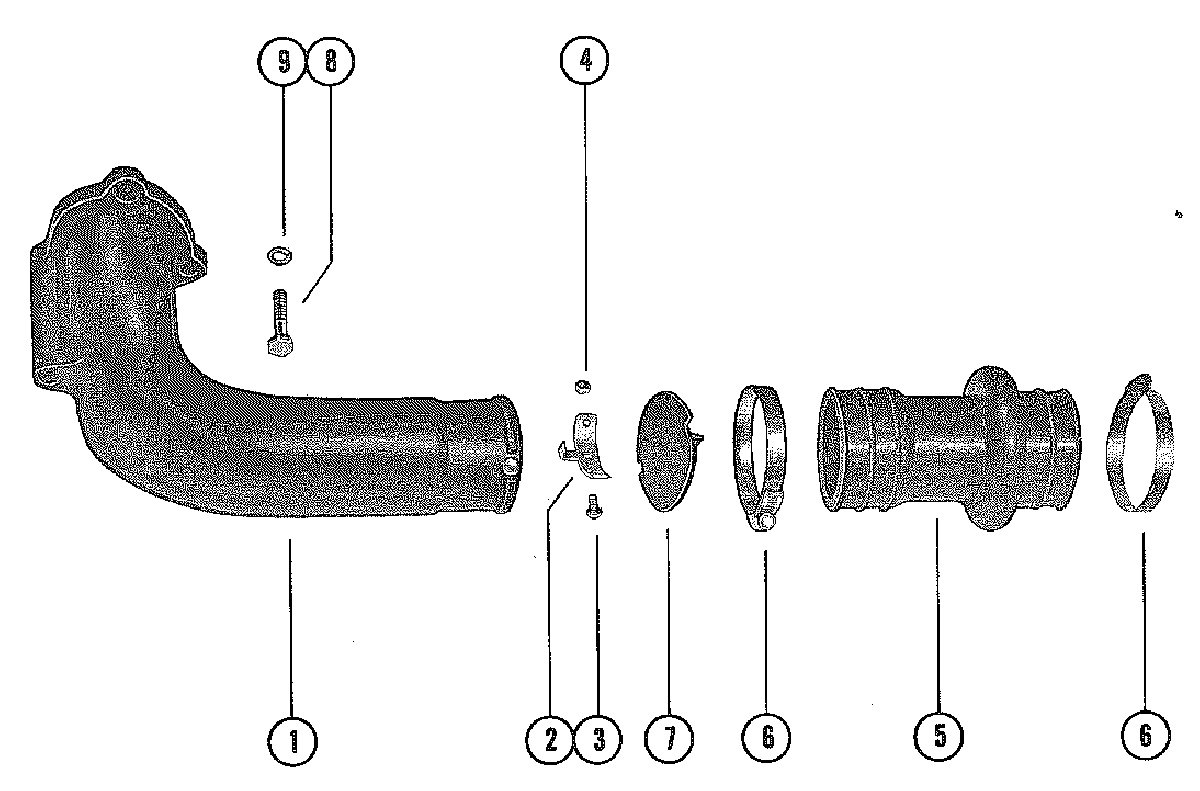

EXHAUST ELBOW ASSEMBLY для Mercruiser - 120 GM 153 I/L4 1972-1978 3377341 THRU 5192048
-
№АртикулНазвание
-
153272A5 EXHAUST ELBOW ASSEMBLYEXHAUST ELBOW ASSEMBLY
-
245798 BRACKET, SUPPORT - WATER SEALINGBRACKET, SUPPORT - WATER SEALING
-
310-37655 SCREW, SUPPORT BRACKET TO EXHAUST ELBOW (1/2")SCREW, SUPPORT BRACKET TO EXHAUST ELBOW (1/2")
-
411-859124 NUT, SUPPORT BRACKET SCREWNUT, SUPPORT BRACKET SCREW
-
545597A1 EXHAUST BELLOWS, UPPEREXHAUST BELLOWS, UPPER
-
654-815504352 CLAMP, BELLOWS ATTACHINGCLAMP, BELLOWS ATTACHING
-
654-815504456 CLAMP, BELLOWS ATTACHINGCLAMP, BELLOWS ATTACHING
-
745586 WATER SHUTTERWATER SHUTTER
-
810-85577 SCREW, EXHAUST ELBOW ATTACHING (2 1/4")SCREW, EXHAUST ELBOW ATTACHING (2 1/4")
-
913-35048 LOCKWASHER, EXHAUST ELBOW SCREWLOCKWASHER, EXHAUST ELBOW SCREW
Все узлы модели:
- CAMSHAFT, CRANKSHAFT AND WATER PUMP
- CARBURETOR ASSEMBLY
- CYLINDER BLOCK, PISTON AND BEARINGS
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR ASSEMBLY AND COIL
- • EXHAUST ELBOW ASSEMBLY
- EXHAUST MANIFOLD ASSEMBLY , END CAP AND ELBOW ASSEMBLY
- FLYWHEEL HOUSING AND ENGINE SUPPORT
- FUEL PUMP, FUEL FILTER AND CARBURETOR
- INTAKE MANIFOLD COVER AND THERMOSTAT COVER
- OIL PAN, OIL PUMP AND CRANKCASE COVER
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID
