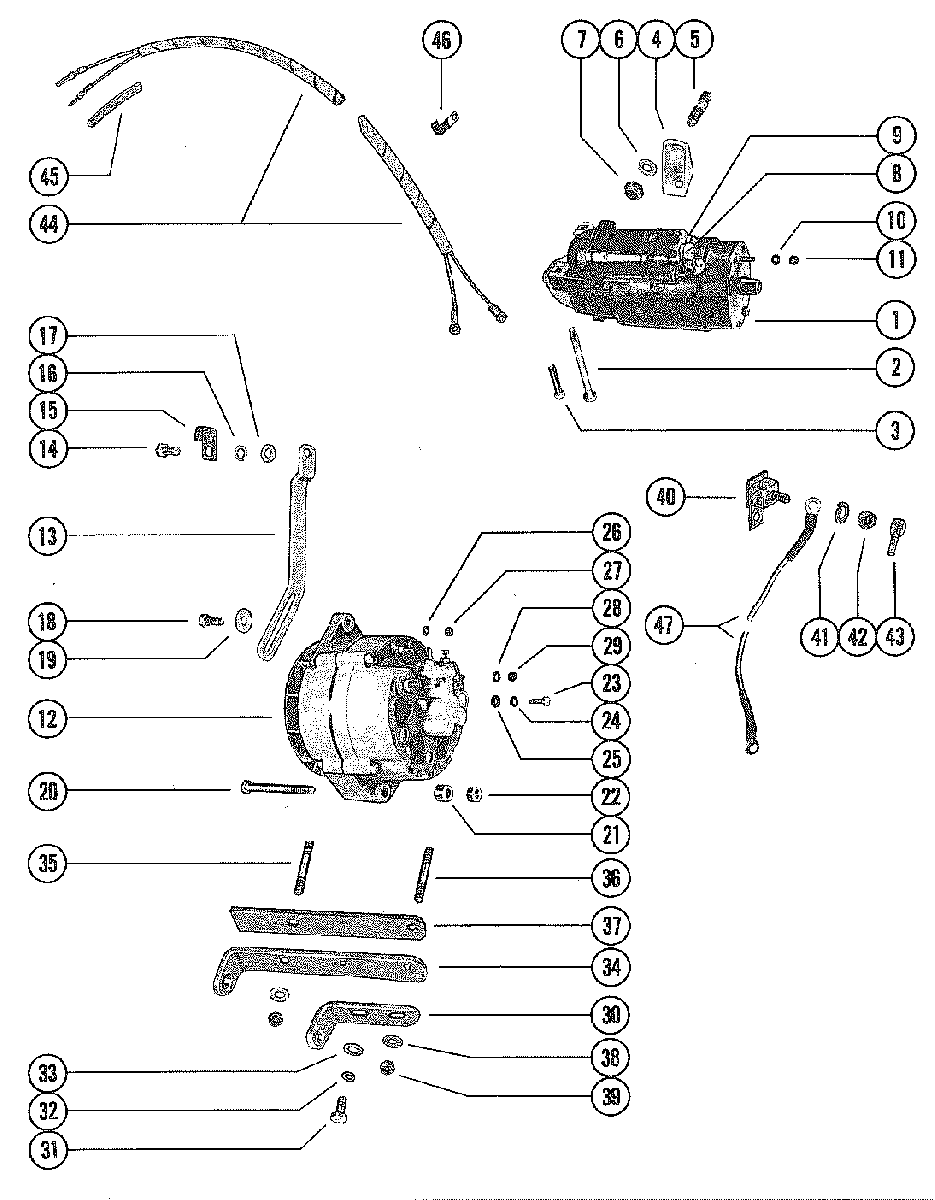

STARTER MOTOR AND ALTERNATOR для Mercruiser - 120 GM 153 I/L4 1972-1978 3377341 THRU 5192048
-
№АртикулНазвание
-
150-8M0090697 STARTER MOTOR ASSEMBLT (DELCO REMY #1108477)STARTER MOTOR ASSEMBLT (DELCO REMY #1108477)
-
150-8M0090697 STARTER MOTOR ASSEMBLT (DELCO REMY #1108756)STARTER MOTOR ASSEMBLT (DELCO REMY #1108756)
-
210-94435001 BOLT, STARTER MOTOR MOUNTING (4 21/32")BOLT, STARTER MOTOR MOUNTING (4 21/32")
-
310-8053433 BOLT, STARTER MOTOR MOUNTING (1 15/16")BOLT, STARTER MOTOR MOUNTING (1 15/16")
-
454671T BRACE, STARTER MOTORBRACE, STARTER MOTOR
-
516-52387 STUD, BRACE TO MOTOR AND CYLINDER BLOCKSTUD, BRACE TO MOTOR AND CYLINDER BLOCK
-
612-26168 WASHER, BRACE STUDWASHER, BRACE STUD
-
711-82670911 NUT, BRACE STUDNUT, BRACE STUD
-
811-32219 NUT, SOLENOID SWITCH TERMINAL (3/8-16)NUT, SOLENOID SWITCH TERMINAL (3/8-16)
-
911-26419 NUT, SOLENOID SWITCH TERMINAL (8-32)NUT, SOLENOID SWITCH TERMINAL (8-32)
-
1013-26996 LOCKWASHER, STARTER MOTOR TERMINAL (#10)LOCKWASHER, STARTER MOTOR TERMINAL (#10)
-
1111-68219 NUT, STARTER MOTOR TERMINAL (10-32)NUT, STARTER MOTOR TERMINAL (10-32)
-
1278403A2 ALTERNATOR ASSEMBLY (DELCO REMY #1100577)ALTERNATOR ASSEMBLY (DELCO REMY #1100577)
-
1278403A2 ALTERNATOR ASSEMBLY (DELCO REMY #1102496)ALTERNATOR ASSEMBLY (DELCO REMY #1102496)
-
1278403A2 ALTERNATOR ASSEMBLY (MOTOROLA #8MR2023F)ALTERNATOR ASSEMBLY (MOTOROLA #8MR2023F)
-
1332754T BRACE, ALTERNATOR TO CYLINDER BLOCK (FRONT)BRACE, ALTERNATOR TO CYLINDER BLOCK (FRONT)
-
1410-98261 SCREWM ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")SCREWM ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")
-
1554-54178 "J" CLIP, WATER TEMPERATURE SENDER LEAD
SERIAL 03377341-03461707"J" CLIP, WATER TEMPERATURE SENDER LEAD
SERIAL 03377341-03461707 -
1613-35048 LOCKWASHER, ALTERNATOR BRACE SCREWLOCKWASHER, ALTERNATOR BRACE SCREW
-
1712-20553 WASHER, ALTERNATOR BRACE SCREWWASHER, ALTERNATOR BRACE SCREW
-
1810-29198 SCREW , ALTERNATOR BRACE TO ALTERNATOR ( 7/8")SCREW , ALTERNATOR BRACE TO ALTERNATOR ( 7/8")
-
1912-26168 WASHER, ALTERNATOR BRACE SCREWWASHER, ALTERNATOR BRACE SCREW
-
2010-48308 SCREW, ALTERNATOR TO BRACKET (3 3/4")SCREW, ALTERNATOR TO BRACKET (3 3/4")
-
2123-32727 SPACER, ALTERNATOR SCREW
SERIAL 03377341-03461707SPACER, ALTERNATOR SCREW
SERIAL 03377341-03461707 -
2123-45353 SPACER, ALTERNATOR SCREW
SERIAL 03461708-09999999SPACER, ALTERNATOR SCREW
SERIAL 03461708-09999999 -
2211-23161 NUT, ALTERNATOR SCREWNUT, ALTERNATOR SCREW
-
2310-20055 SCREW, LEAD TO ALTERNATOR TERMINALSCREW, LEAD TO ALTERNATOR TERMINAL
-
2413-26996 LOCKWASHER, ALTERNATOR TERMINALLOCKWASHER, ALTERNATOR TERMINAL
-
2512-30164 WASHER, ALTERNATOR TERMINALWASHER, ALTERNATOR TERMINAL
-
2612-20553 WASHER, ALTERNATOR GROUND TERMINALWASHER, ALTERNATOR GROUND TERMINAL
-
2711-32219 NUT, ALTERNATOR GROUND TERMINAL (3/8-16)NUT, ALTERNATOR GROUND TERMINAL (3/8-16)
-
2813-26991 LOCKWASHER, ALTERNATOR STUDLOCKWASHER, ALTERNATOR STUD
-
2911-68531 NUT, HARNESS TO ALTERNATOR STUDNUT, HARNESS TO ALTERNATOR STUD
-
3052817 BRACKET, ALTERNATOR MOUNTINGBRACKET, ALTERNATOR MOUNTING
-
3110-33524 SCREW. ALTERNATOR MOUNTING BRACKET TO CYLINDER BLOCK (5/8")SCREW. ALTERNATOR MOUNTING BRACKET TO CYLINDER BLOCK (5/8")
-
3213-26993 LOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREWLOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREW
-
3312-26825 WASHER, ALTERNATOR MOUNTING BRACKET SCREWWASHER, ALTERNATOR MOUNTING BRACKET SCREW
-
3452818 BRACKET, ALTERNATOR MOUNTINGBRACKET, ALTERNATOR MOUNTING
-
3516-54177 STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 3/8")STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 3/8")
-
3616-54176 STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")
-
3727-53502 GASKET, ALTERNATOR MOUNTING BRACKETGASKET, ALTERNATOR MOUNTING BRACKET
-
3812-20553 WASHER, MOUNTING BRACKET STUDWASHER, MOUNTING BRACKET STUD
-
3911-23161 NUT, MOUNTING BRACKET STUDNUT, MOUNTING BRACKET STUD
-
4088-79023T56 FUSE ASSEMBLY, 55 AMP
SERIAL 00000000-05080588FUSE ASSEMBLY, 55 AMP
SERIAL 00000000-05080588 -
4088-79023T90 FUSE ASSEMBLY, 90 AMP
SERIAL 05080589-09999999FUSE ASSEMBLY, 90 AMP
SERIAL 05080589-09999999 -
4113-26992 LOCKWASHER, FUSE STUDLOCKWASHER, FUSE STUD
-
4211-21825 NUT, FUSE STUDNUT, FUSE STUD
-
4385-79695T BOOT, INSULATOR - FUSE STUDBOOT, INSULATOR - FUSE STUD
-
4484-78581A1 WIRING HARNESS ASSEMBLY, ALTERNATORWIRING HARNESS ASSEMBLY, ALTERNATOR
-
455790811 SLEEVE, WIRING HARNESSSLEEVE, WIRING HARNESS
-
4654-73668 "J" CLIP, WIRING HARNESS"J" CLIP, WIRING HARNESS
-
4784-79139A5 JUMPER WIRE, 90 AMP FUSE TO CIRCUIT BREAKER
SERIAL 05080589-09999999JUMPER WIRE, 90 AMP FUSE TO CIRCUIT BREAKER
SERIAL 05080589-09999999
