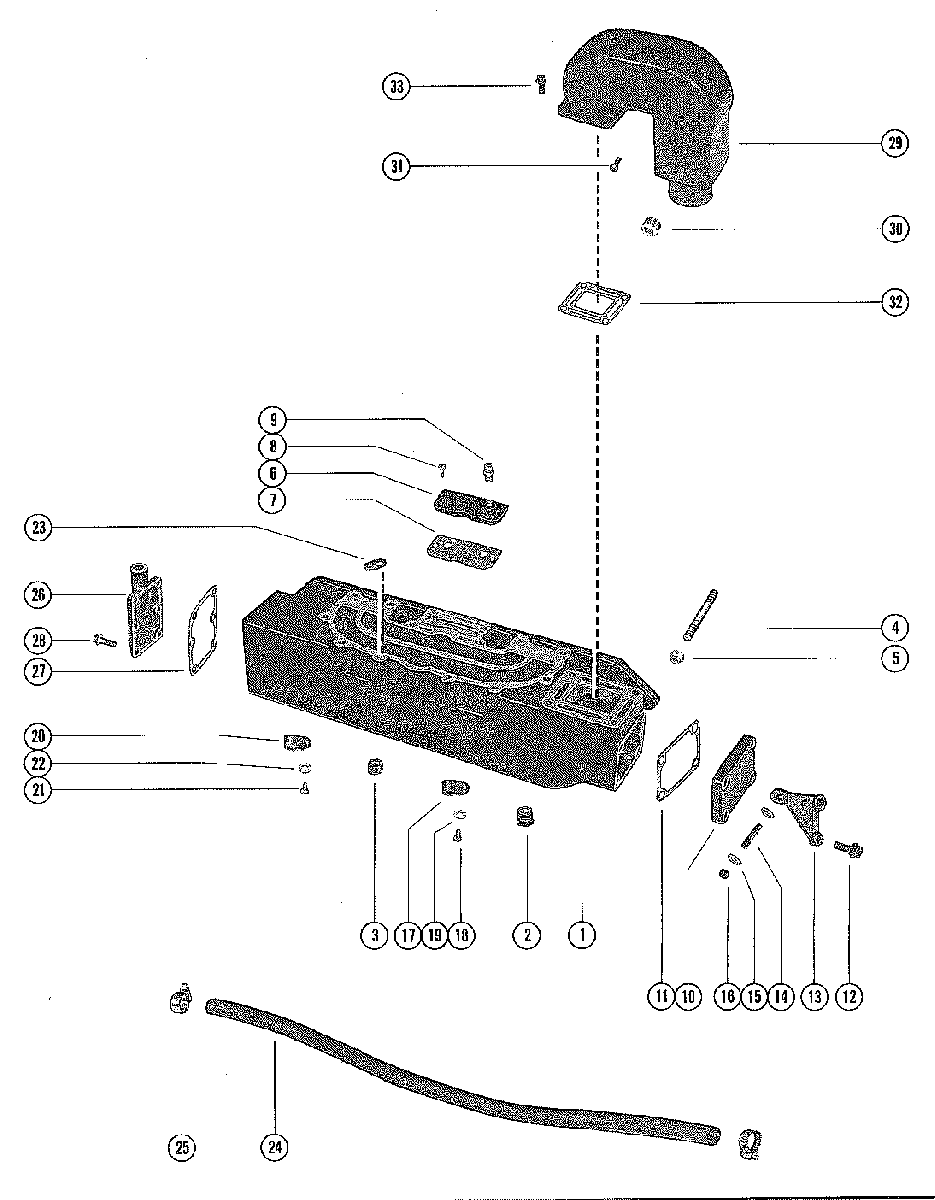

EXHAUST MANIFOLD ASSEMBLY , END CAP AND ELBOW ASSEMBLY для Mercruiser - 120 GM 153 I/L4 1972-1978 3377341 THRU 5192048
-
№АртикулНазвание
-
163122A14 EXHAUST MANIFOLD ASSEMBLYEXHAUST MANIFOLD ASSEMBLY
-
222-328022 PLUG, PIPE - EXAUST MANIFOLD (1/8-27)PLUG, PIPE - EXAUST MANIFOLD (1/8-27)
-
322-416223 PLUG, EXHAUST MANIFOLD (3/4-14)PLUG, EXHAUST MANIFOLD (3/4-14)
-
416-49915 STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/2")STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/2")
-
416-60799 STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/2")STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/2")
-
511-49910 NUT, EXHAUST MANIFOLD STUDNUT, EXHAUST MANIFOLD STUD
-
639949T COVER, CHOKE OVEN - EXHAUST MANIFOLDCOVER, CHOKE OVEN - EXHAUST MANIFOLD
-
727-39947 GASKET, CHOKE OVER COVERGASKET, CHOKE OVER COVER
-
810-22028 SCREW, CHOKE OVEN COVER TO EXHAUST MANIFOLD (1/2")SCREW, CHOKE OVEN COVER TO EXHAUST MANIFOLD (1/2")
-
922-21373 CONNECTOR, CHOKE OVEN COVER TO CHOKE PIPECONNECTOR, CHOKE OVEN COVER TO CHOKE PIPE
-
1073811A1 END CAP, EXHAUST MANIFOLD
SERIAL 00000000-04478881END CAP, EXHAUST MANIFOLD
SERIAL 00000000-04478881 -
1127-39923 GASKET, END CAP
SERIAL 00000000-04478881GASKET, END CAP
SERIAL 00000000-04478881 -
1210-39970 SCREW, END CAP TO EXHAUST MANIFOLD (1")
SERIAL 00000000-04478881SCREW, END CAP TO EXHAUST MANIFOLD (1")
SERIAL 00000000-04478881 -
1210-319484 SCREW, END CAP TO EXHAUST MANIFOLD (1 3/8")
SERIAL 00000000-04478881SCREW, END CAP TO EXHAUST MANIFOLD (1 3/8")
SERIAL 00000000-04478881 -
1073811A1 END CAP, EXHAUST MANIFOLD
SERIAL 04478882-09999999END CAP, EXHAUST MANIFOLD
SERIAL 04478882-09999999 -
1127-73812 GASKET, END CAP
SERIAL 04478882-09999999GASKET, END CAP
SERIAL 04478882-09999999 -
1210-25299 SCREW, END CAP TO EXHAUST MANIFOLD (3/4")
SERIAL 04478882-09999999SCREW, END CAP TO EXHAUST MANIFOLD (3/4")
SERIAL 04478882-09999999 -
1210-53576 SCREW, END CAP TO EXHAUST MANIFOLD (1 1/8")
SERIAL 04478882-09999999SCREW, END CAP TO EXHAUST MANIFOLD (1 1/8")
SERIAL 04478882-09999999 -
1378891A1 BRACKET, MOUNTING - REMOTE CONTROL CABLE STUD (EXHAUST ELBOW)BRACKET, MOUNTING - REMOTE CONTROL CABLE STUD (EXHAUST ELBOW)
-
1416-38525 STUD, REMOTE CONTROL CABLE TO MOUNTING BRACKETSTUD, REMOTE CONTROL CABLE TO MOUNTING BRACKET
-
1512-24664 WASHER, REMOTE CONTROL CABLE STUDWASHER, REMOTE CONTROL CABLE STUD
-
1611-826709109 NUT, REMOTE CONTROL CABLE STUDNUT, REMOTE CONTROL CABLE STUD
-
1754-28938 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD
SERIAL 03377341-03461707CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD
SERIAL 03377341-03461707 -
1810-98253 SCREW, WIRING HARNESS CLAMP FASTENING (1/2')
SERIAL 03377341-03461707SCREW, WIRING HARNESS CLAMP FASTENING (1/2')
SERIAL 03377341-03461707 -
1913-26992 LOCKWASHER,M WIRING HARNESS CLAMP SCREW
SERIAL 03377341-03461707LOCKWASHER,M WIRING HARNESS CLAMP SCREW
SERIAL 03377341-03461707 -
2054-60517 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (3/8")
SERIAL 03377341-03461707CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (3/8")
SERIAL 03377341-03461707 -
2110-22028 SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
SERIAL 03377341-03461707SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
SERIAL 03377341-03461707 -
2213-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
SERIAL 03377341-03461707LOCKWASHER, WIRING HARNESS CLAMP SCREW
SERIAL 03377341-03461707 -
2353-78201 RETAINER, THROTTLE SPRING RETURNRETAINER, THROTTLE SPRING RETURN
-
2432-47642 HOSE ASSEMBLY, INLET- WATER DISTRIBUTION BLOCK TO DRIVE UNIT
(33 1/2")HOSE ASSEMBLY, INLET- WATER DISTRIBUTION BLOCK TO DRIVE UNIT
(33 1/2") -
2554-815504310 CLAMP, INLET HOSE TO WATER DISTRIBUTION BLOCK AND DRIVE UNITCLAMP, INLET HOSE TO WATER DISTRIBUTION BLOCK AND DRIVE UNIT
-
2647638A1 END CAP/CONNECTOR, EXHAUST MANIFOLDEND CAP/CONNECTOR, EXHAUST MANIFOLD
-
2727-39917 GASKET, END CAP/CONNECTORGASKET, END CAP/CONNECTOR
-
2810-39970 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (7/8")SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (7/8")
-
2810-39970 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
-
2955538A2 ELBOW ASSEMBLY, EXHAUSTELBOW ASSEMBLY, EXHAUST
-
3022-416223 PLUG, EXHAUST ELBOW (3/4-14)PLUG, EXHAUST ELBOW (3/4-14)
-
3110-98256 SCREW, PLUD - EXHAUST ELBOWSCREW, PLUD - EXHAUST ELBOW
-
3227-39915 GASKET, EXHAUST ELBOWGASKET, EXHAUST ELBOW
-
3310-39970 SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD (1")SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD (1")
