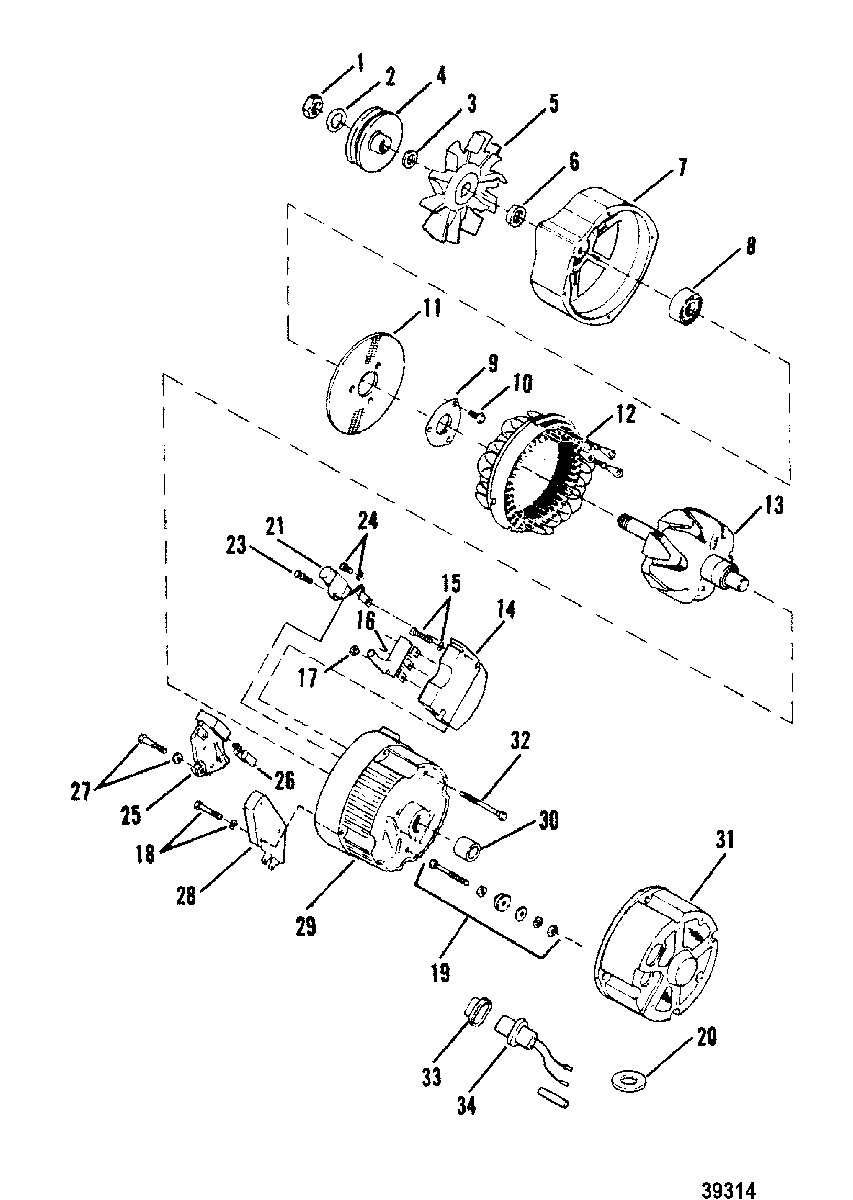

ALTERNATOR(DELCO-REMY #1105064) для Mercruiser - 3.0L GM 181 I/L4 1987-1989 0B450801 THRU 0C856558
-
№АртикулНазвание
-
-N.S.S. Not Sold Separate, ALTERNATOR (DELCO-REMY #1105064)(42 AMP)Not Sold Separate, ALTERNATOR (DELCO-REMY #1105064)(42 AMP)
-
1N.S.S. Not Sold Separate, NUT, FAN AND PULLEY TO ROTOR (DELCO-REMY #1915172)Not Sold Separate, NUT, FAN AND PULLEY TO ROTOR (DELCO-REMY #1915172)
-
2N.S.S. Not Sold Separate, LOCKWASHER, FAN/PULLEY NUT (DELCO-REMY #1941978)Not Sold Separate, LOCKWASHER, FAN/PULLEY NUT (DELCO-REMY #1941978)
-
390667 COLLAR, SHAFT - BETWEEN FAN AND PULLEYCOLLAR, SHAFT - BETWEEN FAN AND PULLEY
-
490669 PULLEY, DRIVE END FRAMEPULLEY, DRIVE END FRAME
-
5N.S.S. Not Sold Separate, FAN, DRIVE END FRAME (DELCO-REMY #800594)Not Sold Separate, FAN, DRIVE END FRAME (DELCO-REMY #800594)
-
6N.S.S. Not Sold Separate, COLLAR, DRIVE END FRAME (DELCO-REMY #1978250)Not Sold Separate, COLLAR, DRIVE END FRAME (DELCO-REMY #1978250)
-
742792 FRAME, DRIVE ENDFRAME, DRIVE END
-
830-90665 BEARING, Ball, DRIVE END FRAMEBEARING, Ball, DRIVE END FRAME
-
990666 PLATE, BALL BEARING RETAINERPLATE, BALL BEARING RETAINER
-
10N.S.S. Not Sold Separate, SCREW, RETAINER PLATE (DELCO-REMY #1965104)Not Sold Separate, SCREW, RETAINER PLATE (DELCO-REMY #1965104)
-
1190668 SCREEN, Drive End FrameSCREEN, Drive End Frame
-
1242787 STATOR ASSEMBLYSTATOR ASSEMBLY
-
1342786 ROTORROTOR
-
1442789 FITTINGFITTING
-
1510-42790 SCREW, RECTIFIER BRIDGESCREW, RECTIFIER BRIDGE
-
1642788 DIODE TRIODIODE TRIO
-
1711-21923T NUT, ( 8-32), DIODE TRIO TO RECTIFIER BRIDGE TERMINALNUT, ( 8-32), DIODE TRIO TO RECTIFIER BRIDGE TERMINAL
-
18N.S.S. Not Sold Separate, SCREW, BRUSH HOLDER - GROUND (DELCO-REMY #1975737)Not Sold Separate, SCREW, BRUSH HOLDER - GROUND (DELCO-REMY #1975737)
-
1960692 TERMINAL PACKAGE, BATTERYTERMINAL PACKAGE, BATTERY
-
2012-56947 WASHER, SPONGE NEOPRENE (1-1/4" O.D.)WASHER, SPONGE NEOPRENE (1-1/4" O.D.)
-
2158296 CONDENSERCONDENSER
-
2310-60693 SCREW, CONDENSERSCREW, CONDENSER
-
2410-60693 SCREW, CONDENSER LEAD TERMINALSCREW, CONDENSER LEAD TERMINAL
-
2542791 HOLDER AND BRUSH ASSEMBLYHOLDER AND BRUSH ASSEMBLY
-
2624-56943 SPRING, TENSION - BRUSHESSPRING, TENSION - BRUSHES
-
2710-60691 SCREW, BRUSH HOLDER - INSULATEDSCREW, BRUSH HOLDER - INSULATED
-
2878385 REGULATOR, Voltage, TRANSISTORREGULATOR, Voltage, TRANSISTOR
-
29N.S.S. Not Sold Separate, FRAME ASSEMBLY, SLIP RING END (DELCO-REMY #1984460)Not Sold Separate, FRAME ASSEMBLY, SLIP RING END (DELCO-REMY #1984460)
-
3031-60690 BEARING, Roller, SLIP RING END FRAMEBEARING, Roller, SLIP RING END FRAME
-
3190670 COVER ASSEMBLY, SLIP RING ENDCOVER ASSEMBLY, SLIP RING END
-
3210-33322 BOLT, THRUBOLT, THRU
-
3378386 BOOT, VOLTAGE REGULATOR TERMINALSBOOT, VOLTAGE REGULATOR TERMINALS
-
3490671 CONNECTORCONNECTOR
