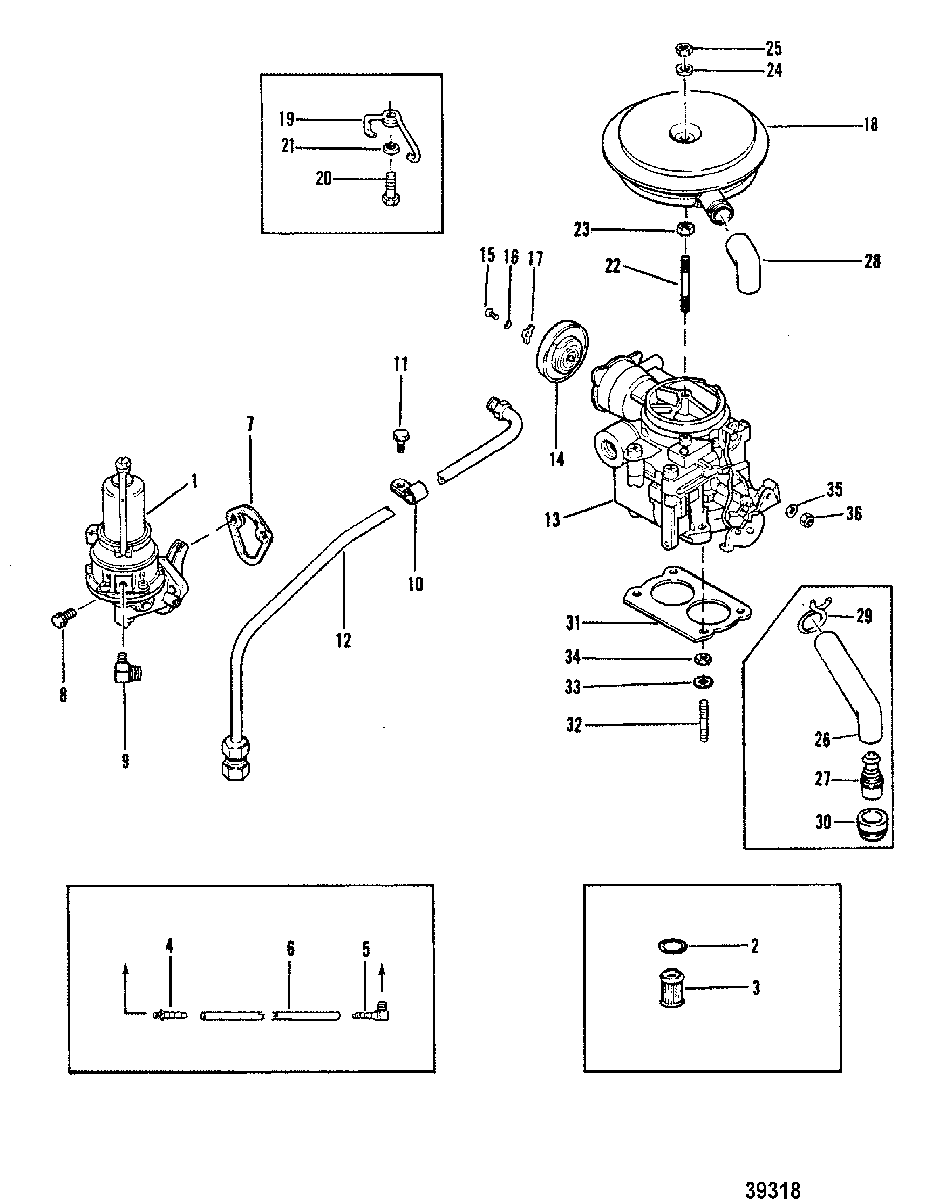

FUEL PUMP AND CARBURETOR(OLD DESIGN) для Mercruiser - 3.0L GM 181 I/L4 1987-1989 0B450801 THRU 0C856558
-
№АртикулНазвание
-
186234A05 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
249089A1 DIAPHRAGM KIT, FUEL PUMPDIAPHRAGM KIT, FUEL PUMP
-
335-49088Q2 FILTER, FUEL - FUEL PUMPFILTER, FUEL - FUEL PUMP
-
422-73816 CONNECTOR, VENT TUBE TO CARBURETOR
(ROCHESTER CARB.)CONNECTOR, VENT TUBE TO CARBURETOR
(ROCHESTER CARB.) -
422-54090 ELBOW, VENT TUBE TO CARBURETOR
(MERCARB)ELBOW, VENT TUBE TO CARBURETOR
(MERCARB) -
522-73817 CONNECTOR, (90 Degree), VENT TUBE TO FUEL PUMPCONNECTOR, (90 Degree), VENT TUBE TO FUEL PUMP
-
632-7381567 HOSE, (34.00 Inches Bulk), VENTHOSE, (34.00 Inches Bulk), VENT
-
727-34213 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
810-45488 BOLT, (7/8 In.), FUEL PUMP TO CYLINDER BLOCK (3/4")BOLT, (7/8 In.), FUEL PUMP TO CYLINDER BLOCK (3/4")
-
922-98646 FITTING, FUEL LINEFITTING, FUEL LINE
-
1054-65653 CLIP, FUEL LINE TO ROCKER COVERCLIP, FUEL LINE TO ROCKER COVER
-
1110-32079 SCREW, (.250-20 x .560), CLIP TO ROCKER COVERSCREW, (.250-20 x .560), CLIP TO ROCKER COVER
-
1232-41102A1 LINE ASSEMBLY, Fuel, FUEL PUMP TO CARBURETORLINE ASSEMBLY, Fuel, FUEL PUMP TO CARBURETOR
-
131347-818621R02 CARBURETOR ASSEMBLY
(ROCHESTER)CARBURETOR ASSEMBLY
(ROCHESTER) -
133310-860070A2 CARBURETOR ASSEMBLY
(MERCARB)CARBURETOR ASSEMBLY
(MERCARB) -
1470125A02 COVER, CHOKECOVER, CHOKE
-
1510-33047 SCREW, CHOKE COVER OT CHOKE HOUSINGSCREW, CHOKE COVER OT CHOKE HOUSING
-
1613-26995 LOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREWLOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREW
-
1754-33036 RETAINER, CHOKE COVER SCREWRETAINER, CHOKE COVER SCREW
-
1886270 FLAME ARRESTOR
ROCHESTER CARBFLAME ARRESTOR
ROCHESTER CARB -
18805016A1 FLAME ARRESTOR
MERCARBFLAME ARRESTOR
MERCARB -
1952734 BAIL, FLAME ARRESTOR TO CARBURETOR
ROCHESTER CARBBAIL, FLAME ARRESTOR TO CARBURETOR
ROCHESTER CARB -
2010-65027 SCREW, (.250-28 x 1.00), FLAME ARRESTOR TO CARB. BAIL (1")
ROCHESTER CARBSCREW, (.250-28 x 1.00), FLAME ARRESTOR TO CARB. BAIL (1")
ROCHESTER CARB -
2112-29245 WASHER, (.281 x .500 x .060) Stainless Steel, FLAME ARRESTOR SCREW
ROCHESTER CARBWASHER, (.281 x .500 x .060) Stainless Steel, FLAME ARRESTOR SCREW
ROCHESTER CARB -
2216-70878 STUD, (1/4 x 2.125), FLAME ARRESTOR
MERCARBSTUD, (1/4 x 2.125), FLAME ARRESTOR
MERCARB -
2311-8267139 NUT, FLAME ARRESTOR SCREWNUT, FLAME ARRESTOR SCREW
-
2412-86400 WASHER, FLAME ARRESTOR STUDWASHER, FLAME ARRESTOR STUD
-
2511-826709109 NUT, (.250-28), FLAME ARRESTOR STUD (TOP)NUT, (.250-28), FLAME ARRESTOR STUD (TOP)
-
2632-62060 HOSE, VENT
USE WITH STRAIGHT CONNECTORHOSE, VENT
USE WITH STRAIGHT CONNECTOR -
2632-8M0062669 HOSE, VENT
USE WITH 90 CONNECTORHOSE, VENT
USE WITH 90 CONNECTOR -
2747957 CONNECTOR, VENT HOSE
USE WITH STRAIGHT CONNECTORCONNECTOR, VENT HOSE
USE WITH STRAIGHT CONNECTOR -
2797850T ELBOW, 90 Degree, VENT HOSE
USE WITH 90 CONNECTORELBOW, 90 Degree, VENT HOSE
USE WITH 90 CONNECTOR -
2832-807202 HOSE, VENT
(NEW DESIGN)HOSE, VENT
(NEW DESIGN) -
2954-64648 CLAMP, HOSE ATTACHING
OLD DESIGNCLAMP, HOSE ATTACHING
OLD DESIGN -
3023-8M0071559 GROMMET, ROCKER COVER
OLD DESIGNGROMMET, ROCKER COVER
OLD DESIGN -
3127-64692 GASKET, CARBURETOR
ROCHESTER CARBGASKET, CARBURETOR
ROCHESTER CARB -
3127-8079821 GASKET, CARBURETOR
MERCARBGASKET, CARBURETOR
MERCARB -
3216-8M0113177 STUD, (.312 x 1.500), CARBURETORSTUD, (.312 x 1.500), CARBURETOR
-
3312-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUDWASHER, (.328 x .562 x .062), CARBURETOR STUD
-
3411-862902 NUT, (.9375-24), CARBURETOR STUDNUT, (.9375-24), CARBURETOR STUD
-
3512-56681 WASHER, (.203 x .500 x .032), THROTTLE CABLEWASHER, (.203 x .500 x .032), THROTTLE CABLE
-
3611-8267086 NUT, (#10-32), THROTTLE CABLE TO CARBURETORNUT, (#10-32), THROTTLE CABLE TO CARBURETOR
