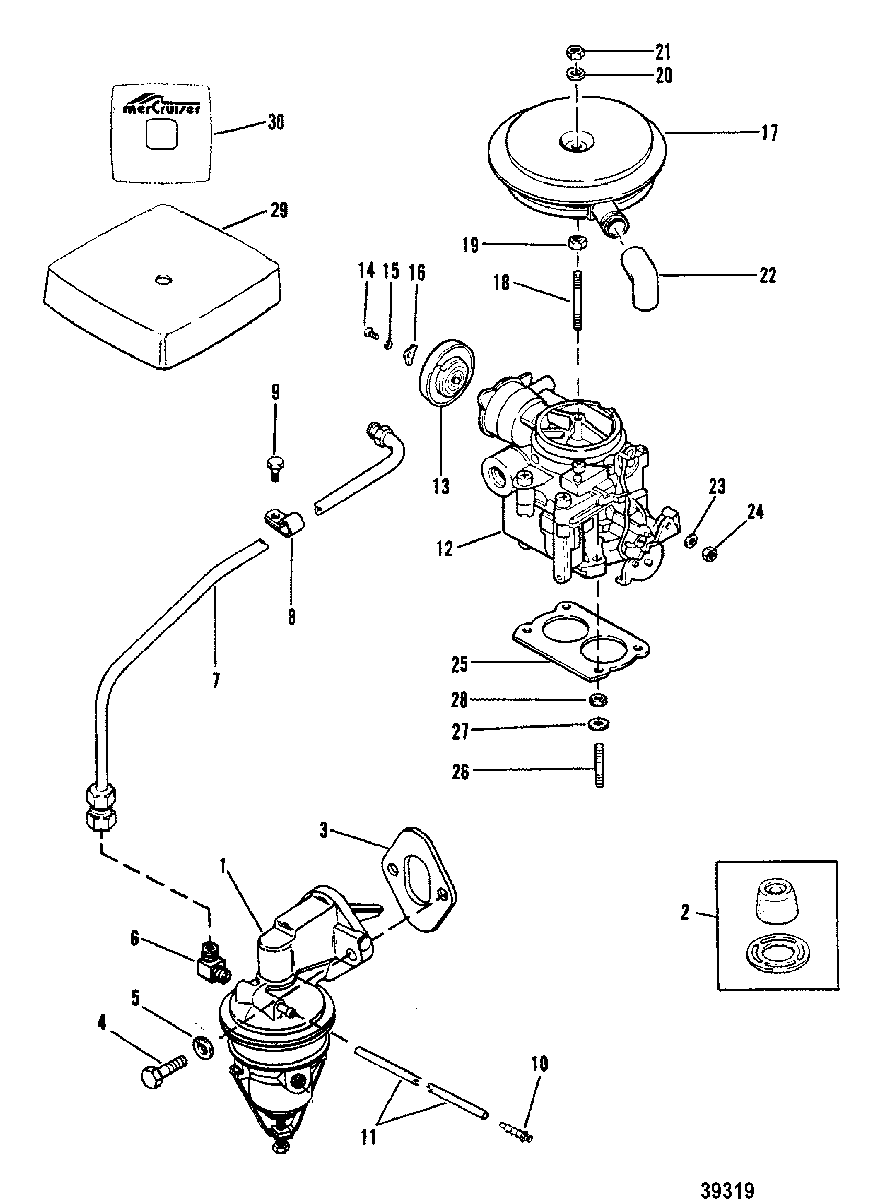

FUEL PUMP AND CARBURETOR(NEW DESIGN) для Mercruiser - 3.0L GM 181 I/L4 1987-1989 0B450801 THRU 0C856558
-
№АртикулНазвание
-
18M0073435 PUMP ASSEMBLY, Fuel, FuelPUMP ASSEMBLY, Fuel, Fuel
-
235-8M0046752 FILTERFILTER
-
327-8M0108647 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
410-31984 SCREW, (.312-18 x 1.375), FUEL PUMP TO BLOCKSCREW, (.312-18 x 1.375), FUEL PUMP TO BLOCK
-
513-39107 LOCKWASHER, (.312-24), FUEL PUMP SCREWLOCKWASHER, (.312-24), FUEL PUMP SCREW
-
622-43276 ELBOW, (90 Degree), FUEL LINEELBOW, (90 Degree), FUEL LINE
-
732-147971 LINE, Fuel-PUMP TO CARBURETORLINE, Fuel-PUMP TO CARBURETOR
-
854-65653 CLIP, FUEL LINE TO ROCKER COVERCLIP, FUEL LINE TO ROCKER COVER
-
910-32079 SCREW, (.250-20 x .560), CLIP TO ROCKER COVERSCREW, (.250-20 x .560), CLIP TO ROCKER COVER
-
1022-54090 ELBOW, VENT TUBE TO CARBURETORELBOW, VENT TUBE TO CARBURETOR
-
1132-7381567 HOSE, (34.00 Inches Bulk), VENTHOSE, (34.00 Inches Bulk), VENT
-
123310-860070A2 CARBURETOR ASSEMBLY (MERCARB)CARBURETOR ASSEMBLY (MERCARB)
-
1370125A02 COVER, CHOKECOVER, CHOKE
-
1410-33047 SCREW, CHOKE COVER TO CHOKE HOUSINGSCREW, CHOKE COVER TO CHOKE HOUSING
-
1513-26995 LOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREWLOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREW
-
1654-33036 RETAINER, CHOKE COVER SCREWRETAINER, CHOKE COVER SCREW
-
17805016A1 FLAME ARRESTORFLAME ARRESTOR
-
1816-70878 STUD, (1/4 x 2.125), FLAME ARRESTOR
OLD DESIGNSTUD, (1/4 x 2.125), FLAME ARRESTOR
OLD DESIGN -
1911-8267139 NUT, FLAME ARRESTOR SCREW
OLD DESIGNNUT, FLAME ARRESTOR SCREW
OLD DESIGN -
2012-86400 WASHER, FLAME ARRESTOR STUDWASHER, FLAME ARRESTOR STUD
-
2111-826709109 NUT, (.250-28), FLAME ARRESTOR STUD (TOP)NUT, (.250-28), FLAME ARRESTOR STUD (TOP)
-
2232-807202 HOSE, VENTHOSE, VENT
-
2312-56681 WASHER, (.203 x .500 x .032), THROTTLE CABLEWASHER, (.203 x .500 x .032), THROTTLE CABLE
-
2411-8267086 NUT, (#10-32), THROTTLE CABLE TO CARBURETORNUT, (#10-32), THROTTLE CABLE TO CARBURETOR
-
2527-8079821 GASKET, CARBURETOR (MERCARB)GASKET, CARBURETOR (MERCARB)
-
2616-8M0113177 STUD, (.312 x 1.500), CARBURETORSTUD, (.312 x 1.500), CARBURETOR
-
2712-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUDWASHER, (.328 x .562 x .062), CARBURETOR STUD
-
2811-862902 NUT, (.9375-24), CARBURETOR STUDNUT, (.9375-24), CARBURETOR STUD
-
1816-18020 STUD, FLAME ARRESTOR
NEW DESIGNSTUD, FLAME ARRESTOR
NEW DESIGN -
2917878A5 COVER, Carburetor - FLAME ARRESTOR
NEW DESIGNCOVER, Carburetor - FLAME ARRESTOR
NEW DESIGN -
3037-1372350 DECAL, COVER (2.5L)
NEW DESIGNDECAL, COVER (2.5L)
NEW DESIGN -
3037-1372351 DECAL, COVER (3.0L)
NEW DESIGNDECAL, COVER (3.0L)
NEW DESIGN -
3037-1372356 DECAL, COVER (3.0L-DIGITAL IGNITION)DECAL, COVER (3.0L-DIGITAL IGNITION)
