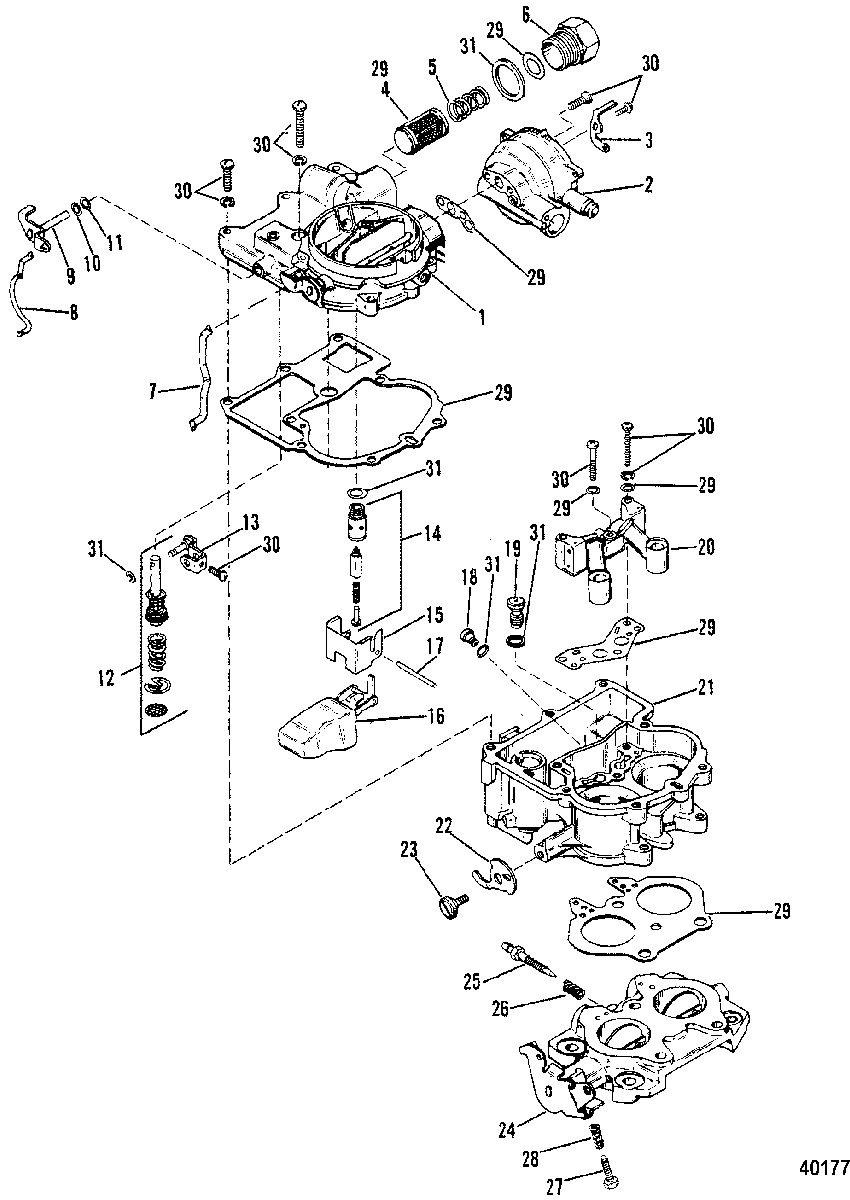

CARBURETOR(MERCARB) для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1983-1984 6218037 THRU 6916778
-
№АртикулНазвание
-
-3310-860071A2 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
1N.S.S. Not Sold Separate, AIR HORN ASSEMBLYNot Sold Separate, AIR HORN ASSEMBLY
-
2N.S.S. Not Sold Separate, CHOKE HOUSING ASSEMBLYNot Sold Separate, CHOKE HOUSING ASSEMBLY
-
33302-9037 ARM, ChokeARM, Choke
-
435-53336Q STRAINERSTRAINER
-
53302-9032 SPRING, FUEL STRAINERSPRING, FUEL STRAINER
-
63302-879194018 CONNECTOR, INLETCONNECTOR, INLET
-
73302-9042 ROD, ChokeROD, Choke
-
83302-810920 ROD, PumpROD, Pump
-
93302-823725 LEVER, ACCELERATOR PUMPLEVER, ACCELERATOR PUMP
-
103302-9039 WASHER, PUMP LEVERWASHER, PUMP LEVER
-
113302-810919 WASHER, PUMP LEVERWASHER, PUMP LEVER
-
123302-9046 PUMP KITPUMP KIT
-
133302-9036 ARM, ACCELERATOR PUMPARM, ACCELERATOR PUMP
-
143302-804689 SEAT KIT, InletSEAT KIT, Inlet
-
153302-803854 PLATE, BafflePLATE, Baffle
-
163302-9031 FLOATFLOAT
-
173302-90301 PIN, FLOATPIN, FLOAT
-
183302-9058 JET, MainJET, Main
-
193302-9059 JET POWERJET POWER
-
203302-9057 VENTURIVENTURI
-
21N.S.S. Not Sold Separate, BODY, CARBURETORNot Sold Separate, BODY, CARBURETOR
-
223302-9048 CAM, FAST IDLECAM, FAST IDLE
-
233302-9049 SHAFT, FAST IDLE CAMSHAFT, FAST IDLE CAM
-
24N.S.S. Not Sold Separate, FLANGE ASSEMBLYNot Sold Separate, FLANGE ASSEMBLY
-
253302-9052 SCREW, IDLE ADJUSTINGSCREW, IDLE ADJUSTING
-
263302-9053 SPRING, IDLE ADJUSTING SCREWSPRING, IDLE ADJUSTING SCREW
-
273302-9060 SCREW, THROTTLE ADJUSTINGSCREW, THROTTLE ADJUSTING
-
283302-9054 SPRING, THROTTLE ADJUSTING SCREWSPRING, THROTTLE ADJUSTING SCREW
-
293310-810929004 GASKET SETGASKET SET
-
303302-810930 SCREW KITSCREW KIT
-
313302-9044 PACKING SETPACKING SET
