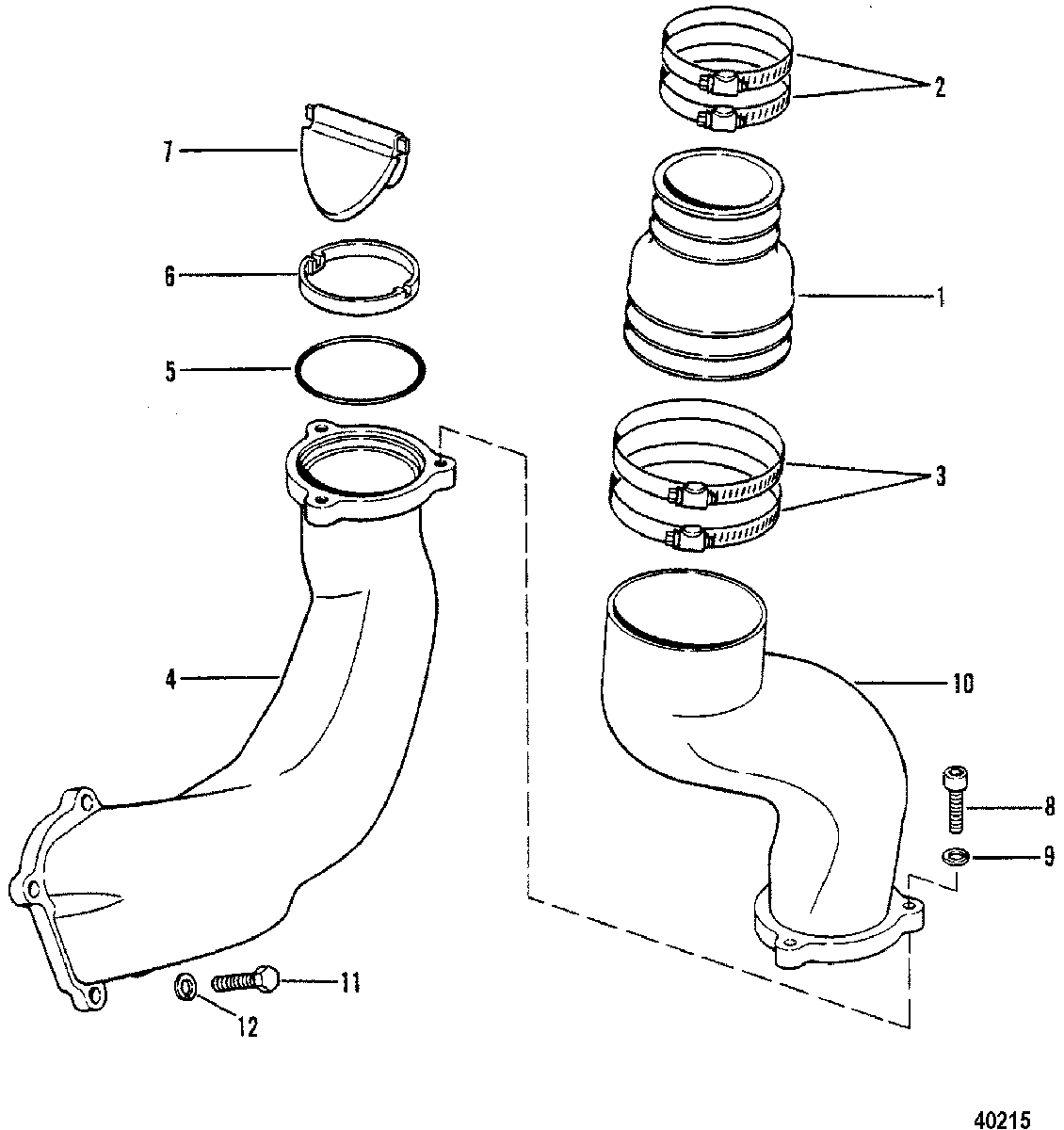

EXHAUST ELBOW, Without Exhaust Tube для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1983-1984 6218037 THRU 6916778
-
№АртикулНазвание
-
170981A3 BELLOWS ASSEMBLY, EXHAUST ELBOW TO ENGINEBELLOWS ASSEMBLY, EXHAUST ELBOW TO ENGINE
-
254-815504456 CLAMP, BELLOWS (SMALL)CLAMP, BELLOWS (SMALL)
-
354-815504372 CLAMP, BELLOWS (LARGE)CLAMP, BELLOWS (LARGE)
-
442421A13 PIPE ASSEMBLY, Exhaust, LOWERPIPE ASSEMBLY, Exhaust, LOWER
-
525-35029 O-RING, 78.97 X 3.53 MM, EXHAUST ELBOWO-RING, 78.97 X 3.53 MM, EXHAUST ELBOW
-
660931 RETAINER, WATER SHUTTERRETAINER, WATER SHUTTER
-
760930 SHUTTER, WaterSHUTTER, Water
-
810-8M0113174 SCREW, (.375-16 x 1.25), PIPE TO ELBOWSCREW, (.375-16 x 1.25), PIPE TO ELBOW
-
913-41471 LOCKWASHER, (.375), PIPE SCREWLOCKWASHER, (.375), PIPE SCREW
-
1042421A14 ELBOW ASSEMBLY, Exhaust, UPPERELBOW ASSEMBLY, Exhaust, UPPER
-
1110-8M0113174 SCREW, (.375-16 x 1.25), ELBOW TO GIMBAL HOUSINGSCREW, (.375-16 x 1.25), ELBOW TO GIMBAL HOUSING
-
1213-41471 LOCKWASHER, (.375), ELBOW SCREWLOCKWASHER, (.375), ELBOW SCREW
