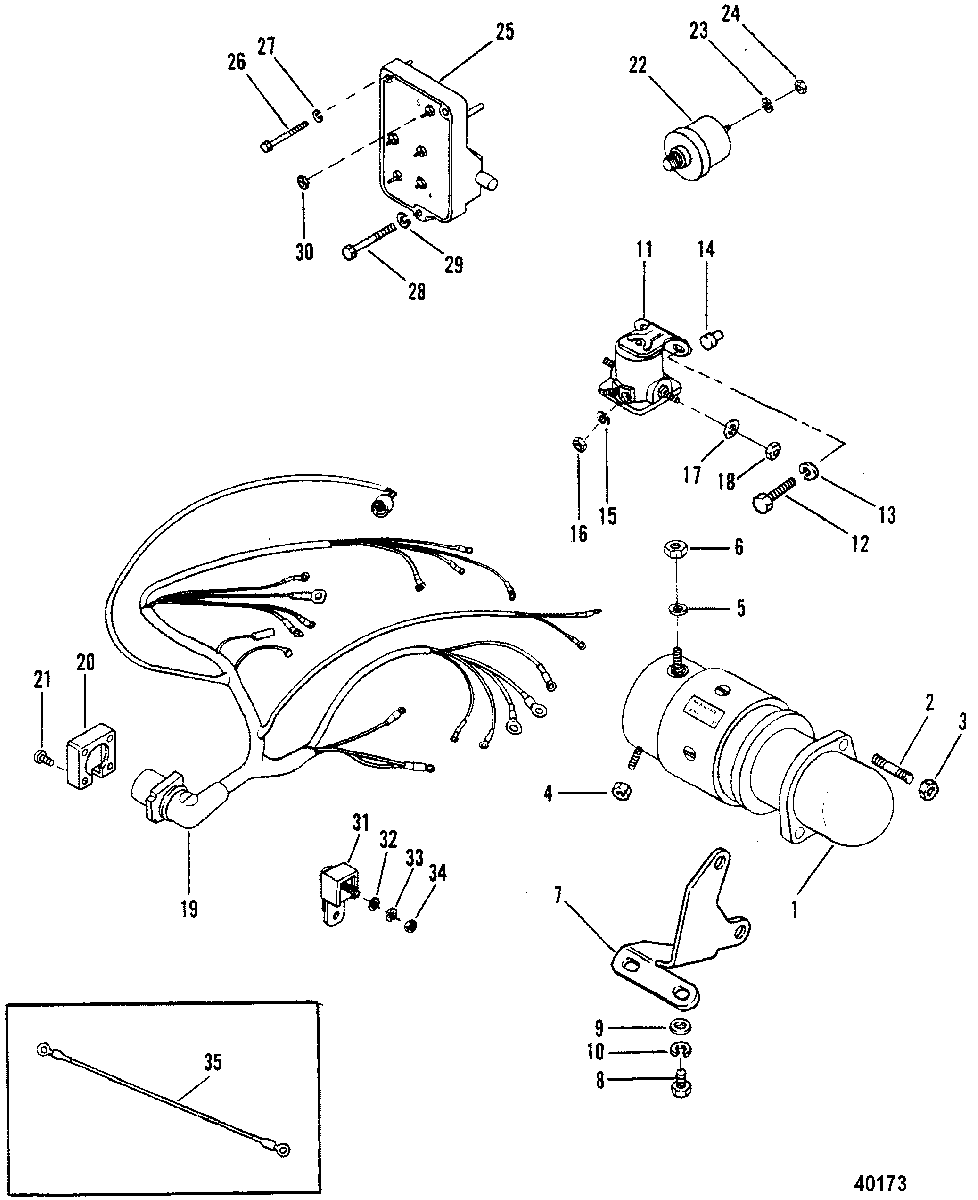

STARTER MOTOR AND WIRING HARNESS для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1983-1984 6218037 THRU 6916778
-
№АртикулНазвание
-
150-97499R3 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
216-97256 STUD, STARTER MOTOR TO CYLINDER BLOCKSTUD, STARTER MOTOR TO CYLINDER BLOCK
-
311-34933 NUT, (.437-20) Stainless Steel, STARTER MOTOR STUDNUT, (.437-20) Stainless Steel, STARTER MOTOR STUD
-
411-8267088 NUT, (.250-20), STARTER MOTOR STUDNUT, (.250-20), STARTER MOTOR STUD
-
513-26995 LOCKWASHER, (#8) Stainless Steel, STARTER MOTOR TERMINALLOCKWASHER, (#8) Stainless Steel, STARTER MOTOR TERMINAL
-
611-26419 NUT, (#8-32) Brass, STARTER MOTOR TERMINALNUT, (#8-32) Brass, STARTER MOTOR TERMINAL
-
797259A1 BRACKET, STARTER MOTOR TO CYLINDER BLOCKBRACKET, STARTER MOTOR TO CYLINDER BLOCK
-
810-98261 SCREW, (.375-16 x .75), BRACKET TO CYLINDER BLOCKSCREW, (.375-16 x .75), BRACKET TO CYLINDER BLOCK
-
912-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1013-35048 LOCKWASHER, (.375), BRACKET SCREWLOCKWASHER, (.375), BRACKET SCREW
-
1165057T1 SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
1210-28635 SCREW, (.250-20 x .620) Stainless Steel, SOLENOID TO CYLINDER BLOCKSCREW, (.250-20 x .620) Stainless Steel, SOLENOID TO CYLINDER BLOCK
-
1313-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREWLOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
-
14269011 BUMPER, SOLENOIDBUMPER, SOLENOID
-
1513-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
-
1611-68219 NUT, (#10-32) Stainless Steel, SOLENOID TERMINALNUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
-
1713-26993 LOCKWASHER, (.312), SOLENOID TERMINALLOCKWASHER, (.312), SOLENOID TERMINAL
-
1811-22053 NUT, (5/16-24)NUT, (5/16-24)
-
1984-98269A9 HARNESS ASSEMBLY (USE WITH 90 AMP FUSE)HARNESS ASSEMBLY (USE WITH 90 AMP FUSE)
-
1984-98269A9 HARNESS ASSEMBLY (USE WITHOUT 90 AMP FUSE)HARNESS ASSEMBLY (USE WITHOUT 90 AMP FUSE)
-
2026079A2 PLATE, HARNESS ATTACHINGPLATE, HARNESS ATTACHING
-
2110-34696 SCREW, (#8-32 x .750), PLATE TO BRACKETSCREW, (#8-32 x .750), PLATE TO BRACKET
-
228M0068784 SENDER, OIL PRESSURESENDER, OIL PRESSURE
-
2313-26996 LOCKWASHER, (#10) Stainless Steel, SENDING UNIT TERMINALLOCKWASHER, (#10) Stainless Steel, SENDING UNIT TERMINAL
-
2411-68219 NUT, (#10-32) Stainless Steel, SENDING UNIT TERMINALNUT, (#10-32) Stainless Steel, SENDING UNIT TERMINAL
-
2599502A13 REGULATOR ASSEMBLY, VoltageREGULATOR ASSEMBLY, Voltage
-
2610-98255 SCREW, (.250-20 x 2.25) , VOLATAGE REGULATORSCREW, (.250-20 x 2.25) , VOLATAGE REGULATOR
-
2713-26992 LOCKWASHER, (.250) Stainless Steel, VOLATAGE REGULATOR SCREWLOCKWASHER, (.250) Stainless Steel, VOLATAGE REGULATOR SCREW
-
2810-34354 SCREW, (.375-16 x 1.50), VOLTAGE REGULATORSCREW, (.375-16 x 1.50), VOLTAGE REGULATOR
-
2913-58643 LOCKWASHER, (.375), VOLTAGE REGULATOR SCREWLOCKWASHER, (.375), VOLTAGE REGULATOR SCREW
-
3011-68219 NUT, (#10-32) Stainless Steel, VOLTAGE REGULATOR TERMINALSNUT, (#10-32) Stainless Steel, VOLTAGE REGULATOR TERMINALS
-
3188-79023A91 FUSE ASSEMBLY, 90 Ampere
Not Used on Later EnginesFUSE ASSEMBLY, 90 Ampere
Not Used on Later Engines -
3212-96457 WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
Not Used on Later EnginesWASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
Not Used on Later Engines -
3313-26992 LOCKWASHER, (.250) Stainless Steel, FUSE TERMINAL
Not Used on Later EnginesLOCKWASHER, (.250) Stainless Steel, FUSE TERMINAL
Not Used on Later Engines -
3411-21825 NUT, (.250-28), FUSE TERMINAL
Not Used on Later EnginesNUT, (.250-28), FUSE TERMINAL
Not Used on Later Engines -
3584-94227A2 RESISTOR WIRE KIT (TO REPLACE RESISTOR WIRE)RESISTOR WIRE KIT (TO REPLACE RESISTOR WIRE)
