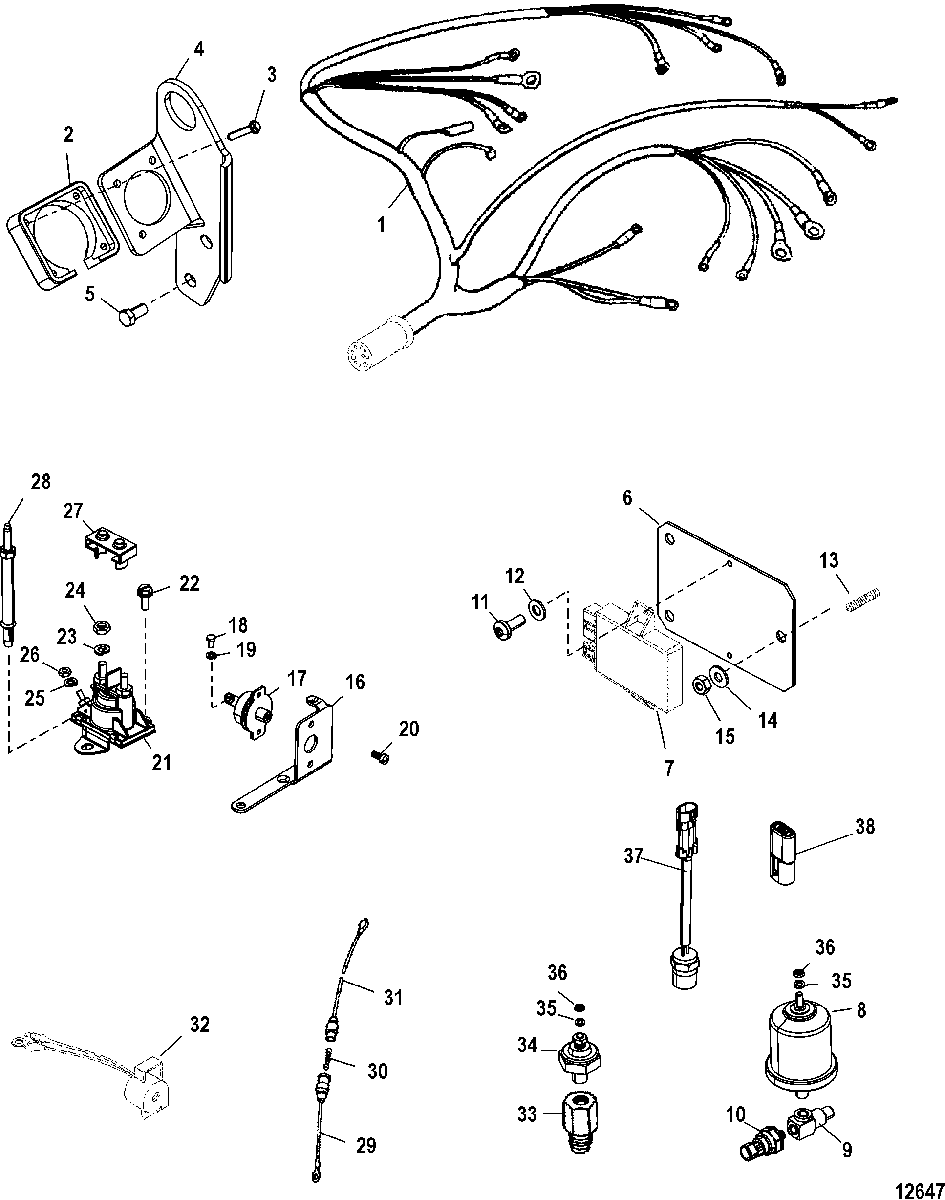

Electrical Components для Mercruiser - 4.3L CARB ALPHA/BRAVO 0W300013 THRU 0W309999
-
№АртикулНазвание
-
184-862163T04 HARNESS ASSEMBLY, WiringHARNESS ASSEMBLY, Wiring
-
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4865480T BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
6861516 BRACKETBRACKET
-
7861251T1 ICM MODULE, Ignition Control Module
(Alpha)ICM MODULE, Ignition Control Module
(Alpha) -
7861252T1 ICM MODULE, Ignition Control Module
(Bravo)ICM MODULE, Ignition Control Module
(Bravo) -
88M0068784 SENDER ASSEMBLY, OilSENDER ASSEMBLY, Oil
-
837293T SENDER ASSEMBLY, Oil
(Dual Station)SENDER ASSEMBLY, Oil
(Dual Station) -
922-864669 FITTINGFITTING
-
1087-8M0070108 SWITCHSWITCH
-
1110-861520 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
1212-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1310-24323 SET SCREW, (.250-20 x 1.25)SET SCREW, (.250-20 x 1.25)
-
1412-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1511-64015 NUT, (.250-20)NUT, (.250-20)
-
16899719T01 BRACKET, Electrical, MountingBRACKET, Electrical, Mounting
-
1788-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1810-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
1913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2010-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
2189-96158T SOLENOID, StarterSOLENOID, Starter
-
2210-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2513-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2611-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
2785-97861 INSULATOR, Starter SolenoidINSULATOR, Starter Solenoid
-
2816-805459 STUD, Mercathode MountingSTUD, Mercathode Mounting
-
2984-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo)CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo) -
3088-79091 FUSE, 20 Ampere
(Bravo)FUSE, 20 Ampere
(Bravo) -
3184-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo)CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo) -
32816492A6 ALARM KITALARM KIT
-
3322-32974 FITTING, (.125-27) AdaptorFITTING, (.125-27) Adaptor
-
3487-805605A1 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
3513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
3611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
3787-866089 THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key StartTHERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start
-
3883-865913A01 DIODE ASSEMBLYDIODE ASSEMBLY
