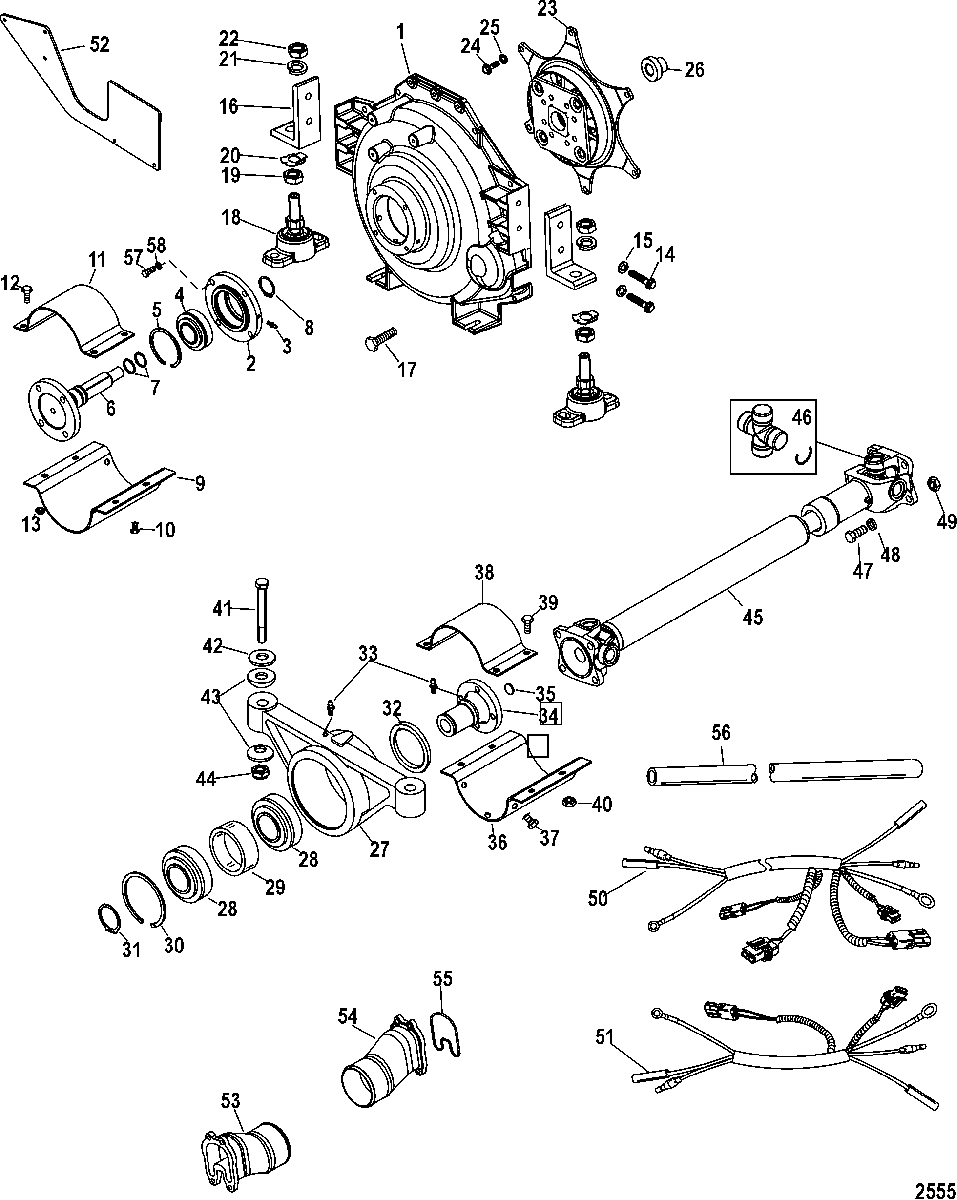

Jackshaft Components для Mercruiser - 4.3L CARB ALPHA/BRAVO 0W300013 THRU 0W309999
-
№АртикулНазвание
-
1862737 HOUSING, FlywheelHOUSING, Flywheel
-
2862833 BEARING, AdaptorBEARING, Adaptor
-
322-74036 FITTING, GreaseFITTING, Grease
-
430-879194A03 BEARING, BallBEARING, Ball
-
553-94104 RING, RetainingRING, Retaining
-
725-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
853-8M0141818 RING, RetainingRING, Retaining
-
993918A1 SHIELD, Lower, LowerSHIELD, Lower, Lower
-
1010-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
1193919A1 SHIELD, Upper, UpperSHIELD, Upper, Upper
-
1210-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
1311-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
1410-47651 SCREW, (.437-14 x 1.50)SCREW, (.437-14 x 1.50)
-
1513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
16862738 BRACKET, Flywheel HousingBRACKET, Flywheel Housing
-
1710-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1710-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1710-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
1866284A2 BASE ASSEMBLY, Mount AssemblyBASE ASSEMBLY, Mount Assembly
-
1911-816331 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2014-12657 TAB WASHER, TabTAB WASHER, Tab
-
2113-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
2211-859126 NUT, (.750-16)NUT, (.750-16)
-
23862838 DRIVEPLATE ASSEMBLYDRIVEPLATE ASSEMBLY
-
2410-14883 SCREW, (.375-16 x 1.12)SCREW, (.375-16 x 1.12)
-
2512-20572 WASHER, (.390 x .750 x .093)WASHER, (.390 x .750 x .093)
-
2623-862834 BUSHING, PilotBUSHING, Pilot
-
27817416A4 HOUSING ASSEMBLY, BearingHOUSING ASSEMBLY, Bearing
-
2830-93944A2 BEARING SET, BallBEARING SET, Ball
-
2923-817417T SPACERSPACER
-
3053-93914 RING, RetainingRING, Retaining
-
3153-93915 RING, RetainingRING, Retaining
-
3226-93924 SEAL, OilSEAL, Oil
-
3322-74036 FITTING, GreaseFITTING, Grease
-
34NSS NOT SOLD SEPARATE, Shaft-InputNOT SOLD SEPARATE, Shaft-Input
-
3519-93921 EXPANSION PLUGEXPANSION PLUG
-
3693918A1 SHIELD, Lower, LowerSHIELD, Lower, Lower
-
3710-76926 SCREW, (.375-16 x .875)SCREW, (.375-16 x .875)
-
3893919A1 SHIELD, Upper, UpperSHIELD, Upper, Upper
-
3910-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
4011-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
4110-57053 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
4212-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
4312-42307 WASHER, SphericalWASHER, Spherical
-
4411-898832 NUT, (.500-20)NUT, (.500-20)
-
4545-94819T5 DRIVESHAFT ASSEMBLY, (34.50 Inches)DRIVESHAFT ASSEMBLY, (34.50 Inches)
-
4661221T CROSS AND BEARING, With ClipsCROSS AND BEARING, With Clips
-
4710-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
48NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
4911-82670815 NUT, (.437-20)NUT, (.437-20)
-
5084-41575A10 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
5184-41575A11 HARNESS ASSEMBLY, ExtensionHARNESS ASSEMBLY, Extension
-
52863180 BRACKETBRACKET
-
53862268T1 TUBE, ExhaustTUBE, Exhaust
-
54862268T2 TUBE, ExhaustTUBE, Exhaust
-
5541802 SEAL, Rubber, ExhaustSEAL, Rubber, Exhaust
-
5632-8M0062666 HOSE, (96.00 Inches Bulk), Water InletHOSE, (96.00 Inches Bulk), Water Inlet
-
5710-14883 SCREW, (.375-16 x 1.12)SCREW, (.375-16 x 1.12)
-
5813-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
