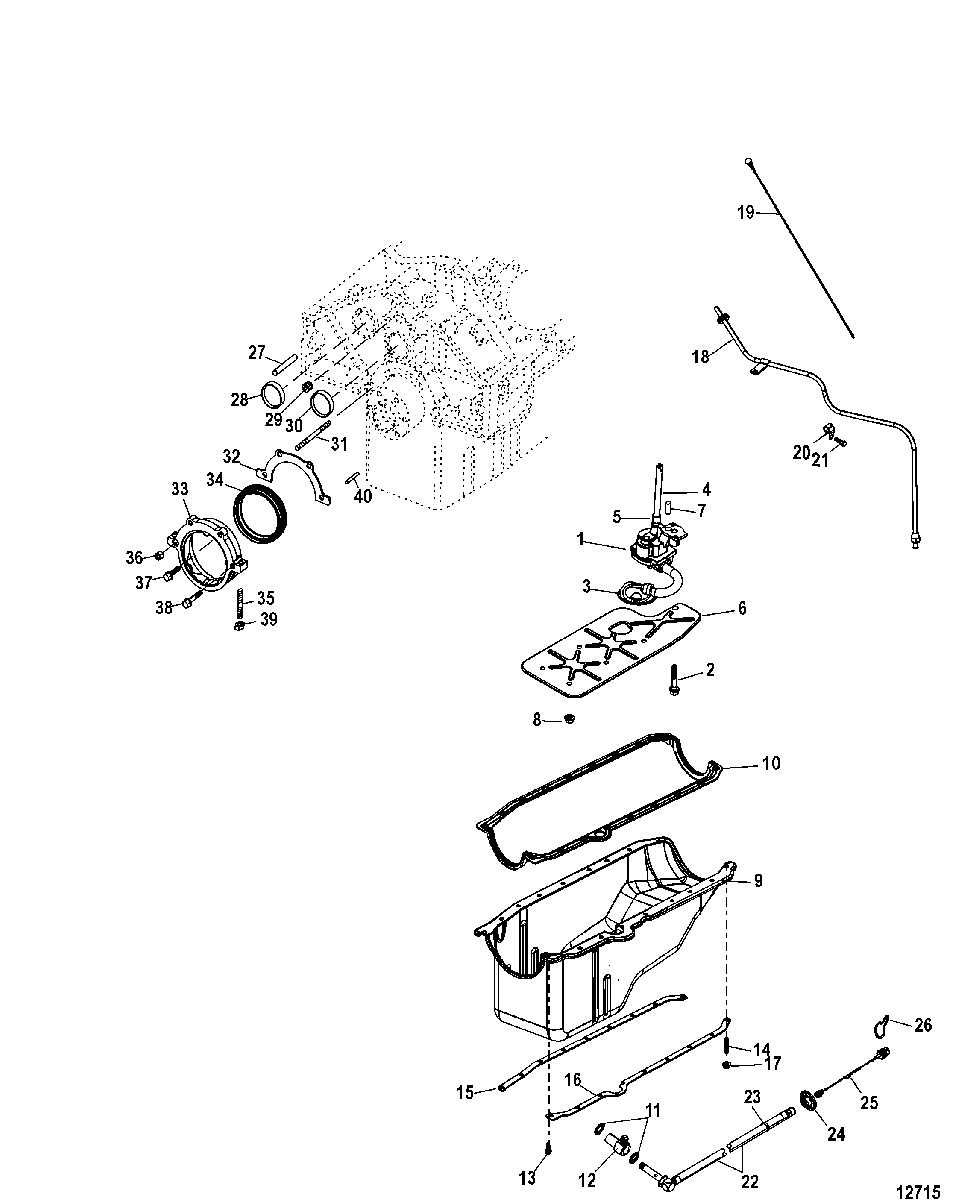

Oil Pan, Oil Pump and Rear Oil Seal для Mercruiser - 4.3L CARB ALPHA/BRAVO 0W300013 THRU 0W309999
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLYPUMP ASSEMBLY
-
210-17346 SCREW, Oil PumpSCREW, Oil Pump
-
38099081 SCREEN, Oil Pump Pick-UpSCREEN, Oil Pump Pick-Up
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6NSS NOT SOLD SEPARATE, Oil Deflector Included with PanNOT SOLD SEPARATE, Oil Deflector Included with Pan
-
717-843378 PIN, Dowel (1/4 In. Diameter), Alignment,Oil PumpPIN, Dowel (1/4 In. Diameter), Alignment,Oil Pump
-
811-845602 NUT, (.375-16)NUT, (.375-16)
-
9804912T01 PAN, OilPAN, Oil
-
1027-14247T1 GASKET SET, Oil PanGASKET SET, Oil Pan
-
1127-8M0077608 GASKET, Drain ScrewGASKET, Drain Screw
-
1222-862813 FITTING, TeeFITTING, Tee
-
1310-726071 SCREW, (5/16-18x x .875)SCREW, (5/16-18x x .875)
-
1416-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1514257 REINFORCEMENT
(Port)REINFORCEMENT
(Port) -
1614256 REINFORCEMENT
(Starboard)REINFORCEMENT
(Starboard) -
1711-11971 NUT, (.312-18)NUT, (.312-18)
-
18865178 TUBE, Dipstick-Standard CoolingTUBE, Dipstick-Standard Cooling
-
18864928A1 TUBE, Dipstick-Closed CoolingTUBE, Dipstick-Closed Cooling
-
1986194216 DIPSTICK, Standard CoolingDIPSTICK, Standard Cooling
-
1986194214 DIPSTICK, Closed CoolingDIPSTICK, Closed Cooling
-
2054-8054441 CLIP, Dipsitck TubeCLIP, Dipsitck Tube
-
2110-8M0040582 SCREWSCREW
-
2232-865278 HOSE, Oil DrainHOSE, Oil Drain
-
2232-865279 HOSE, Oil Drain (Jackshaft Models)HOSE, Oil Drain (Jackshaft Models)
-
2354-863481 CLAMP, Ty StrapCLAMP, Ty Strap
-
24862777 FLANGE, DrainFLANGE, Drain
-
25862827 TETHER ASSEMBLYTETHER ASSEMBLY
-
2654-805524 CLIPCLIP
-
2717-43504 PIN, Dowel, Flywheel Housing LocationPIN, Dowel, Flywheel Housing Location
-
2819-34270 EXPANSION PLUG, (1.625), Engine Core HoleEXPANSION PLUG, (1.625), Engine Core Hole
-
2922-12524 PLUG, (.375), Oil GalleyPLUG, (.375), Oil Galley
-
3022-72640 PLUG, Camshaft Bearing HolePLUG, Camshaft Bearing Hole
-
3116-148271 STUDSTUD
-
3227-881715 GASKET, Crankshaft Oil Seal HousingGASKET, Crankshaft Oil Seal Housing
-
33804910001 RETAINER, Crankshaft Oil SealRETAINER, Crankshaft Oil Seal
-
3426-879194364 SEAL, Crankshaft OilSEAL, Crankshaft Oil
-
3516-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
3611-8M0098315 NUTNUT
-
3710-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
3810-8M0064241 BOLT, (.250-20 x 1.750)BOLT, (.250-20 x 1.750)
-
3911-11971 NUT, (.312-18)NUT, (.312-18)
-
4017-14263 PIN, Dowel, Oil Seal Housing LocationPIN, Dowel, Oil Seal Housing Location
-
-27-824326A02 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
-
-864256A1 LONGBLOCK ASSEMBLY (4.3L)LONGBLOCK ASSEMBLY (4.3L)
