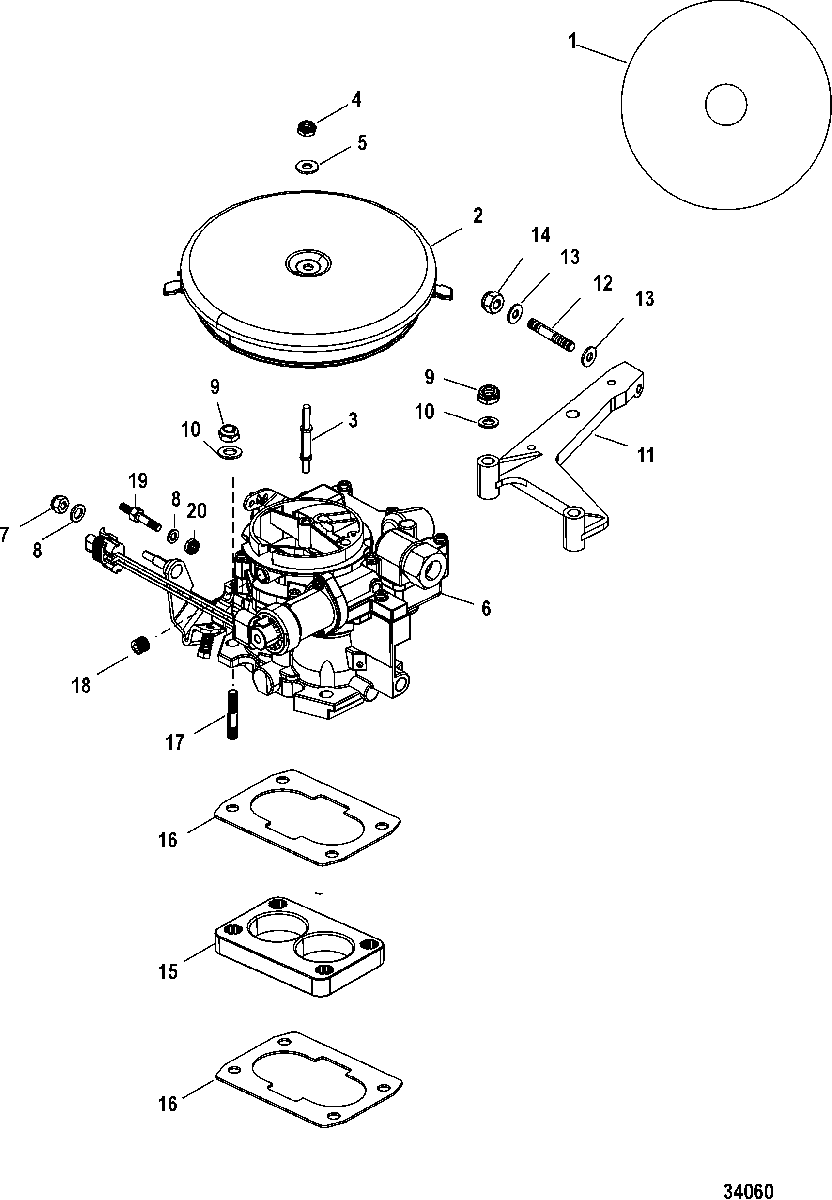

Carburetor and Throttle Linkage для Mercruiser - 4.3L CARB ALPHA/BRAVO 1A063240 & Up
-
№АртикулНазвание
-
137-8M2018265 DECAL, Carburetor CoverDECAL, Carburetor Cover
-
2863200 FLAME ARRESTORFLAME ARRESTOR
-
316-8M0113181 STUD, (.250-20/.250-28 x Special)STUD, (.250-20/.250-28 x Special)
-
411-8267139 NUT, (.250-28)NUT, (.250-28)
-
512-86400 WASHERWASHER
-
63310-8M0084194 CARBURETORCARBURETOR
-
711-8267089 NUT, (.250-28)NUT, (.250-28)
-
812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
911-862902 NUT, (.312-24)NUT, (.312-24)
-
1012-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
1012-26825 WASHER, (.328 x .750 x .06)WASHER, (.328 x .750 x .06)
-
11805489T BRACKETBRACKET
-
1216-38525 STUDSTUD
-
1312-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
1411-8267139 NUT, (.250-28)NUT, (.250-28)
-
15807726A2 ADAPTORADAPTOR
-
1627-866027 GASKETGASKET
-
1716-807849 STUD, (.312-18/.312-24 x 3.380)STUD, (.312-18/.312-24 x 3.380)
-
1716-65868 STUD, (.312-18/.312-24 x 2.120)STUD, (.312-18/.312-24 x 2.120)
-
1822-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
1916-8M0113178 STUD, (.250-28 x 2.00)STUD, (.250-28 x 2.00)
-
2011-8267139 NUT, (.250-28)NUT, (.250-28)
