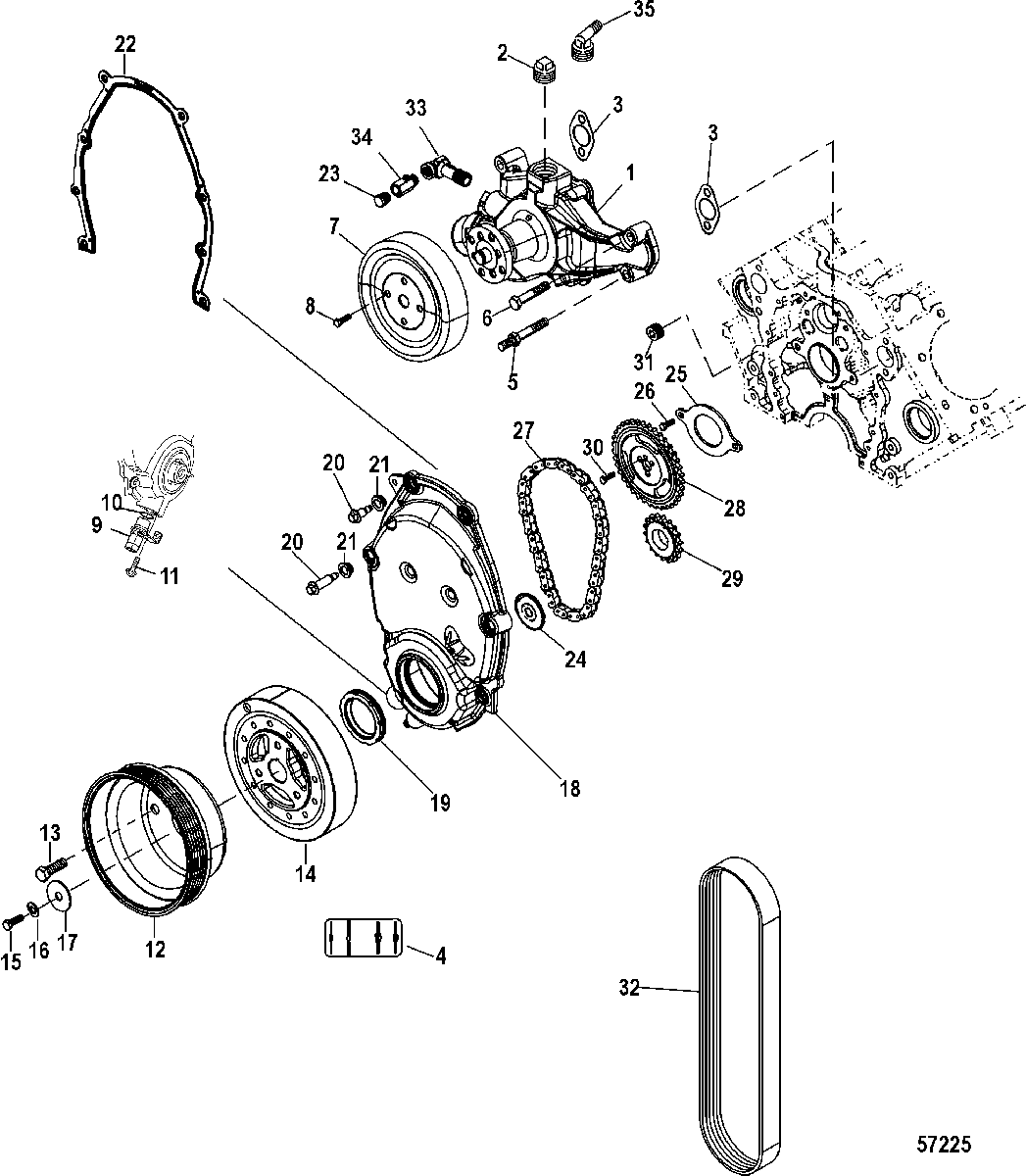

Front Cover and Circulating Pump для Mercruiser - 4.3L CARB ALPHA/BRAVO 1A063240 & Up
-
№АртикулНазвание
-
146-8M6005225 PUMP ASSEMBLYPUMP ASSEMBLY
-
222-428611 PLUG, Pipe
(Standard Cooling)PLUG, Pipe
(Standard Cooling) -
327-879194367 GASKET, Water PumpGASKET, Water Pump
-
437-8M0071530 DECAL, TimingDECAL, Timing
-
516-8M0076418 STUD, (.312-24/.375-16 x 2.5625)STUD, (.312-24/.375-16 x 2.5625)
-
610-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
610-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
7807729T PULLEYPULLEY
-
810-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
9879194363 SENSOR ASSEMBLY, Crankshaft PositionSENSOR ASSEMBLY, Crankshaft Position
-
1025-885192 O-RINGO-RING
-
1110-884018001 SCREWSCREW
-
12807730T PULLEY, CrankshaftPULLEY, Crankshaft
-
1310-34352 SCREW, (.375-24 x .875)SCREW, (.375-24 x .875)
-
14888776T HARMONIC BALANCERHARMONIC BALANCER
-
1510-8M2021674 SCREW, (.437-20 x 2.50)SCREW, (.437-20 x 2.50)
-
1613-39131 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1712-71458 WASHERWASHER
-
18879194362 COVER ASSEMBLY, TimingCOVER ASSEMBLY, Timing
-
1926-8M0071242 SEAL
OilSEAL
Oil -
2010-879194369 BOLT, Timing CoverBOLT, Timing Cover
-
2126-888782 GROMMET, Timing CoverGROMMET, Timing Cover
-
2227-8M0069696 GASKETGASKET
-
2322-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
24879194344 RELUCTOR WHEELRELUCTOR WHEEL
-
25824333 RETAINER, CamshaftRETAINER, Camshaft
-
2610-824334 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
278M0050619 TIMING CHAIN SET, Chain and SprocketsTIMING CHAIN SET, Chain and Sprockets
-
28NSS NOT SOLD SEPARATE, Camshaft SprocketNOT SOLD SEPARATE, Camshaft Sprocket
-
29NSS NOT SOLD SEPARATE, Crankshaft SprocketNOT SOLD SEPARATE, Crankshaft Sprocket
-
3010-824329 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
3119-816565 PLUG, Cup (.468), PipePLUG, Cup (.468), Pipe
-
3257-865615Q04 BELT
(Alpha) (Power Steering)BELT
(Alpha) (Power Steering) -
3257-865615Q09 BELT
(Alpha) (Compact Hydraulic Steering)BELT
(Alpha) (Compact Hydraulic Steering) -
3257-865615Q03 BELT
(Bravo) (Power Steering)(Alpha FWC)BELT
(Bravo) (Power Steering)(Alpha FWC) -
3257-865615Q08 BELT
(Bravo) (Compact Hydraulic Steering)BELT
(Bravo) (Compact Hydraulic Steering) -
3322-865526 FITTINGFITTING
-
3420-865525 VALVEVALVE
-
3522-860346 FITTING, Elbow (90 Degree) (.750)
Closed CoolingFITTING, Elbow (90 Degree) (.750)
Closed Cooling -
-27-824326A03 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
-
-879150A31 LONG BLOCK (4.3L)LONG BLOCK (4.3L)
