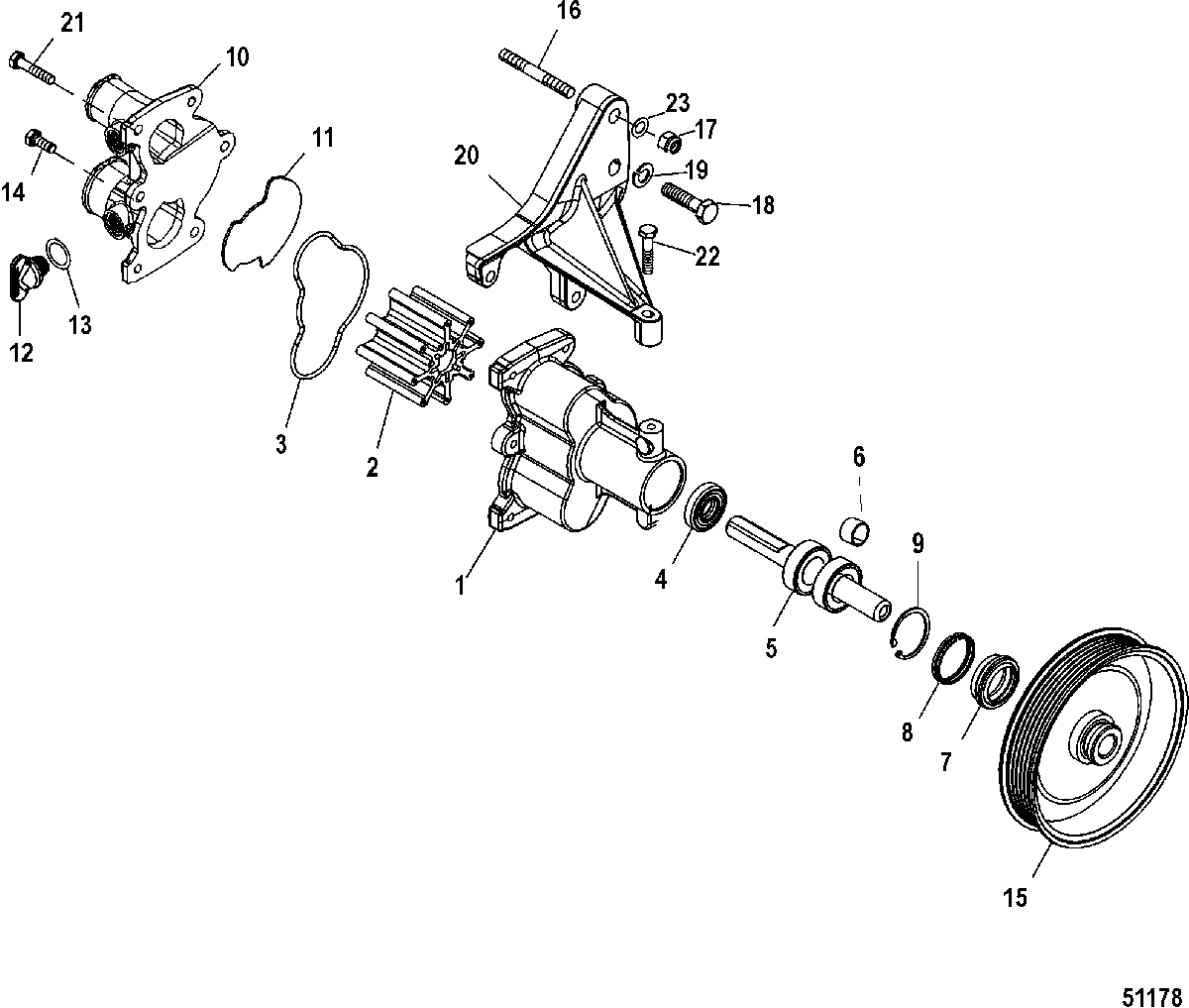

Sea Water Pump Assembly(Bravo Standard) 1A300000 and Up для Mercruiser - 4.3L CARB ALPHA/BRAVO 1A063240 & Up
-
№АртикулНазвание
-
-46-8M0137216 PUMP KIT, Sea WaterPUMP KIT, Sea Water
-
18M0118062 HOUSING ASSEMBLY, ImpellerHOUSING ASSEMBLY, Impeller
-
247-8M0104229 IMPELLERIMPELLER
-
38M2021987 O-RING, Formed (Also included with Reference 8)O-RING, Formed (Also included with Reference 8)
-
-8M0050018 DRIVESHAFT ASSEMBLY KITDRIVESHAFT ASSEMBLY KIT
-
426-8M2001645 SEAL, OilSEAL, Oil
-
58M0050018 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
6NSS NOT SOLD SEPARATE, SPACER
SN# 1A623371 & UpNOT SOLD SEPARATE, SPACER
SN# 1A623371 & Up -
726-862040 SEAL, LipSEAL, Lip
-
8862039 TOLERANCE RING
SN# 1A623370 & BelowTOLERANCE RING
SN# 1A623370 & Below -
9NSS NOT SOLD SEPARATE, SNAP RING
SN# 1A623371 & UpNOT SOLD SEPARATE, SNAP RING
SN# 1A623371 & Up -
10862776A01 COVER KIT, Impeller HousingCOVER KIT, Impeller Housing
-
118M2014176 PLATE, WearPLATE, Wear
-
1222-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
1325-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
1410-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
15862351T PULLEYPULLEY
-
1616-863853 STUDSTUD
-
1711-82671112 NUT, (.375-16)NUT, (.375-16)
-
1810-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
1913-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
20865143T01 BRACKET, Sea Water PumpBRACKET, Sea Water Pump
-
2110-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2210-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2312-38622 WASHER, (.391 x 1.00 x .125)WASHER, (.391 x 1.00 x .125)
